Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+12K

Description

This comprehensive HVAC bundle features essential components designed for efficient climate control in residential and commercial spaces. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone, providing powerful heating and cooling capabilities across multiple zones. Paired with the PEAD-AA09NL and PEAD-AA12NL concealed duct indoor units, this bundle ensures quiet operation and aesthetic appeal while delivering optimal comfort. The PAC-LMA30BC branch box enhances system flexibility by connecting multiple indoor units, ensuring balanced refrigerant distribution and precise temperature management. Together, these products create a cohesive and efficient HVAC solution tailored for diverse applications.

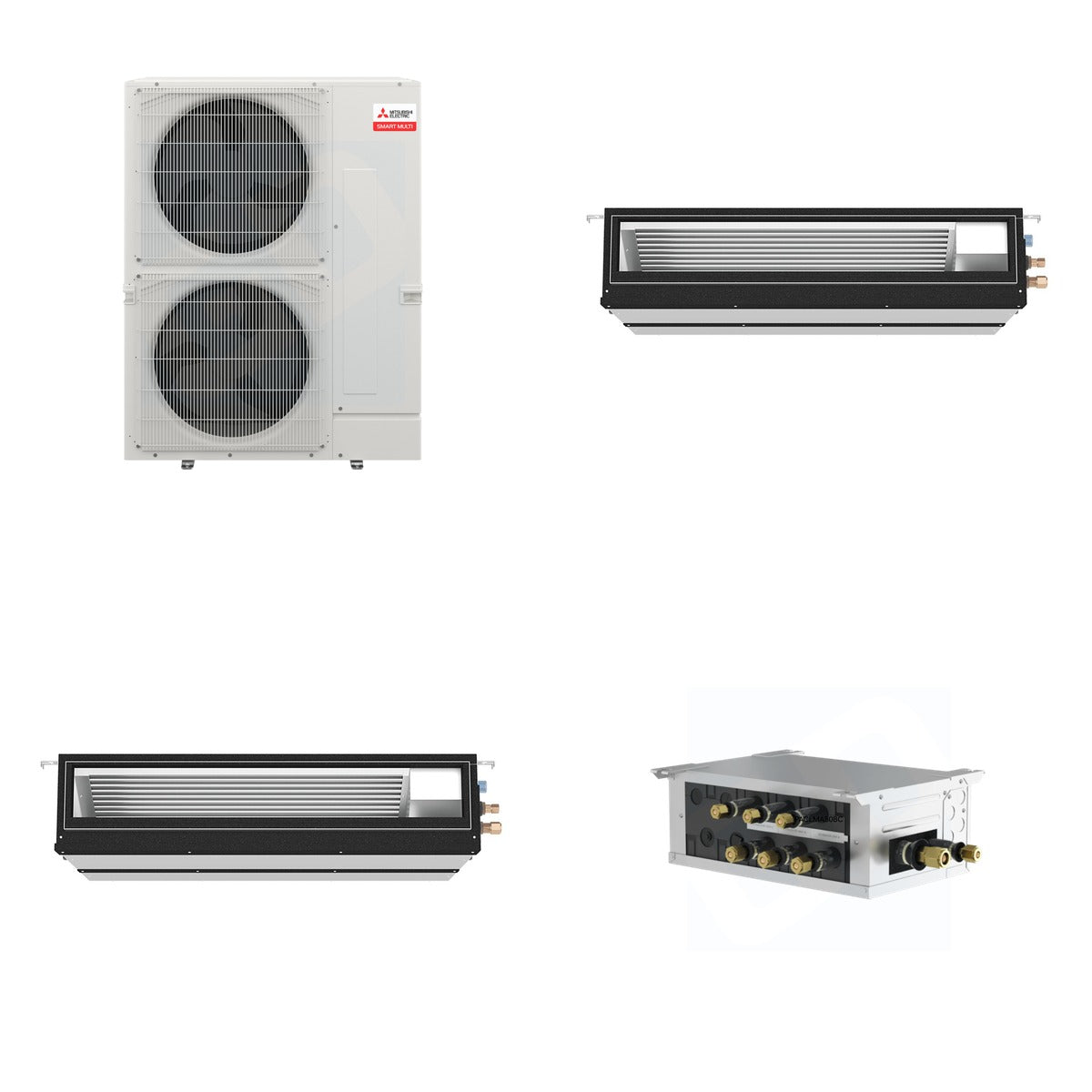

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA12NL - Mitsubishi Electric PEAD-AA12NL R454B: 12k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 273 lb (Mitsubishi 161 lb + Mitsubishi 49 lb + Mitsubishi 58 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Cooling Capacities: 9,000 BTU (PEAD-AA09NL), 12,400 BTU (PEAD-AA12NL)
• Refrigerant Type: R454B
• SEER2 Rating: 23 (MXZ-SM36NL)
• Voltage: 208/230V
• Dimensions (Condenser): 41-11/32 W x 13 D x 52-11/16 H
• Indoor Unit Dimensions: 35 7/16 W x 28 7/8 D x 9 7/8 H (PEAD-AA09NL), 35 7/16 W x 28 7/8 D x 9 7/8 H (PEAD-AA12NL)
• Branch Box Dimensions: 17 3/4 W x 11 1/16 D x 6 3/4 H

Use & Compatibility

This bundle is ideal for both residential and commercial applications, providing versatile heating and cooling solutions. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, allowing for extensive customization and control over indoor climates. The concealed duct units are designed for aesthetic installations, ensuring quiet operation while effectively managing temperature across multiple zones.
