Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 18K+24K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone climate control system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, delivering up to 36,000 BTUs of heating and cooling capacity. Paired with the PEAD-AA18NL and PEAD-AA24NL concealed ducted indoor units, this setup ensures unobtrusive installation and optimal airflow across various spaces. The included PAC-LMA30BC branch box facilitates seamless connections between the outdoor condenser and multiple indoor units, allowing for precise temperature management in both residential and light commercial applications. Together, these components provide a robust solution for customizable comfort in any environment.

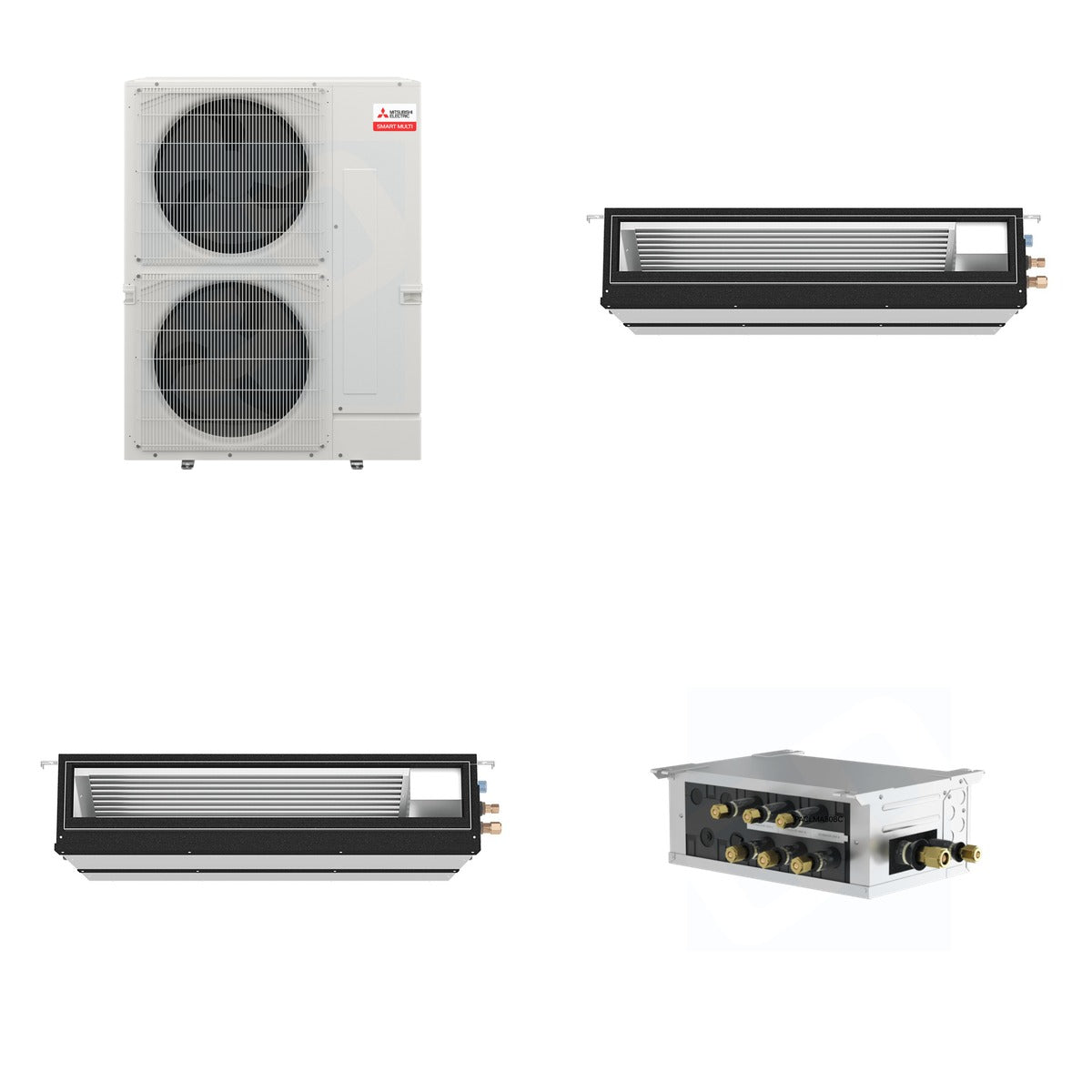

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA18NL - Mitsubishi Electric PEAD-AA18NL R454B: 18k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 300 lb (Mitsubishi 161 lb + Mitsubishi 67 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 18,000 BTU (PEAD-AA18NL), 24,000 BTU (PEAD-AA24NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 20,000 BTU (PEAD-AA18NL), 22,000 BTU (PEAD-AA24NL)
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL), 43-5/16 W x 28-7/8 D x 9-7/8 H (PEAD-AA24NL)
• Number of Zones: Up to 4 with branch box, 11 without (MXZ-SM36NL)
• Airflow: 600 CFM to 900 CFM (PEAD-AA18NL)

Use & Compatibility

This bundle is designed for residential and light commercial HVAC systems, providing efficient heating and cooling through multi-zone setups. The components are compatible with Mitsubishi Electric's M-, P-Series, and CITY MULTI indoor units, ensuring versatile installation options for various spaces.
