Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 15K+30K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, providing up to 36,000 BTUs of cooling and heating capacity. Paired with the PEAD-AA15NL and PEAD-AA30NL ducted indoor units, this setup allows for discreet climate control in various spaces, ensuring comfort without compromising aesthetics. The PAC-LMA30BC branch box optimizes refrigerant distribution among the indoor units, enhancing system performance. Together, these products deliver a tailored solution for both residential and light commercial applications.

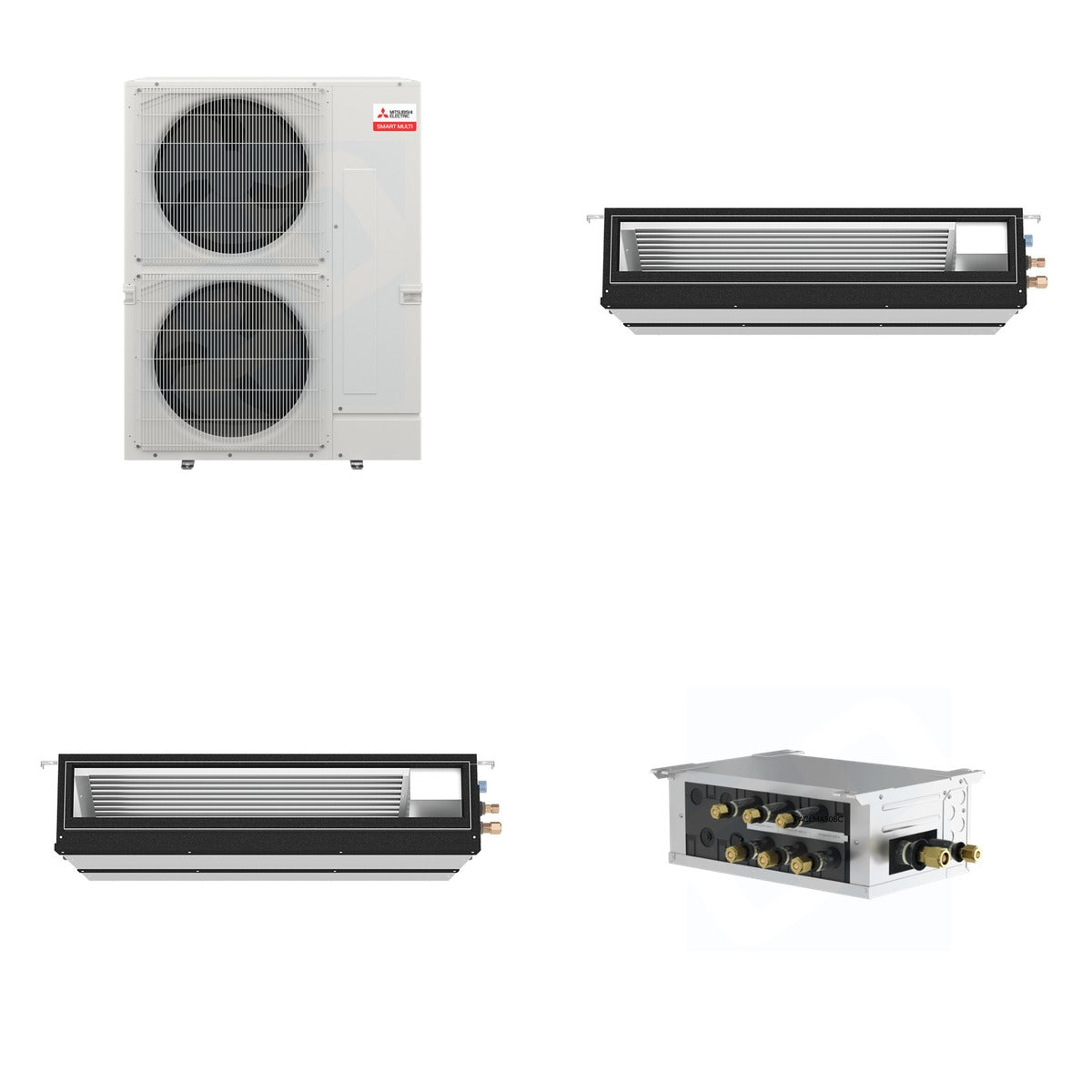

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA30NL - Mid-Static Horizontal Ducted Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 291 lb (Mitsubishi 161 lb + Mitsubishi 58 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 15,000 BTU (PEAD-AA15NL), 30,000 BTU (PEAD-AA30NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 18,000 BTU (PEAD-AA15NL), 33,000 BTU (PEAD-AA30NL)
• SEER2: 23 (MXZ-SM36NL), 18.0 (PEAD-AA30NL)
• Refrigerant Type: R454B for all units
• Voltage: 208/230V
• Dimensions: MXZ-SM36NL (41-11/32" W x 13" D x 52-11/16" H), PEAD-AA15NL (35-7/16" W x 28-7/8" D x 9-7/8" H), PEAD-AA30NL (43-5/16" W x 28-7/8" D x 9-7/8" H)
• Weight: MXZ-SM36NL (N/A), PEAD-AA15NL (58 lbs), PEAD-AA30NL (69 lbs), PAC-LMA30BC (15 lbs)

Use & Compatibility

This bundle is designed for multi-zone climate control in residential and light commercial settings. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the PEAD-AA15NL and PEAD-AA30NL ducted units provide versatile installation options. The PAC-LMA30BC branch box facilitates connections to multiple indoor units, ensuring balanced refrigerant flow and optimal performance.
