Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 15K+24K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric components designed for efficient heating and cooling in both residential and light commercial settings. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. The PEAD-AA15NL and PEAD-AA24NL concealed horizontal-ducted indoor units provide discreet air distribution, ensuring comfort without compromising aesthetics. Completing the bundle is the PAC-LMA30BC branch box, which facilitates optimal refrigerant flow between the condenser and indoor units, enhancing overall system performance. Together, these components create a versatile and efficient HVAC solution tailored to meet diverse climate control needs.

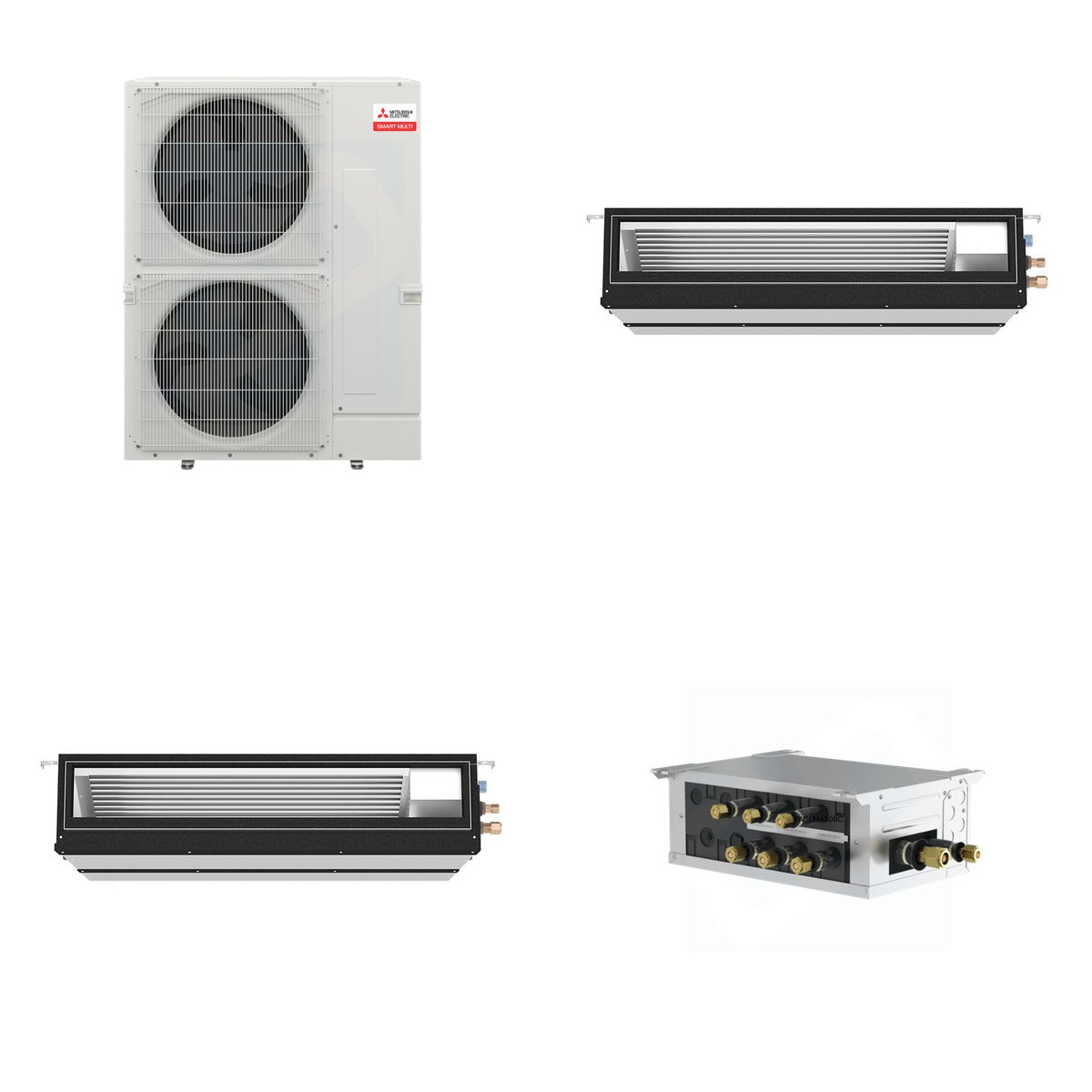

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA24NL - Mitsubishi Electric PEAD-AA24NL R454B: 24k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 291 lb (Mitsubishi 161 lb + Mitsubishi 58 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit 1: 15,000 BTU (PEAD-AA15NL)
• Indoor Unit 2: 24,000 BTU (PEAD-AA24NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (PEAD-AA15NL): 35-7/16 W x 28-7/8 D x 9-7/8 H
• Dimensions (PEAD-AA24NL): 43-5/16 W x 28-7/8 D x 9-7/8 H
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H

Use & Compatibility

This HVAC bundle is ideal for residential and light commercial applications, providing efficient heating and cooling solutions. The MXZ-SM36NL condenser works seamlessly with the PEAD-AA15NL and PEAD-AA24NL indoor units, allowing for customized climate control across multiple zones. The PAC-LMA30BC branch box ensures balanced refrigerant distribution, enhancing system reliability and performance.
