Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 15K+18K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and light commercial applications. The MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone of this system, allowing for customized climate control across multiple zones. Paired with the PEAD-AA15NL and PEAD-AA18NL concealed horizontal-ducted indoor units, this bundle ensures discreet and effective air distribution throughout your space. The PAC-LMA30BC branch box facilitates seamless connectivity between the outdoor and indoor units, optimizing refrigerant flow and enhancing overall system performance. Together, these components create a powerful, energy-efficient HVAC solution that meets modern environmental standards.

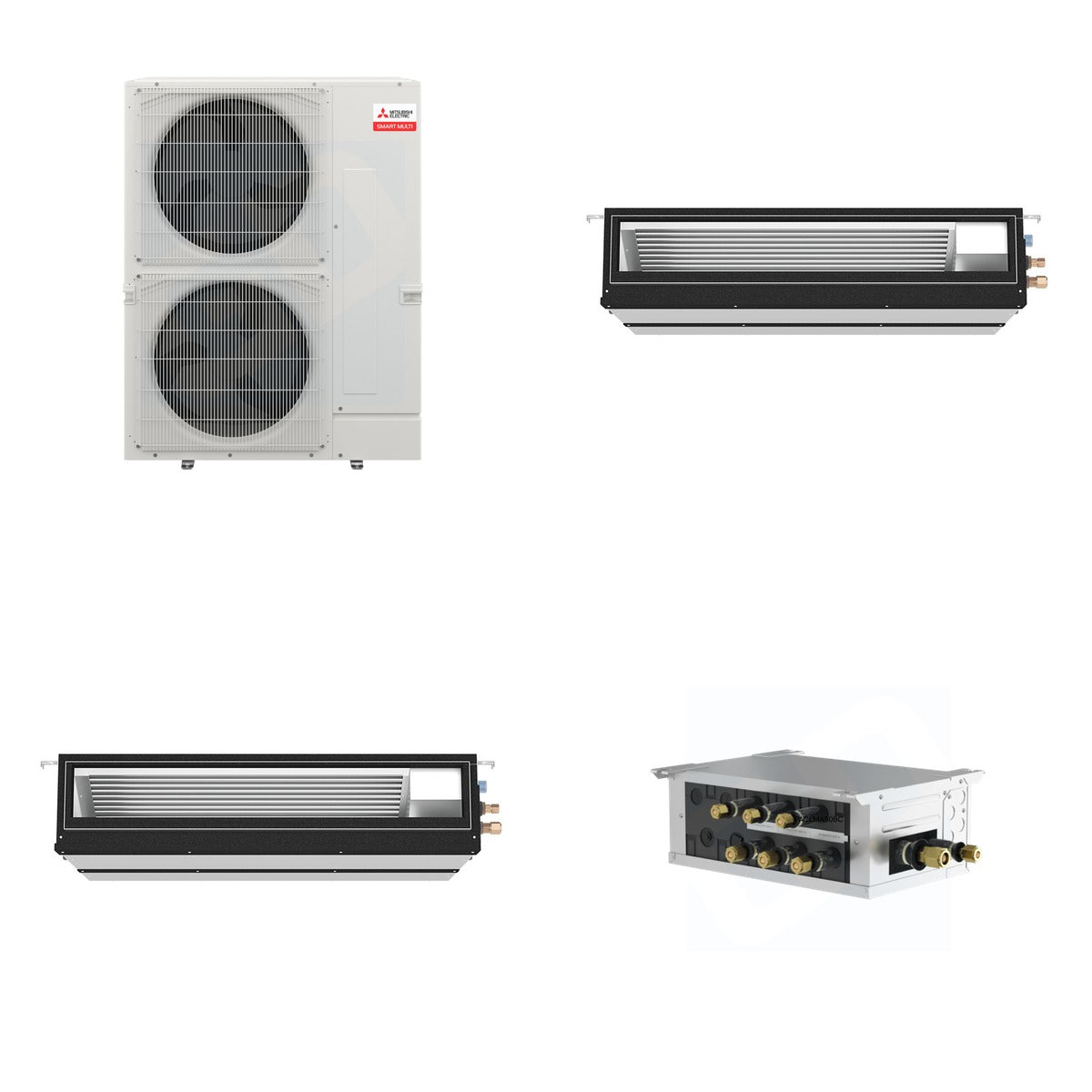

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA18NL - Mitsubishi Electric PEAD-AA18NL R454B: 18k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 291 lb (Mitsubishi 161 lb + Mitsubishi 58 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 15,000 BTU (PEAD-AA15NL), 18,000 BTU (PEAD-AA18NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 18,000 BTU (PEAD-AA15NL), 20,000 BTU (PEAD-AA18NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (PEAD-AA15NL): 35-7/16 W x 28-7/8 D x 9-7/8 H
• Dimensions (PEAD-AA18NL): 35-7/16 W x 28-7/8 D x 9-7/8 H
• Dimensions (PAC-LMA30BC): 17-3/4 W x 11-1/16 D x 6-3/4 H
• Number of Zones: 4 (with branch box) or 11 (without branch box)

Use & Compatibility

This bundle is designed for efficient heating and cooling in residential and light commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the PEAD-AA15NL and PEAD-AA18NL units provide flexible installation options for concealed ducted systems. The included PAC-LMA30BC branch box ensures optimal refrigerant distribution, making this bundle a versatile choice for various applications.
