Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 15K+15K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone climate control system. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, providing robust heating and cooling capabilities across multiple zones. Complementing this is the PEAD-AA15NL R454B Concealed Horizontal-Ducted Indoor Unit, which ensures discreet yet effective air distribution in residential and light commercial spaces. The PAC-LMA30BC 3-Port Branch Box optimizes refrigerant flow, connecting up to three indoor units for seamless operation. Together, these products deliver a versatile and eco-friendly solution for customized comfort in any setting.

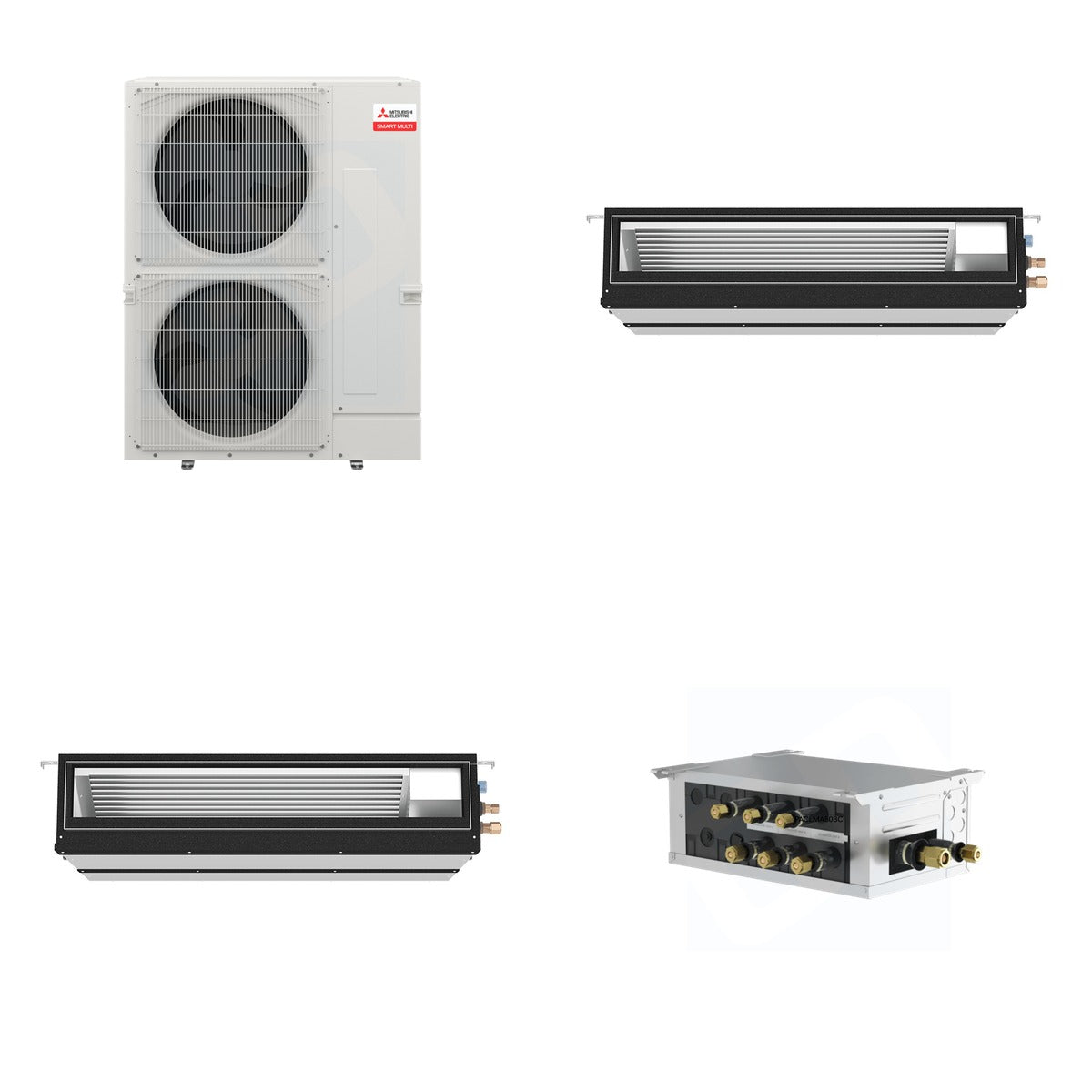

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA15NL - Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 282 lb (Mitsubishi 161 lb + Mitsubishi 116 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Refrigerant Type: R454B
• Number of Zones: Up to 4 (with branch box) or 11 (without) (MXZ-SM36NL)
• Voltage: 208/230V (PEAD-AA15NL, PAC-LMA30BC)
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM36NL)
• Dimensions: 35-7/16" W x 28-7/8" D x 9-7/8" H (PEAD-AA15NL)
• Dimensions: 17-3/4" W x 11-1/16" D x 6-3/4" H (PAC-LMA30BC)

Use & Compatibility

This bundle is designed for residential and light commercial applications, providing efficient heating and cooling solutions. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the PEAD-AA15NL unit is ideal for concealed installations. The PAC-LMA30BC branch box enhances system flexibility, making it suitable for various configurations and ensuring optimal refrigerant distribution.
