Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 12K+24K
Availability:
In Stock
Ships via freight in 1-3 business days
- $10,805.66
- $10,805.66
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
LTL Delivery
This product weighs 291 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Description
This comprehensive HVAC bundle features essential components designed to work seamlessly together, providing efficient heating and cooling solutions for both residential and light commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, capable of supporting multiple indoor units for customized climate control. Paired with the PEAD-AA12NL and PEAD-AA24NL concealed horizontal-ducted indoor units, this bundle ensures discreet installation and effective airflow management. The PAC-LMA30BC branch box facilitates optimal refrigerant distribution, making it an ideal choice for those seeking a reliable and efficient HVAC system.

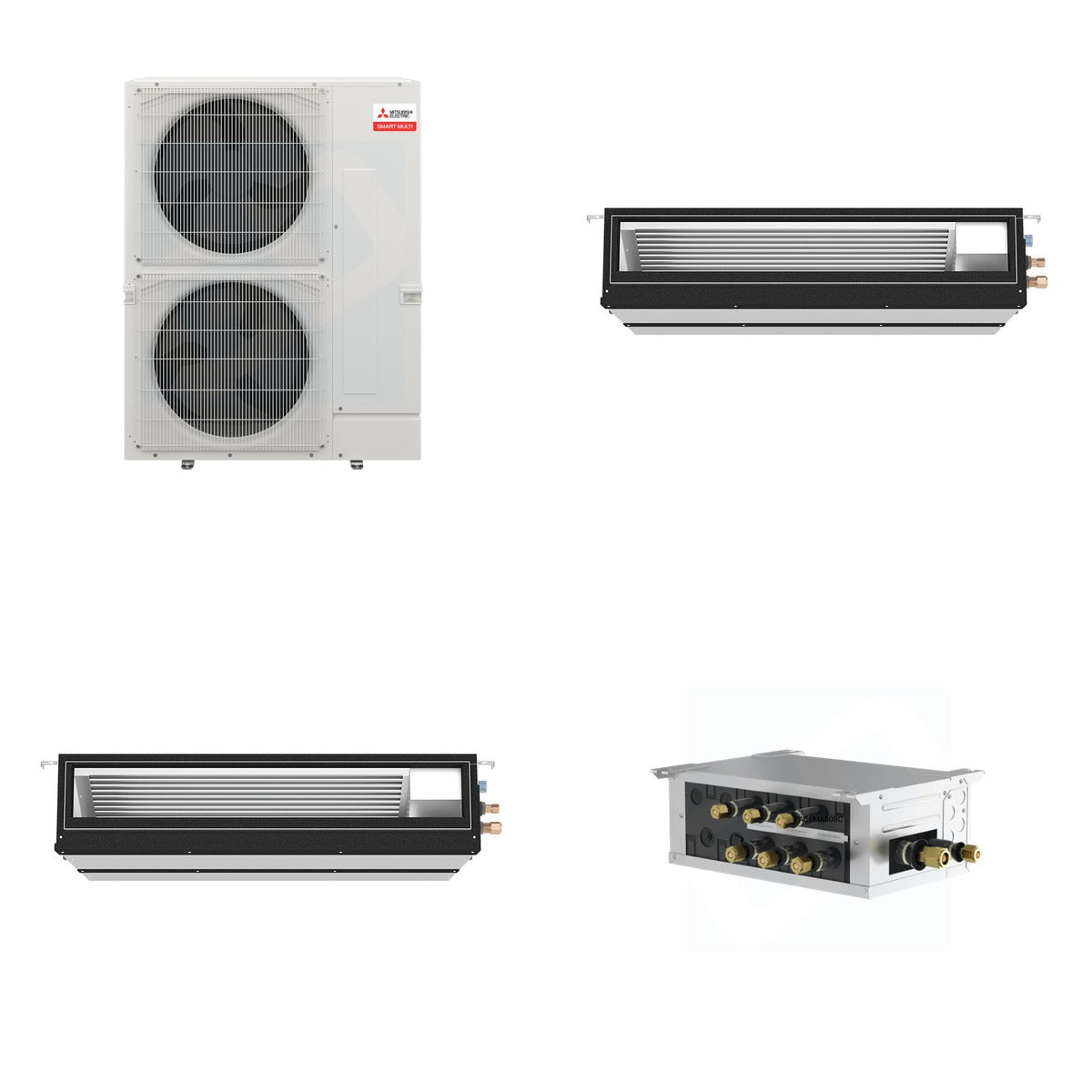

What's Included
- MITSUBISHI ELECTRIC MXZ-SM36NL - Multi-Zone Heat Pump Condenser (Qty x1)
- MITSUBISHI ELECTRIC PEAD-AA12NL - 12k BTU Concealed Horizontal-Ducted Indoor Unit (Qty x1)
- MITSUBISHI ELECTRIC PEAD-AA24NL - 24k BTU Concealed Horizontal-Ducted Indoor Unit (Qty x1)
- MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
Key Details
- Weight of Bundle: 291 lb (Mitsubishi 161 lb + Mitsubishi 58 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
- Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
- Heating Capacity: 41,000 BTU (MXZ-SM36NL)
- SEER2: 23 (MXZ-SM36NL)
- Airflow: 353 to 494 CFM (PEAD-AA12NL)
- Power Consumption: 870 W (PEAD-AA12NL)
- Voltage: 208/230 V (PEAD-AA12NL & PAC-LMA30BC)
- Dimensions: 41-11/32 x 13 x 52-11/16 in (MXZ-SM36NL)
- Material: R454B Refrigerant (All components)
Use & Compatibility
This bundle is designed for multi-zone heating and cooling applications, ideal for homes and small commercial spaces. The MXZ-SM36NL condenser connects to the PEAD-AA12NL and PEAD-AA24NL indoor units, allowing for versatile climate control across multiple rooms. The PAC-LMA30BC branch box enhances system efficiency by ensuring balanced refrigerant flow, making it compatible with various Mitsubishi Electric indoor units.
