Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 12K+18K

Description

This comprehensive HVAC bundle features essential components for a multi-zone heating and cooling system, ideal for both residential and commercial applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, providing efficient heating and cooling across multiple zones. Paired with the PEAD-AA12NL and PEAD-AA18NL concealed horizontal-ducted indoor units, this setup ensures discreet and effective climate control. The PAC-LMA30BC branch box optimally distributes refrigerant to enhance system performance, making this bundle a complete solution for customized comfort.

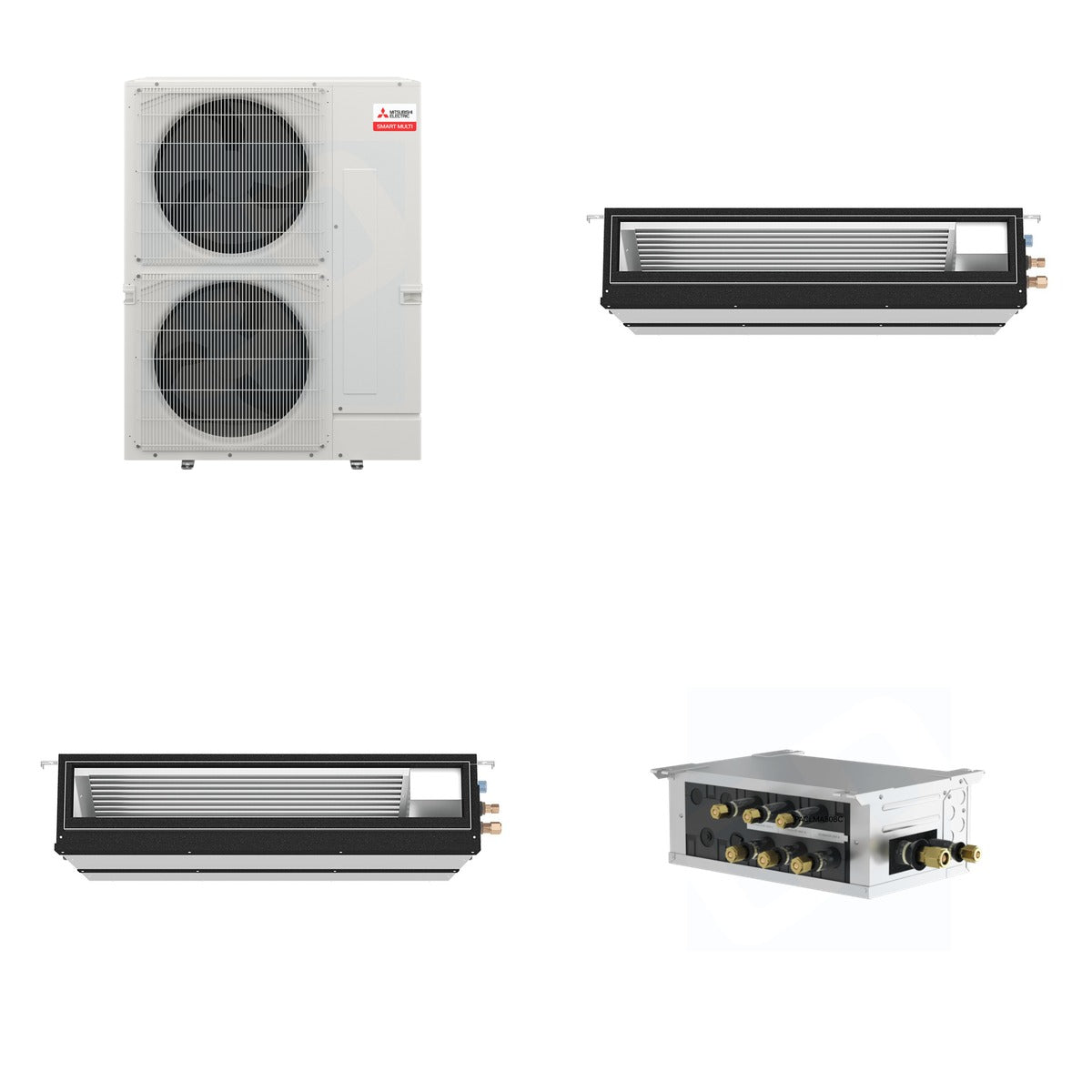

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA12NL - Mitsubishi Electric PEAD-AA12NL R454B: 12k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA18NL - Mitsubishi Electric PEAD-AA18NL R454B: 18k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 291 lb (Mitsubishi 161 lb + Mitsubishi 58 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL), 12,400 BTU (PEAD-AA12NL), 18,000 BTU (PEAD-AA18NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL), 20,000 BTU (PEAD-AA18NL)
• SEER2: 23 (MXZ-SM36NL), 20 (PEAD-AA12NL)
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H (MXZ-SM36NL)
• Sound Level: 34 dBA (PEAD-AA12NL)
• Airflow: 353-494 CFM (PEAD-AA12NL), 600-900 CFM (PEAD-AA18NL)

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, providing efficient temperature control for various spaces. The outdoor condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the indoor units are suitable for concealed installations in ducted systems. The branch box facilitates the connection of multiple indoor units, ensuring optimal refrigerant distribution and balanced climate control.
