Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+18K

Description

This comprehensive HVAC bundle features essential components designed to provide efficient heating and cooling for multi-zone environments. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the backbone of this system, capable of connecting to multiple indoor units for customized climate control. Paired with the SEZ-AD09NL and SEZ-AD18NL concealed duct indoor units, this setup allows for discreet installation and optimal performance across various spaces. The PAC-LMA30BC branch box ensures balanced refrigerant distribution, making this bundle ideal for both residential and commercial applications.

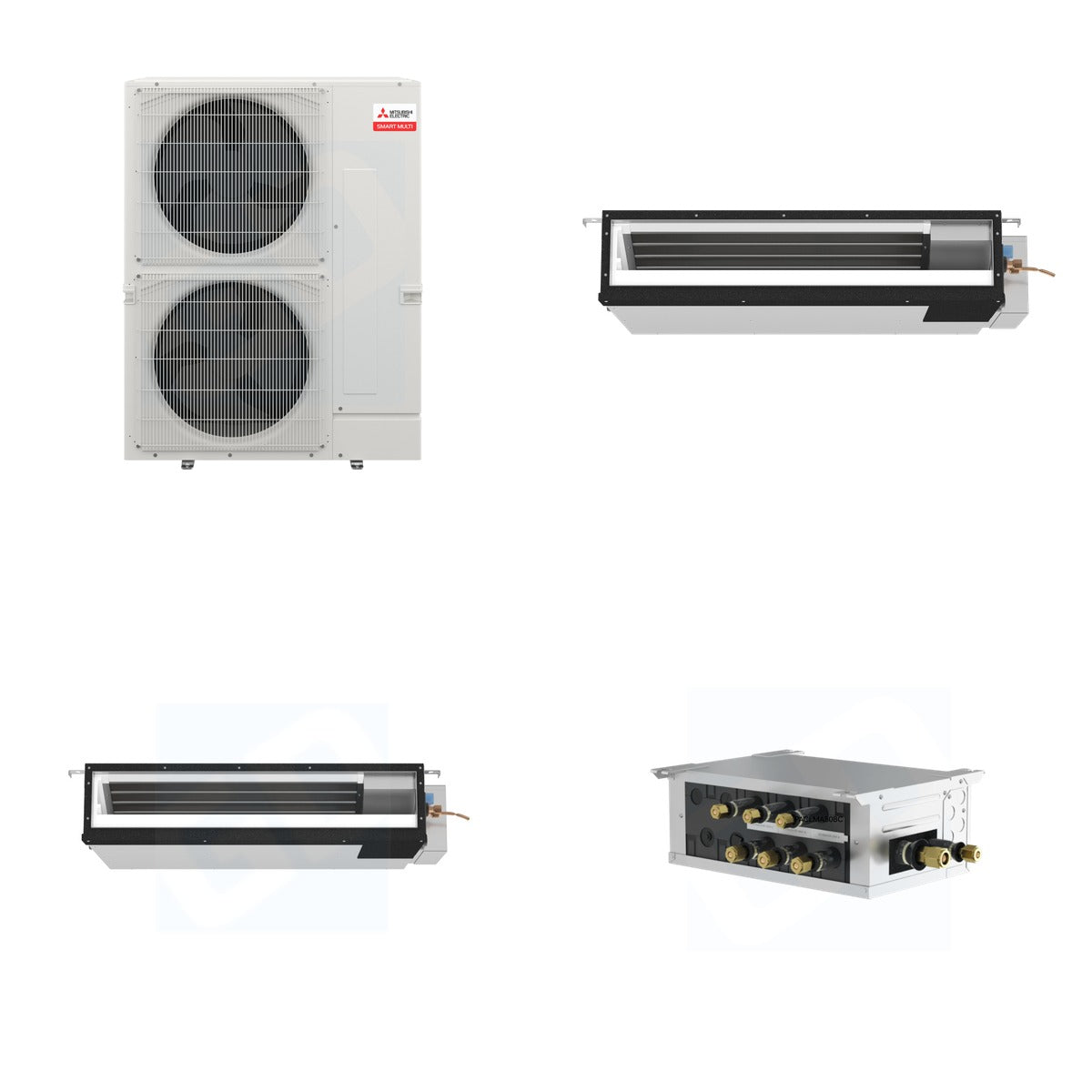

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

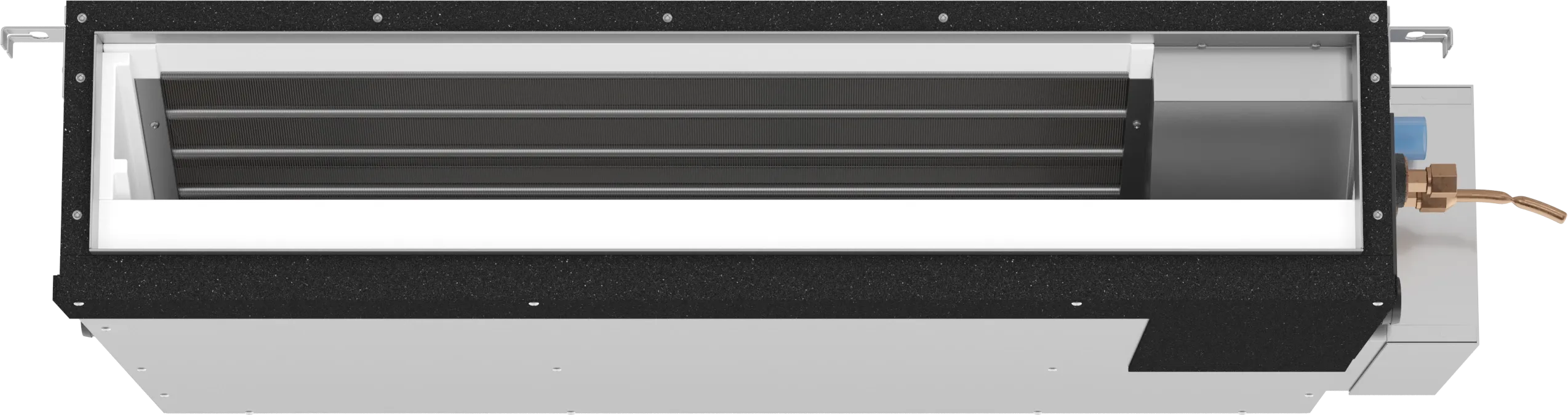

• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU M-Series Concealed Duct AHU (Qty x1)

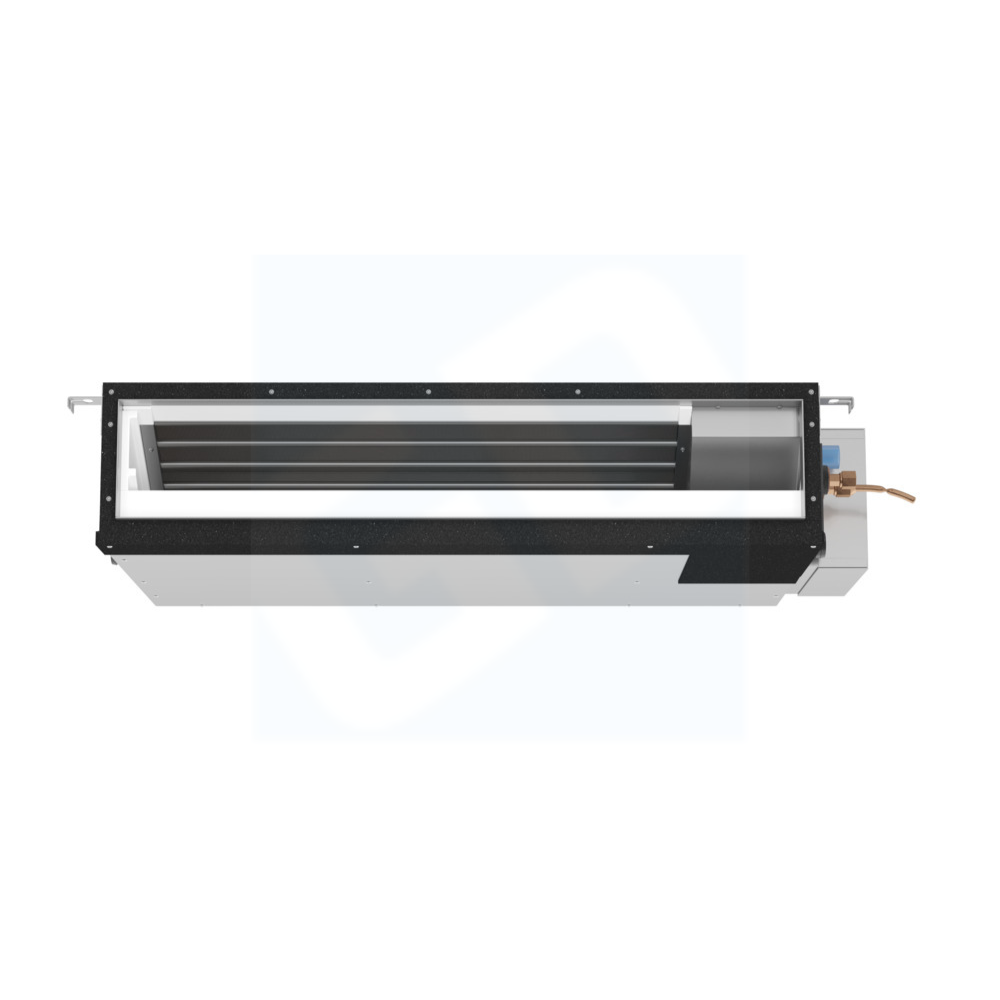

• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU M-Series Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 264 lb (Mitsubishi 161 lb + Mitsubishi 40 lb + Mitsubishi 58 lb + Mitsubishi 5 lb)
• Condenser Capacity: 36,000 BTU
• Indoor Unit 1 Capacity: 9,000 BTU
• Indoor Unit 2 Capacity: 18,000 BTU
• Refrigerant Type: R454B
• Voltage: 208/230V
• Cooling Minimum Temperature: 5°F (Condenser)
• Dimensions (Condenser): 41-11/32 W x 13 D x 52-11/16 H inches
• Dimensions (Indoor Unit 1): 31-1/8 W x 27-9/16 D x 7-7/8 H inches
• Dimensions (Indoor Unit 2): 46-7/8 W x 27-9/16 D x 7-7/8 H inches
• Branch Box Dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H inches

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and commercial spaces. The MXZ-SM36NL condenser connects seamlessly with the SEZ-AD09NL and SEZ-AD18NL indoor units, allowing for effective climate control across various zones. The PAC-LMA30BC branch box enhances system efficiency by ensuring balanced refrigerant flow.
