Mitsubishi Multi-Zone 36000 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 15K+15K

Description

This comprehensive HVAC bundle includes everything you need for efficient climate control in multi-zone applications. The Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser serves as the powerhouse, providing up to 36,000 BTUs of heating and cooling capacity. Paired with two SEZ-AD15NL Concealed Duct Air Handling Units, each delivering 15,000 BTUs, this setup ensures discreet yet effective air distribution throughout your space. The PAC-LMA30BC 3-Port Branch Box facilitates seamless connections between the outdoor condenser and indoor units, optimizing refrigerant flow and temperature maintenance. Together, these components create a versatile and efficient HVAC system tailored for both residential and commercial environments.

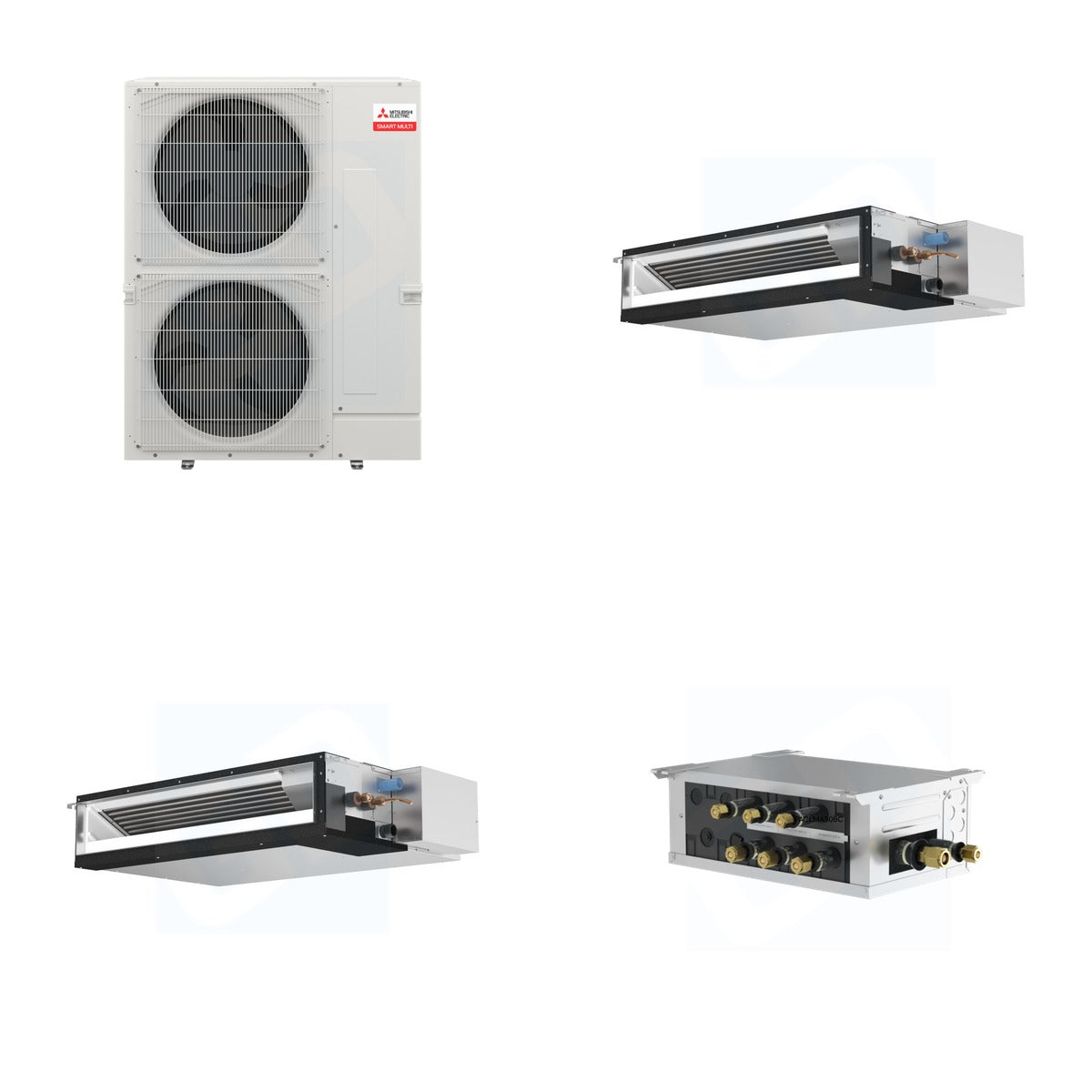

What's Included

• MITSUBISHI ELECTRIC MXZ-SM36NL - Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Condenser (Qty x1)

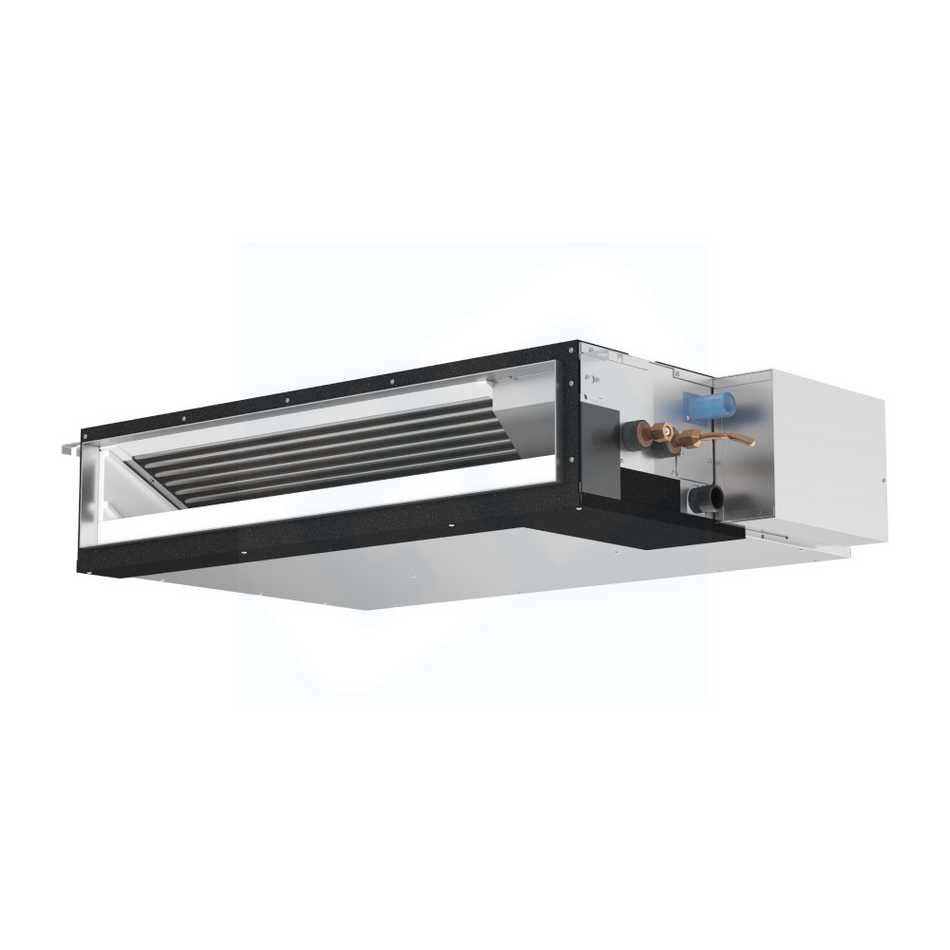

• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU (1.25 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 402 lb (Mitsubishi 161 lb + Mitsubishi 236 lb + Mitsubishi 5 lb)
• Cooling Capacity: 36,000 BTU (MXZ-SM36NL)
• Heating Capacity: 41,000 BTU (MXZ-SM36NL)
• Indoor Unit Capacity: 15,000 BTU (SEZ-AD15NL)
• Refrigerant Type: R454B
• SEER2: 23 (MXZ-SM36NL)
• Dimensions (MXZ-SM36NL): 41-11/32 W x 13 D x 52-11/16 H
• Power Supply: 208/230V, Single-phase (PAC-LMA30BC)
• Weight: 15.00 lbs (PAC-LMA30BC)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it ideal for both residential and commercial spaces. The MXZ-SM36NL condenser is compatible with M-, P-Series, and CITY MULTI indoor units, while the SEZ-AD15NL air handling units are optimized for concealed duct systems. The PAC-LMA30BC branch box ensures efficient refrigerant distribution among multiple indoor units, enhancing overall system performance.
