Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-4D30NL outdoor condenser and a combination of two wall-mounted air handlers (MSZ-FX06NL and MSZ-FX12NL). Designed for both residential and light commercial applications, this system provides efficient heating and cooling across multiple zones. The outdoor unit boasts a powerful 30,000 BTU capacity, while the indoor units offer flexible options with 6,000 BTU and 12,000 BTU outputs. Together, they ensure optimal comfort, energy efficiency, and quiet operation, making them perfect for any space.

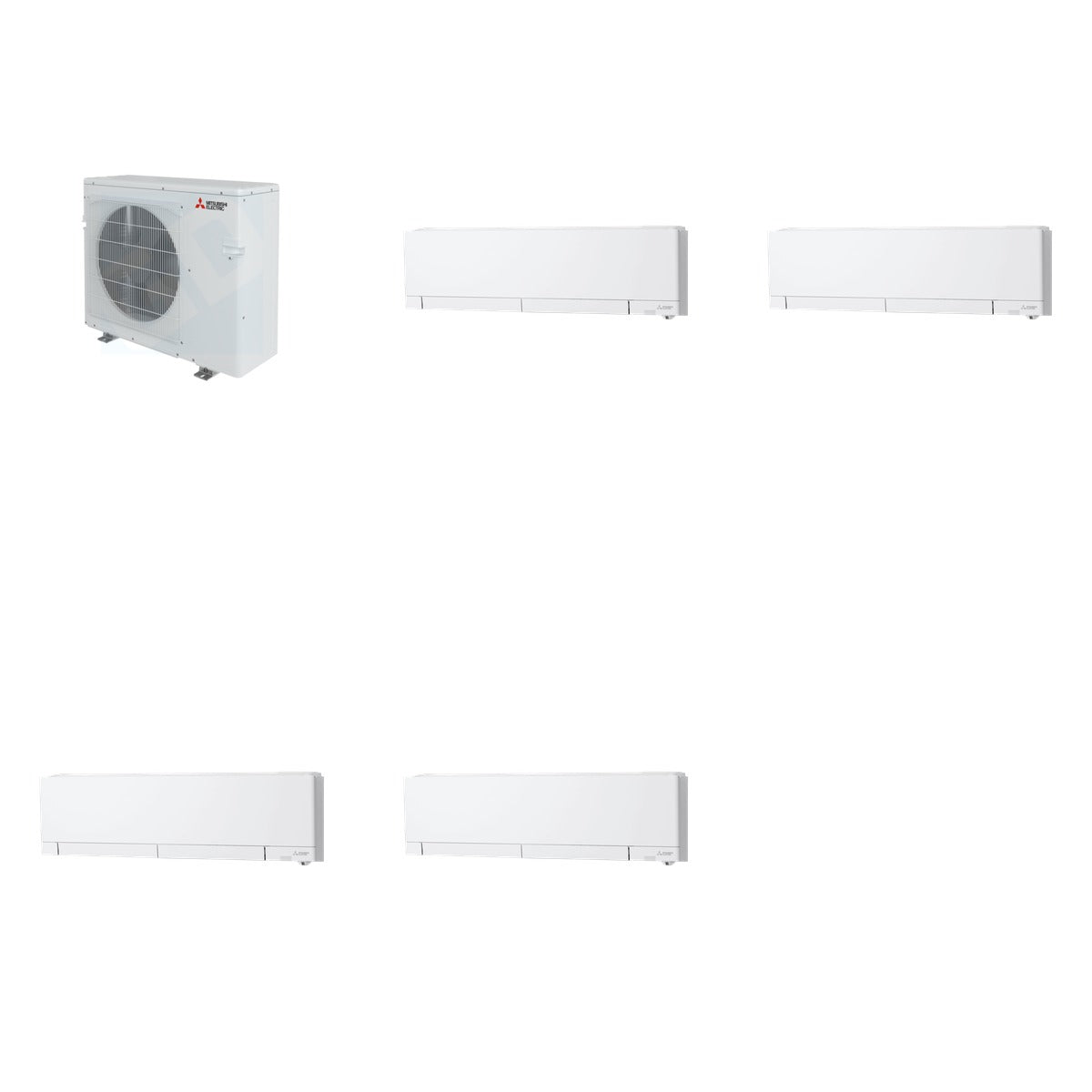

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)

Key Details

• Weight of Bundle: 254.4 lb (Mitsubishi 131 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb)
• Cooling BTU: 30,000 (MXZ-4D30NL), 6,000 (MSZ-FX06NL), 12,000 (MSZ-FX12NL)
• Heating BTU: 36,000 (MXZ-4D30NL), 9,000 (MSZ-FX06NL), 13,200 (MSZ-FX12NL)
• SEER: 21 (MXZ-4D30NL), Up to 35 (MSZ-FX06NL & MSZ-FX12NL)
• Voltage: 208/230V
• Sound Levels: 52 dB(A) (MXZ-4D30NL), 20-42 dB (MSZ-FX06NL), 20-44 dB (MSZ-FX12NL)
• Dimensions: MXZ-4D30NL (31.43" H x 37.45" W x 13" D), MSZ-FX06NL & MSZ-FX12NL (12" H x 39.27" W x 9.75" D)
• Weight: 137 lbs (MXZ-4D30NL), 36.4 lbs (MSZ-FX06NL), 36.4 lbs (MSZ-FX12NL)

Use & Compatibility

This bundle is ideal for both residential and light commercial use, providing efficient heating and cooling solutions for single-zone and multi-zone systems. The outdoor condenser is compatible with the included wall-mounted air handlers, ensuring seamless integration and optimal performance in various settings.
