Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 9K+12K+15K

Description

This comprehensive Mitsubishi Electric bundle includes a powerful outdoor condenser and three versatile wall-mounted air handlers, making it ideal for both residential and light commercial applications. The MXZ-4D30NL outdoor condenser provides robust heating and cooling capabilities for up to four zones, while the MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL air handlers ensure efficient and quiet operation in various indoor settings. With advanced features like built-in Wi-Fi, Econo Cool mode, and superior filtration systems, this bundle offers a complete solution for customized comfort throughout the year.

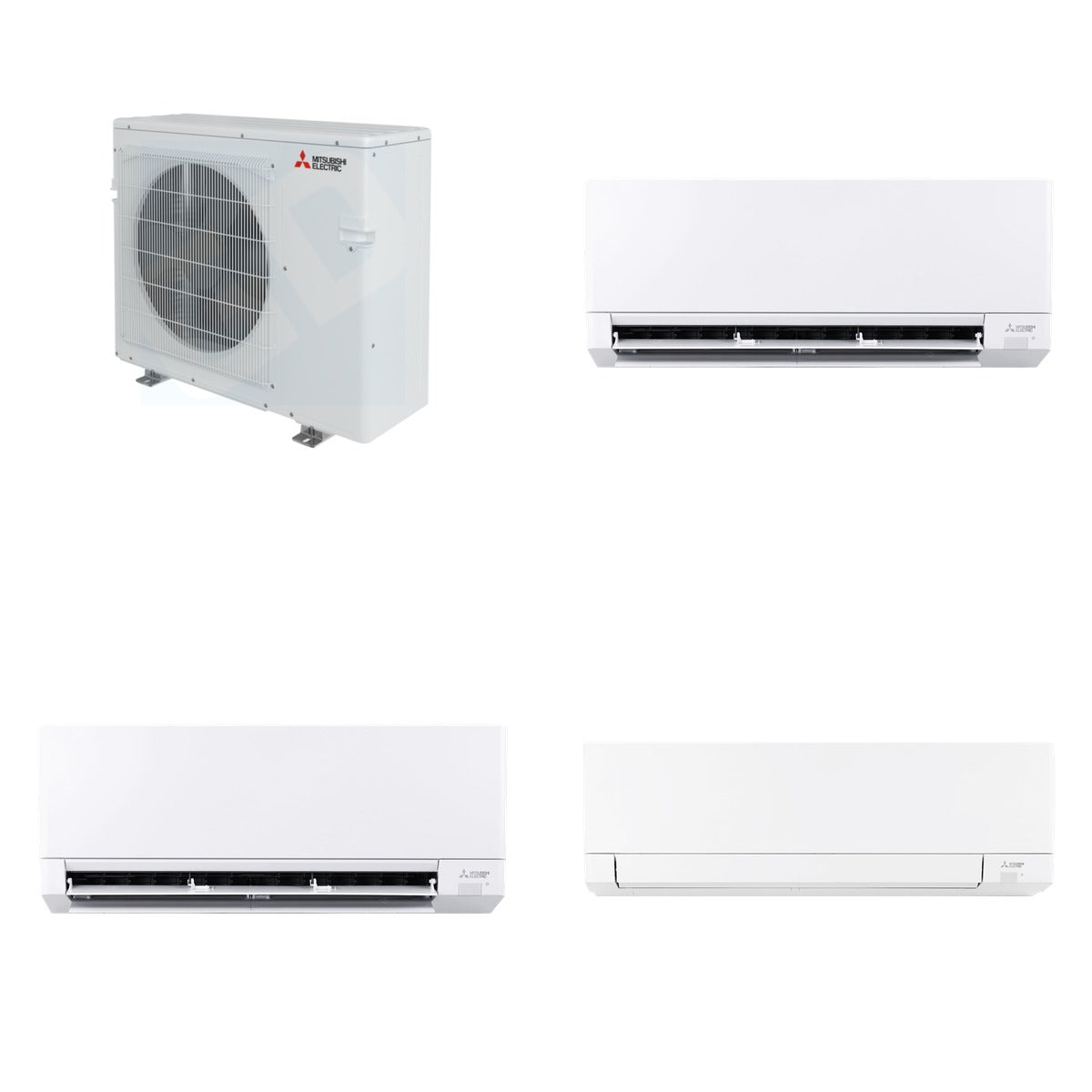

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 197 lb (Mitsubishi 131 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 22 lb)
• Cooling BTU: 30000 (MXZ-4D30NL), 9000 (MSZ-GX09NL), 12000 (MSZ-GX12NL), 15000 (MSZ-GX15NL)
• Heating BTU: 36000 (MXZ-4D30NL), 10900 (MSZ-GX09NL), 14400 (MSZ-GX12NL), 18000 (MSZ-GX15NL)
• SEER2: Up to 28.4 (MSZ-GX09NL, MSZ-GX12NL, MSZ-GX15NL)
• AFUE: Not applicable
• Voltage: 208/230V
• Sound Level: As low as 19 dB(A) (MSZ-GX09NL, MSZ-GX12NL), up to 56 dB(A) (MXZ-4D30NL)
• Dimensions: MXZ-4D30NL - 31.43" H x 37.45" W x 13" D; MSZ-GX09NL - 11.77" H x 31.39" W x 9.65" D; MSZ-GX12NL - 11.77" H x 31.39" W x 9.65" D; MSZ-GX15NL - 11.77" H x 31.40" W x 9.65" D

Use & Compatibility

This bundle is designed for efficient heating and cooling in both single-zone and multi-zone systems. The outdoor condenser is compatible with the included wall-mounted air handlers, providing a seamless solution for customized climate control in residential and light commercial environments.
