Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+15K

Description

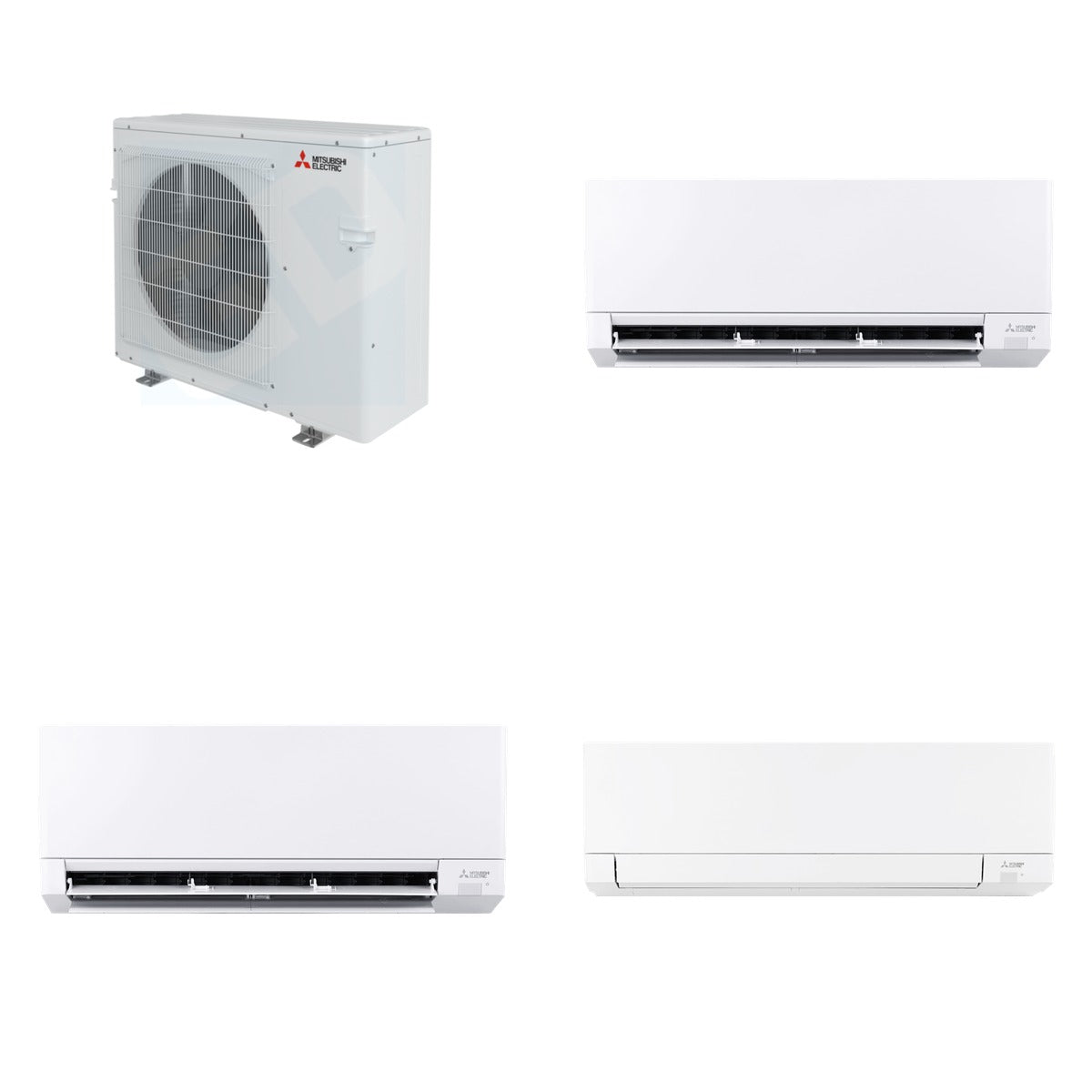

This comprehensive HVAC bundle features a powerful Mitsubishi Electric MXZ-4D30NL outdoor condenser paired with three versatile wall-mounted air handlers: the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL. Together, these units provide an efficient heating and cooling solution suitable for both residential and light commercial applications. The outdoor condenser supports up to four zones, allowing for customizable comfort in various spaces. Each air handler is equipped with advanced features such as built-in Wi-Fi, Econo Cool mode, and superior filtration systems, ensuring optimal performance and user convenience.

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 197 lb (Mitsubishi 131 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 22 lb)
• Cooling BTU: 30,000 (MXZ-4D30NL), 6,000 (MSZ-GX06NL), 9,000 (MSZ-GX09NL), 15,000 (MSZ-GX15NL)
• Heating BTU: 36,000 (MXZ-4D30NL), 7,200 (MSZ-GX06NL), 10,900 (MSZ-GX09NL), 18,000 (MSZ-GX15NL)
• SEER: 21 (MXZ-4D30NL), Up to 28.4 (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions (MXZ-4D30NL): 31.43" H x 37.45" W x 13" D
• Dimensions (MSZ-GX06NL): 11.77" H x 31.40" W x 9.65" D
• Dimensions (MSZ-GX09NL): 11.77" H x 31.40" W x 9.65" D
• Dimensions (MSZ-GX15NL): 11.77" H x 31.40" W x 9.65" D

Use & Compatibility

This bundle is designed for efficient heating and cooling in both residential and light commercial settings. The MXZ-4D30NL outdoor condenser is compatible with the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL wall-mounted air handlers, allowing for flexible multi-zone configurations. Ideal for spaces requiring customized climate control, this system ensures comfort and energy efficiency throughout the year.
