Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+12K+15K

Description

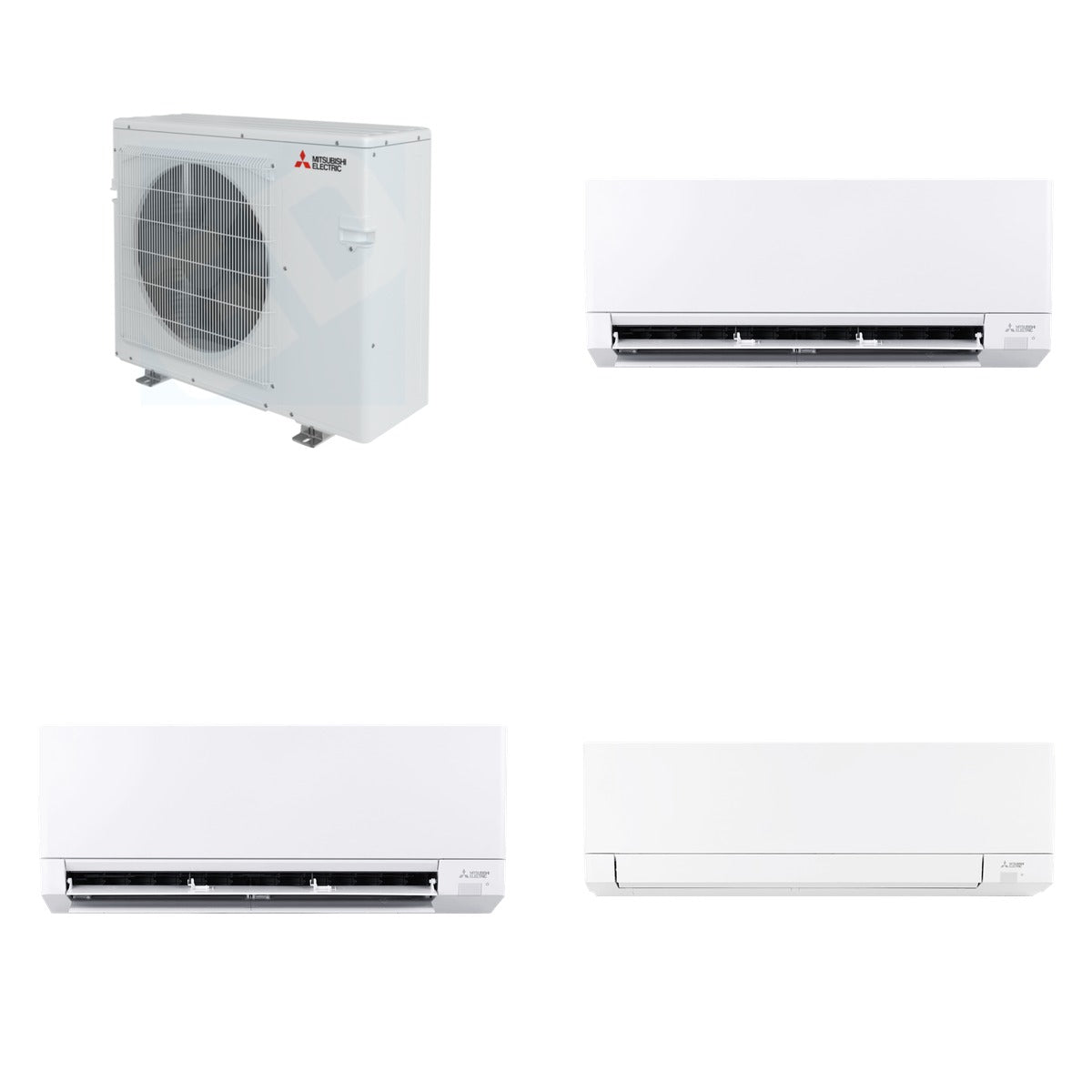

This comprehensive bundle features the Mitsubishi Electric MXZ-4D30NL outdoor condenser paired with three advanced wall-mounted air handlers: the MSZ-GX06NL, MSZ-GX12NL, and MSZ-GX15NL. This combination is perfect for multi-zone heating and cooling applications, allowing you to efficiently manage indoor climates across various spaces. The outdoor unit delivers robust performance with a 30k BTU capacity, while the air handlers provide flexible options for different room sizes, ensuring optimal comfort and energy efficiency. With built-in Wi-Fi connectivity and advanced filtration systems, this bundle not only enhances convenience but also promotes healthier indoor air quality.

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)

Key Details

• Weight of Bundle: 197 lb (Mitsubishi 131 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 22 lb)
• Cooling BTU: 30000 (MXZ-4D30NL), 6000 (MSZ-GX06NL), 12000 (MSZ-GX12NL), 15000 (MSZ-GX15NL)
• Heating BTU: 36000 (MXZ-4D30NL), 7200 (MSZ-GX06NL), 14400 (MSZ-GX12NL), 18000 (MSZ-GX15NL)
• SEER Rating: 21 (MXZ-4D30NL), Up to 28.4 (MSZ-GX06NL, MSZ-GX12NL, MSZ-GX15NL)
• Voltage: 208/230V (All units)
• Dimensions: MXZ-4D30NL - 31.43" H x 37.45" W x 13" D; MSZ-GX06NL - 11.77" H x 31.39" W x 9.65" D; MSZ-GX12NL - 11.77" H x 31.39" W x 9.65" D; MSZ-GX15NL - 11.77" H x 31.40" W x 9.65" D
• Weight: MXZ-4D30NL - 137 lbs; MSZ-GX06NL - 27 lbs; MSZ-GX12NL - 27 lbs; MSZ-GX15NL - 27 lbs

Use & Compatibility

This bundle is designed for residential and light commercial applications, providing efficient heating and cooling across multiple zones. The outdoor condenser is compatible with the included wall-mounted air handlers, making it an ideal choice for enhancing comfort in various room sizes and configurations.
