Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K

Description

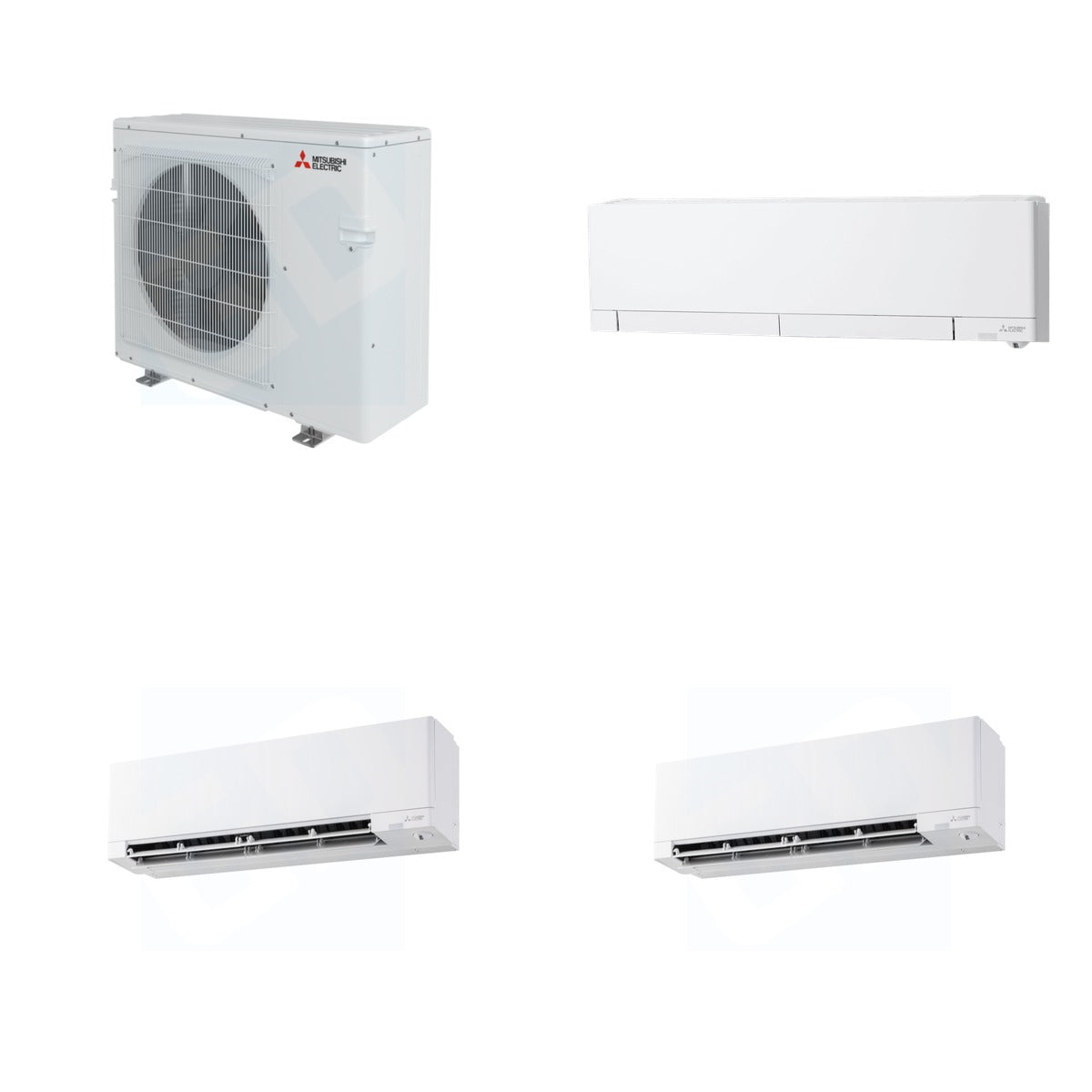

This comprehensive bundle features the Mitsubishi Electric MXZ-4D30NL outdoor condenser and two wall-mounted air handlers, the MSZ-FX06NL and MSZ-FX09NL, creating an efficient multi-zone heating and cooling solution for residential and light commercial spaces. The outdoor unit, with its powerful 30,000 BTU capacity, seamlessly integrates with the two indoor units, providing optimal comfort and energy efficiency. The advanced filtration systems in the air handlers ensure clean air while the built-in Wi-Fi allows for convenient smart device control, making this bundle an ideal choice for modern living.

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)

Key Details

• Weight of Bundle: 232.8 lb (Mitsubishi 131 lb + Mitsubishi 29 lb + Mitsubishi 72.8 lb)
• Cooling BTU: 30000 (MXZ-4D30NL), 6000 (MSZ-FX06NL), 9000 (MSZ-FX09NL)
• Heating BTU: 36000 (MXZ-4D30NL), 9000 (MSZ-FX06NL), 12000 (MSZ-FX09NL)
• SEER Rating: 21 (MXZ-4D30NL), Up to 35 (MSZ-FX06NL, MSZ-FX09NL)
• Voltage: 208/230V
• Dimensions: MXZ-4D30NL - 31.43" H x 37.45" W x 13" D; MSZ-FX06NL & MSZ-FX09NL - 12" H x 39.27" W x 9.75" D
• Weight: 137 lbs (MXZ-4D30NL), 36.4 lbs (MSZ-FX06NL & MSZ-FX09NL)
• Noise Level: 52 dB(A) (MXZ-4D30NL), 20-42 dB(A) (MSZ-FX06NL & MSZ-FX09NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in both residential and light commercial applications. The MXZ-4D30NL outdoor condenser is compatible with the MSZ-FX06NL and MSZ-FX09NL indoor units, allowing for flexible multi-zone configurations to meet diverse climate control needs.
