Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K

Description

This bundle features a powerful and efficient heating and cooling solution designed for both residential and light commercial applications. The Mitsubishi Electric MXZ-4D30NL outdoor condenser works seamlessly with the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, providing a comprehensive system that can accommodate multiple zones. With advanced features such as variable speed inverter technology, quiet operation, and smart device compatibility, this bundle ensures optimal comfort and energy efficiency throughout the year.

What's Included

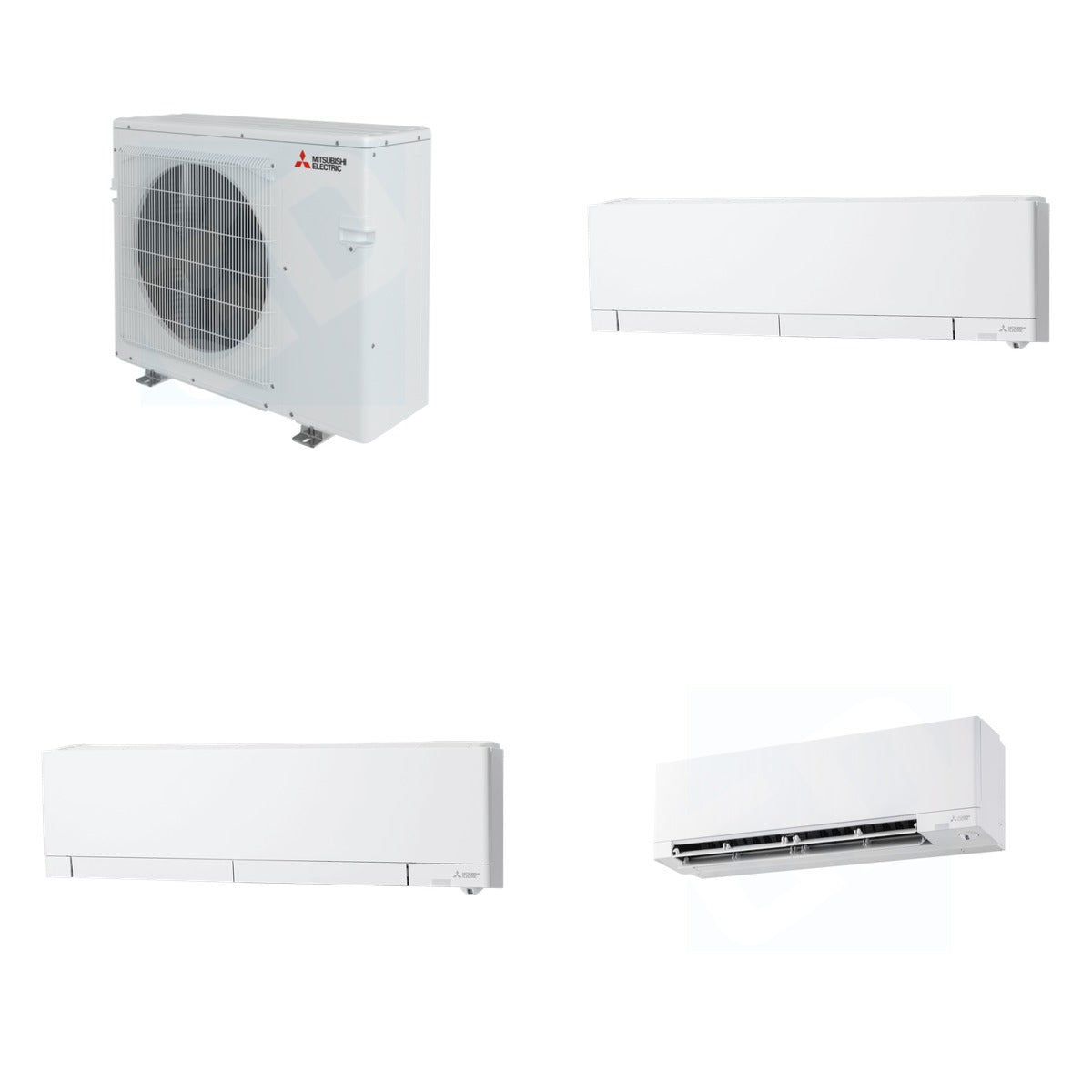

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)

Key Details

• Weight of Bundle: 225.4 lb (Mitsubishi 131 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb)
• Cooling BTU: 30000 (MXZ-4D30NL), 6000 (MSZ-FX06NL), 9000 (MSZ-FX09NL)
• Heating BTU: 36000 (MXZ-4D30NL), 9000 (MSZ-FX06NL), 12000 (MSZ-FX09NL)
• SEER Rating: 21 (MXZ-4D30NL), up to 35 (MSZ-FX06NL), HSPF up to 13.3 (MSZ-FX06NL)
• Voltage: 208/230V
• Dimensions: MXZ-4D30NL - 31.43" H x 37.45" W x 13" D; MSZ-FX06NL & MSZ-FX09NL - 12" H x 39.27" W x 9.75" D
• Weight: MXZ-4D30NL - 137 lbs; MSZ-FX06NL & MSZ-FX09NL - 36.4 lbs each
• Noise Level: MXZ-4D30NL - 52 dB(A) cooling, 56 dB(A) heating; MSZ-FX06NL - 20-42 dB(A); MSZ-FX09NL - 20-44 dB(A)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, making it suitable for various residential and light commercial environments. The outdoor condenser is compatible with both wall-mounted air handlers, allowing for flexible installation and efficient climate control in different spaces.
