Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K

Description

This comprehensive bundle features top-of-the-line Mitsubishi Electric HVAC components, designed to deliver exceptional heating and cooling performance for both residential and light commercial applications. The MXZ-4D30NL outdoor condenser provides a robust 30,000 BTU cooling capacity, while the SLZ-AF09NL indoor units offer versatile air distribution with customizable airflow patterns. Together, these units create an efficient multi-zone climate control system, ensuring comfort and energy savings throughout the year. The included SLP-18FAU grilles perfectly complement the indoor units, enhancing both functionality and aesthetics.

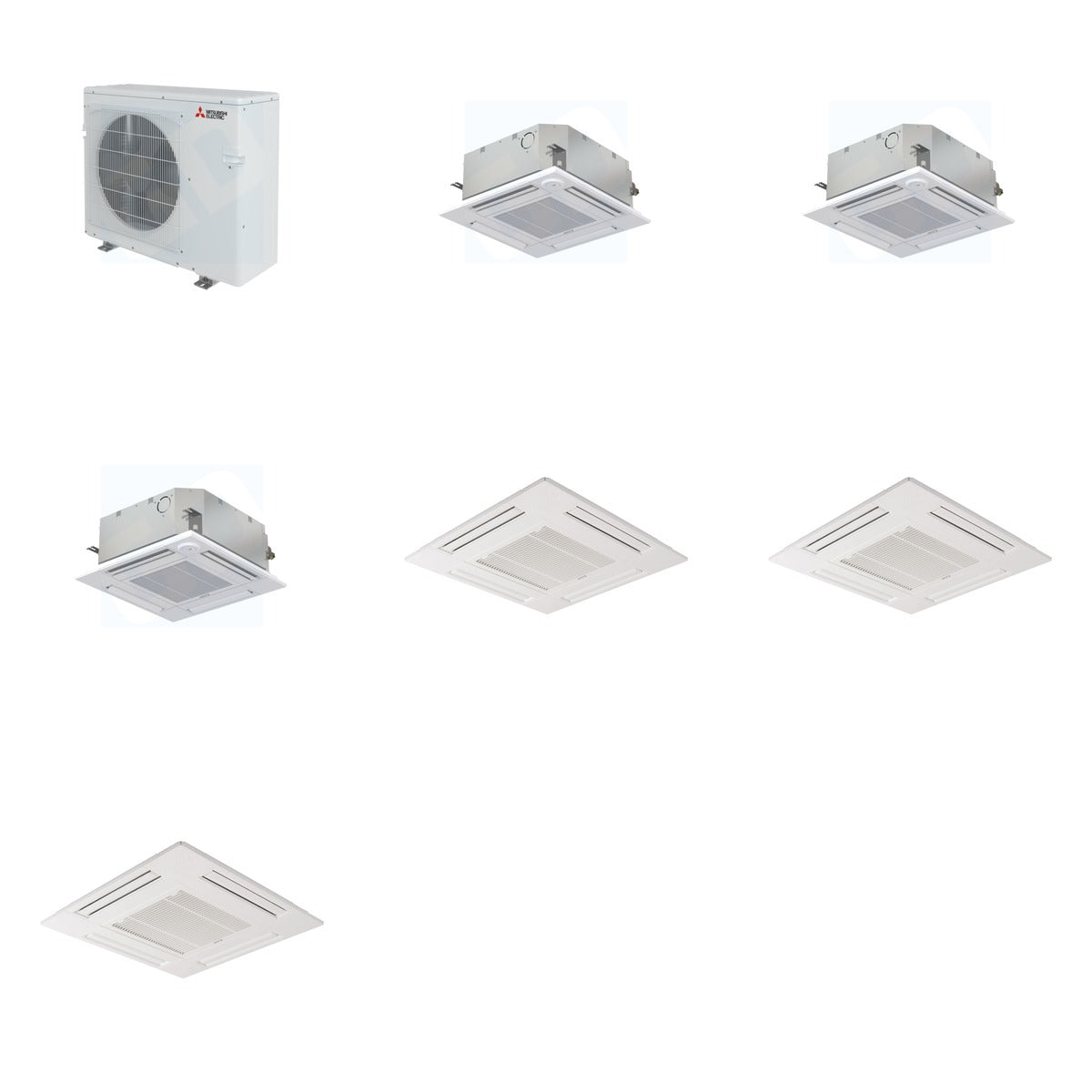

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x3)

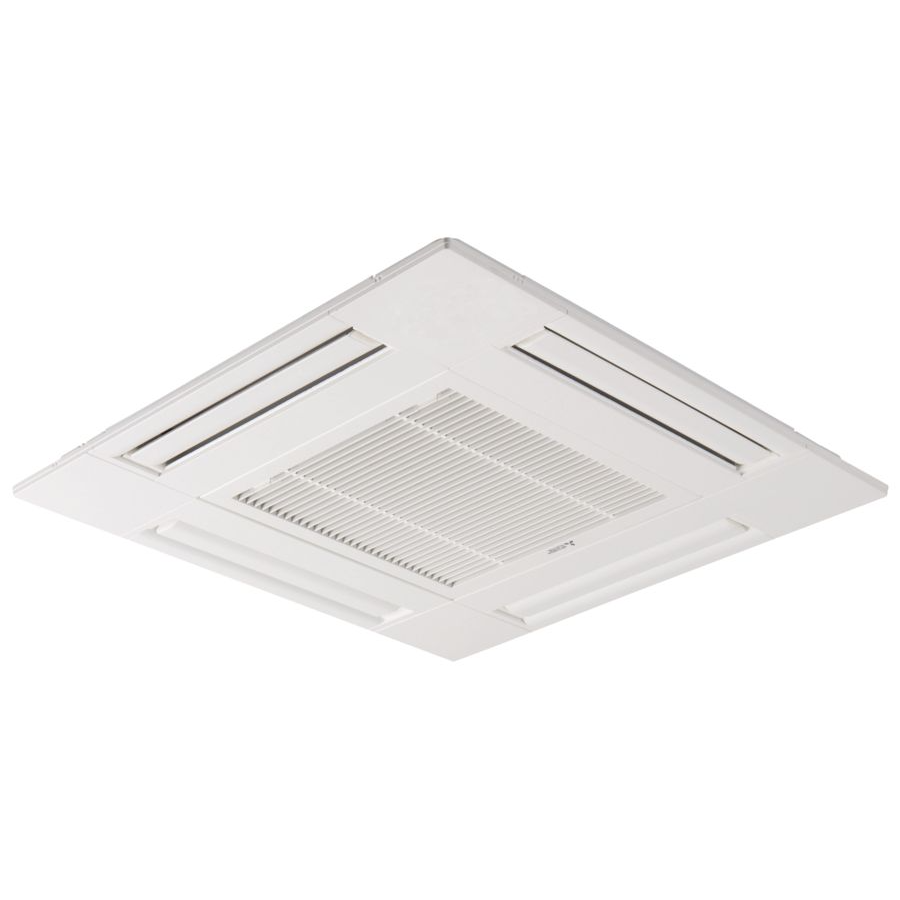

• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 251 lb (Mitsubishi 131 lb + Mitsubishi 99 lb + Mitsubishi 21 lb)
• Cooling BTU: 30,000
• Heating BTU: 36,000
• Indoor Unit Cooling Capacity: 9,000 BTU
• Indoor Unit Heating Capacity: 12,000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230V
• Sound Levels: 25 dB to 56 dB
• Dimensions (Outdoor Unit): 31.43 x 37.45 x 13 inches
• Dimensions (Indoor Unit): 8.19 x 22.44 x 22.44 inches

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, suitable for both residential and light commercial settings. The outdoor condenser is compatible with up to four indoor units, allowing for tailored climate control in various spaces. The SLZ-AF09NL indoor units are designed for ceiling installation and work seamlessly with the included grilles for optimal air distribution.
