Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 12K+15K

Description

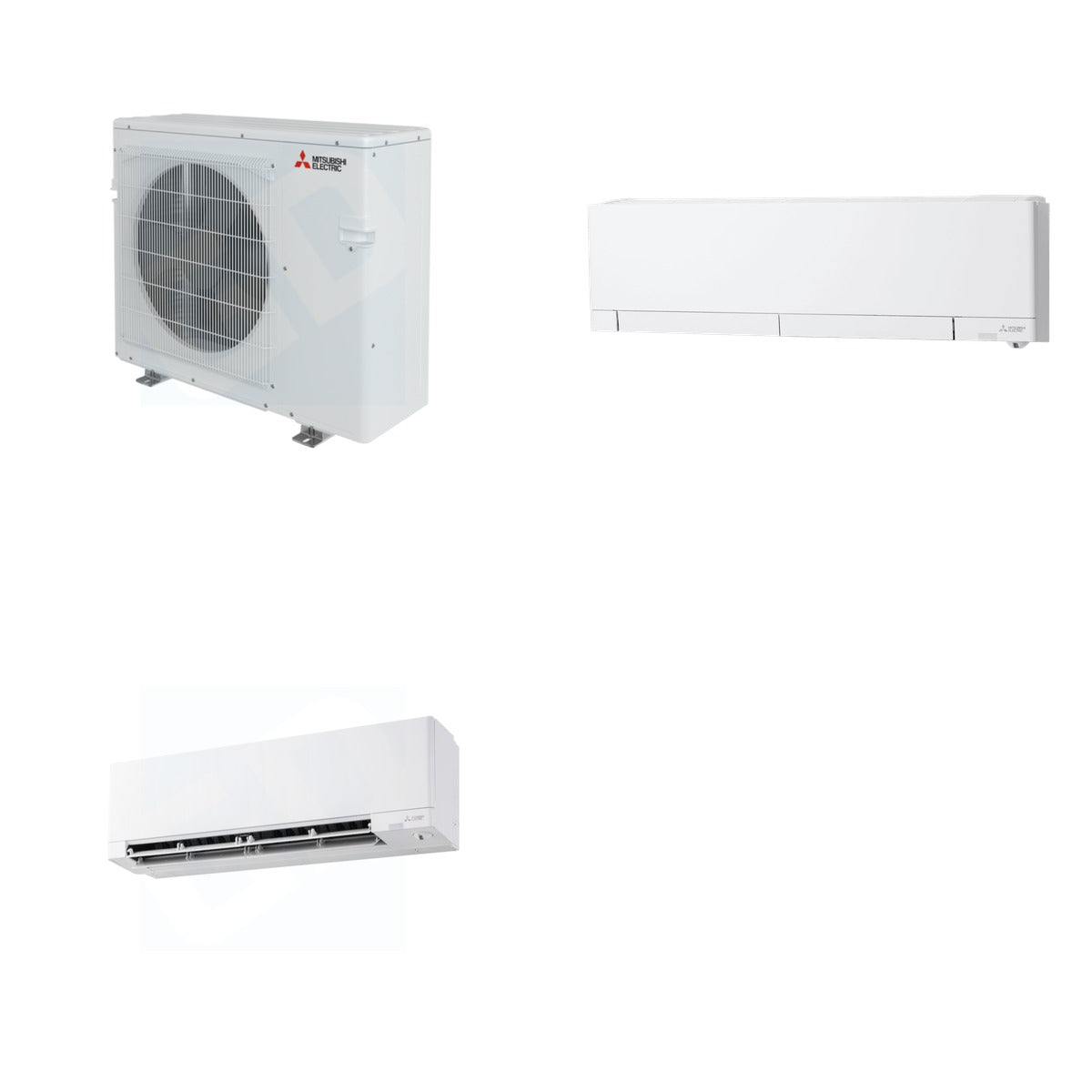

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-4D30NL outdoor condenser and two advanced wall-mounted air handlers, the MSZ-FX12NL and MSZ-FX15NL. Designed for both residential and light commercial applications, this system provides efficient heating and cooling across multiple zones. The outdoor condenser delivers powerful performance with a variable speed inverter-driven compressor, while the wall-mounted units offer quiet operation and smart control features. Together, they ensure optimal comfort, energy efficiency, and air quality, making them an ideal choice for modern living spaces.

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)

Key Details

• Weight of Bundle: 203.8 lb (Mitsubishi 131 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb)
• Cooling BTU: 30,000 (MXZ-4D30NL), 12,000 (MSZ-FX12NL), 15,000 (MSZ-FX15NL)
• Heating BTU: 36,000 (MXZ-4D30NL), 13,200 (MSZ-FX12NL), 18,000 (MSZ-FX15NL)
• SEER2 Rating: Up to 35 (MSZ-FX12NL), Up to 20 (MSZ-FX15NL)
• AFUE: Not Applicable
• Voltage: 208/230V
• Dimensions: MXZ-4D30NL - 31.43" H x 37.45" W x 13" D; MSZ-FX12NL - 12" H x 39.27" W x 9.75" D; MSZ-FX15NL - 12" H x 39-9/32" W x 9-3/4" D
• Weight: MXZ-4D30NL - 137 lbs; MSZ-FX12NL - 36.4 lbs; MSZ-FX15NL - 42 lbs
• Refrigerant Type: R-454B

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for residential and light commercial use. The outdoor condenser is compatible with the MSZ-FX12NL and MSZ-FX15NL air handlers, allowing for efficient climate control across various spaces. Ideal for both new installations and replacements, this system enhances comfort while meeting modern energy efficiency standards.
