Mitsubishi Multi-Zone 28600 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+15K

Description

This comprehensive HVAC bundle features high-performance Mitsubishi Electric units designed to deliver efficient heating and cooling solutions for residential and light commercial applications. The MXZ-4D30NL outdoor condenser serves as the powerhouse, supporting up to four zones with its impressive 30,000 BTU cooling capacity. Complementing this are the SLZ-AF09NL and SLZ-AF15NL indoor ceiling cassette units, which provide versatile air distribution and customizable airflow patterns. The included SLP-18FAU grilles ensure optimal performance and seamless integration into your ceiling space. Together, these components create a reliable and efficient climate control system tailored to meet diverse needs.

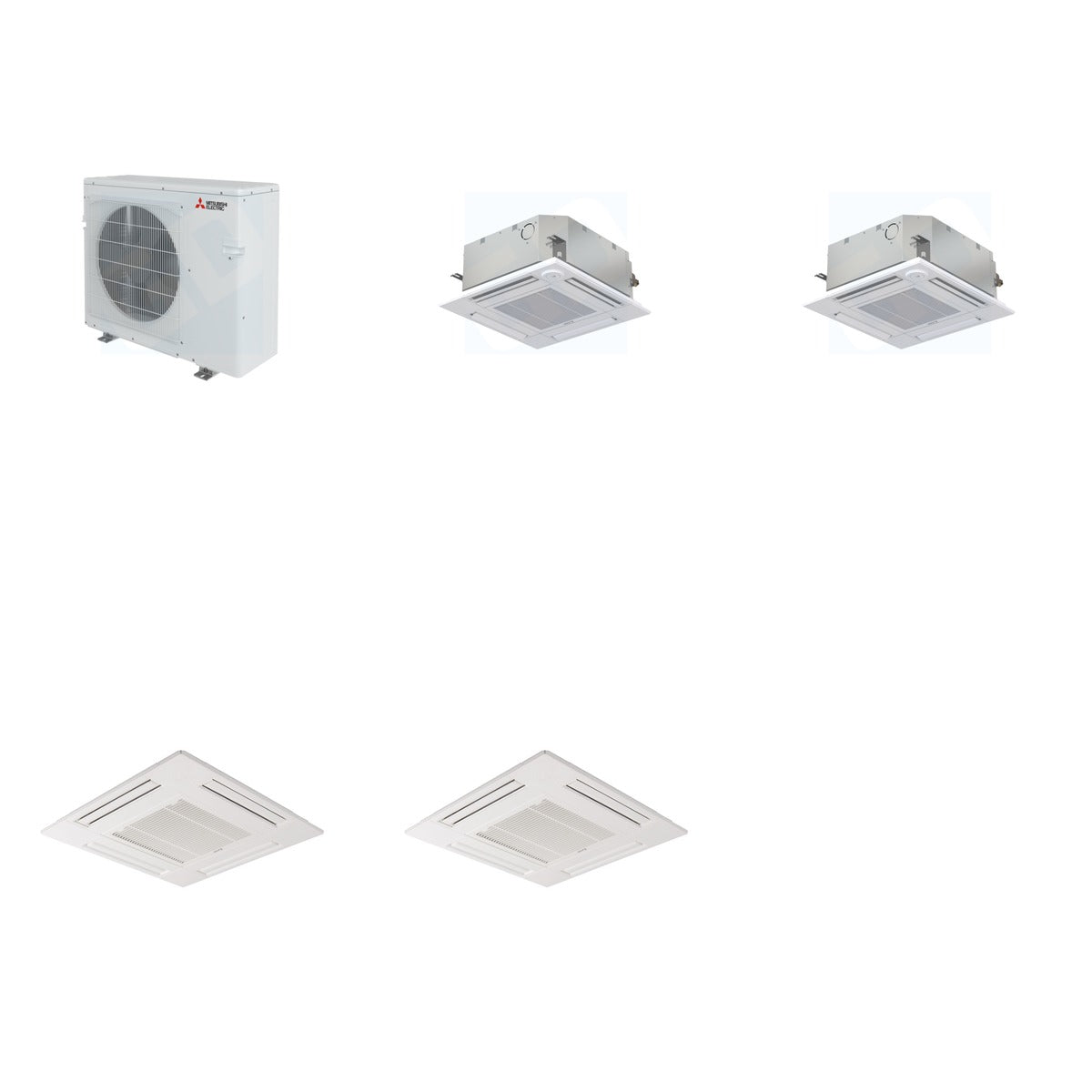

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser up to 4 Zones (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Grille not included - SLP-18FAU) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 211 lb (Mitsubishi 131 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 14 lb)
• Cooling BTU: 30000 (MXZ-4D30NL)
• Heating BTU: 36000 (MXZ-4D30NL)
• Cooling BTU: 9000 (SLZ-AF09NL)
• Heating BTU: 12000 (SLZ-AF09NL)
• Cooling BTU: 15000 (SLZ-AF15NL)
• Heating BTU: 18000 (SLZ-AF15NL)
• SEER Rating: 21 (MXZ-4D30NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions: MXZ-4D30NL - 31.43 x 37.45 x 13 inches; SLZ-AF09NL/SLZ-AF15NL - 8 3/16 x 22 7/16 x 22 7/16 inches
• Weight: MXZ-4D30NL - 137 lbs; SLZ-AF09NL/SLZ-AF15NL - 31 lbs each

Use & Compatibility

This bundle is ideal for both residential and light commercial spaces, providing efficient heating and cooling through a multi-zone system. The outdoor condenser is compatible with multiple indoor units, allowing for flexible installation options. The ceiling cassette units are designed to fit standard ceiling grids, ensuring a seamless and discreet appearance.
