Mitsubishi Multi-Zone 28600 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+9K+12K

Description

This comprehensive HVAC bundle includes high-efficiency components designed to provide optimal heating and cooling solutions for both residential and light commercial applications. The Mitsubishi Electric MXZ-4D30NL outdoor condenser serves as the powerhouse of the system, capable of supporting up to four zones with its impressive 30,000 BTU cooling capacity. Paired with the SEZ-AD09NL and SEZ-AD12NL concealed duct indoor units, this bundle ensures discreet installation and effective climate control across multiple rooms. Each unit is engineered for quiet operation and energy efficiency, making them ideal for various settings.

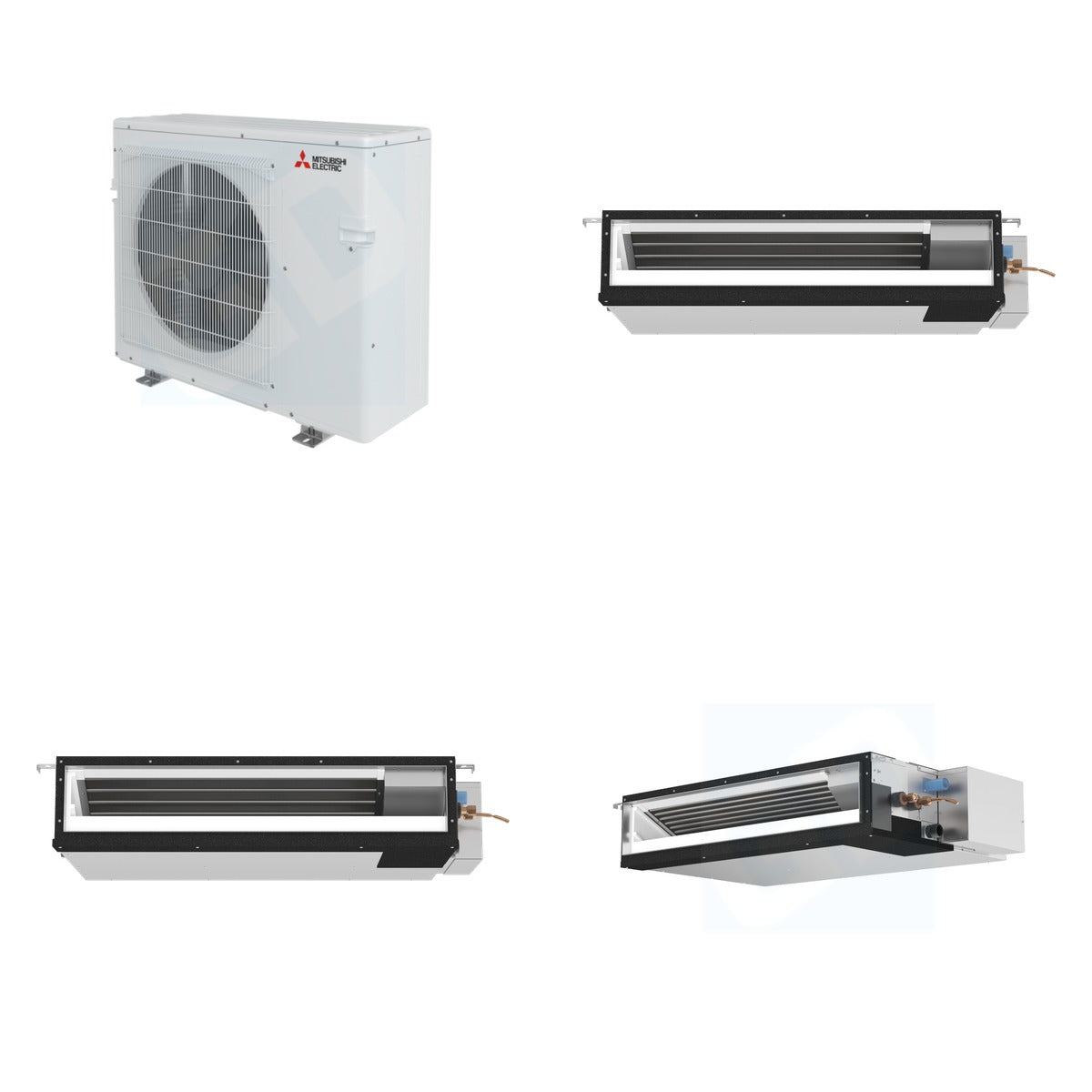

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser up to 4 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 260 lb (Mitsubishi 131 lb + Mitsubishi 80 lb + Mitsubishi 49 lb)
• Cooling BTU: 30,000 (MXZ-4D30NL), 9,000 (SEZ-AD09NL), 12,000 (SEZ-AD12NL)
• Heating BTU: 36,000 (MXZ-4D30NL), 10,900 (SEZ-AD09NL), 13,600 (SEZ-AD12NL)
• SEER Rating: 21 (MXZ-4D30NL)
• Voltage: 208/230V
• Sound Levels: 52 dB(A) (MXZ-4D30NL), 23-33 dB (SEZ-AD09NL & SEZ-AD12NL)
• Dimensions: MXZ-4D30NL - 31.43" H x 37.45" W x 13" D; SEZ-AD09NL - 7.875" H x 31.125" W x 27.5625" D; SEZ-AD12NL - 7.875" H x 39" W x 27.5625" D
• Weight: 137 lbs (MXZ-4D30NL), 42 lbs (SEZ-AD09NL), 73 lbs (SEZ-AD12NL)

Use & Compatibility

This bundle is designed for efficient heating and cooling in residential and light commercial spaces. The outdoor condenser is compatible with multiple indoor units, allowing for flexible zoning options. Ideal for installations in attics, ceilings, or wall structures, these units provide unobtrusive climate control while maximizing comfort and energy efficiency.
