Mitsubishi Multi-Zone 28600 BTU R-454B 16 SEER2 3-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K+15K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for residential and light commercial applications. The MXZ-4D30NL outdoor condenser serves as the powerhouse, capable of supporting up to four indoor zones, while the SEZ-AD09NL, SEZ-AD12NL, and SEZ-AD15NL concealed duct air handling units work seamlessly to deliver comfort in various room configurations. With variable speed technology and quiet operation, this bundle ensures optimal climate control without compromising aesthetics.

What's Included

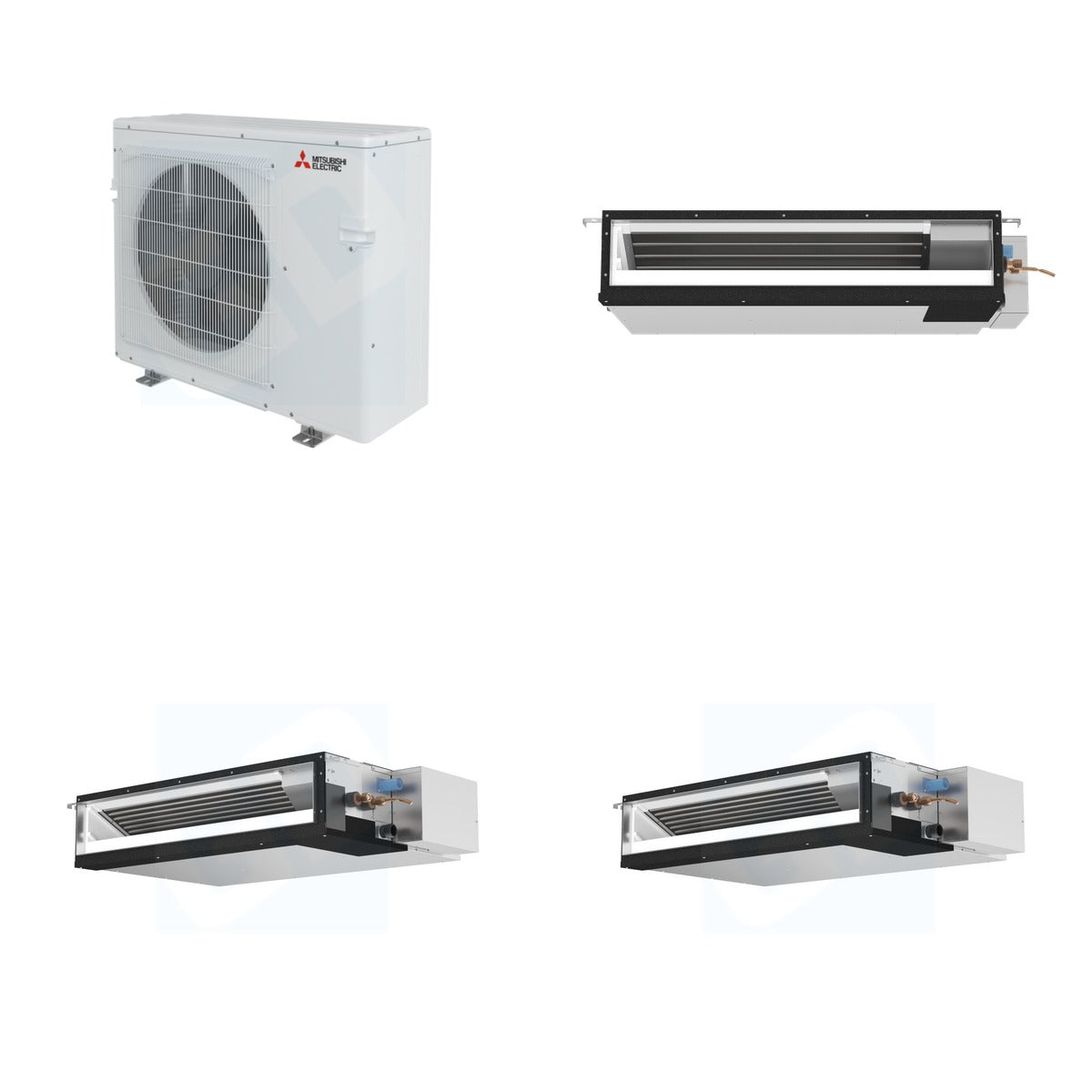

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser up to 4 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD15NL - Mitsubishi Electric SEZ-AD15NL 15k BTU (1.25 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 269 lb (Mitsubishi 131 lb + Mitsubishi 40 lb + Mitsubishi 49 lb + Mitsubishi 49 lb)
• Cooling BTU: 30000 (MXZ-4D30NL), 9000 (SEZ-AD09NL), 12000 (SEZ-AD12NL), 15000 (SEZ-AD15NL)
• Heating BTU: 36000 (MXZ-4D30NL), 10900 (SEZ-AD09NL), 13600 (SEZ-AD12NL), 15000 (SEZ-AD15NL)
• SEER Rating: 21 (MXZ-4D30NL)
• Refrigerant Type: R454B
• Voltage: 208/230V
• Dimensions: MXZ-4D30NL (31.43" H x 37.45" W x 13" D), SEZ-AD09NL (7.875" H x 31.125" W x 27.5625" D), SEZ-AD12NL (7.875" H x 39" W x 27.5625" D), SEZ-AD15NL (size varies)
• Noise Level: 30 dB (SEZ-AD09NL), 23-33 dB (SEZ-AD12NL and SEZ-AD15NL)

Use & Compatibility

This bundle is intended for heating and cooling applications in residential and light commercial settings. The outdoor condenser is compatible with multiple indoor units, allowing for flexible configurations across various zones. Ideal for installations requiring discreet air handling solutions, these units can be integrated into existing ductwork or new systems with ease.
