Mitsubishi Multi-Zone 28600 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+18K

Description

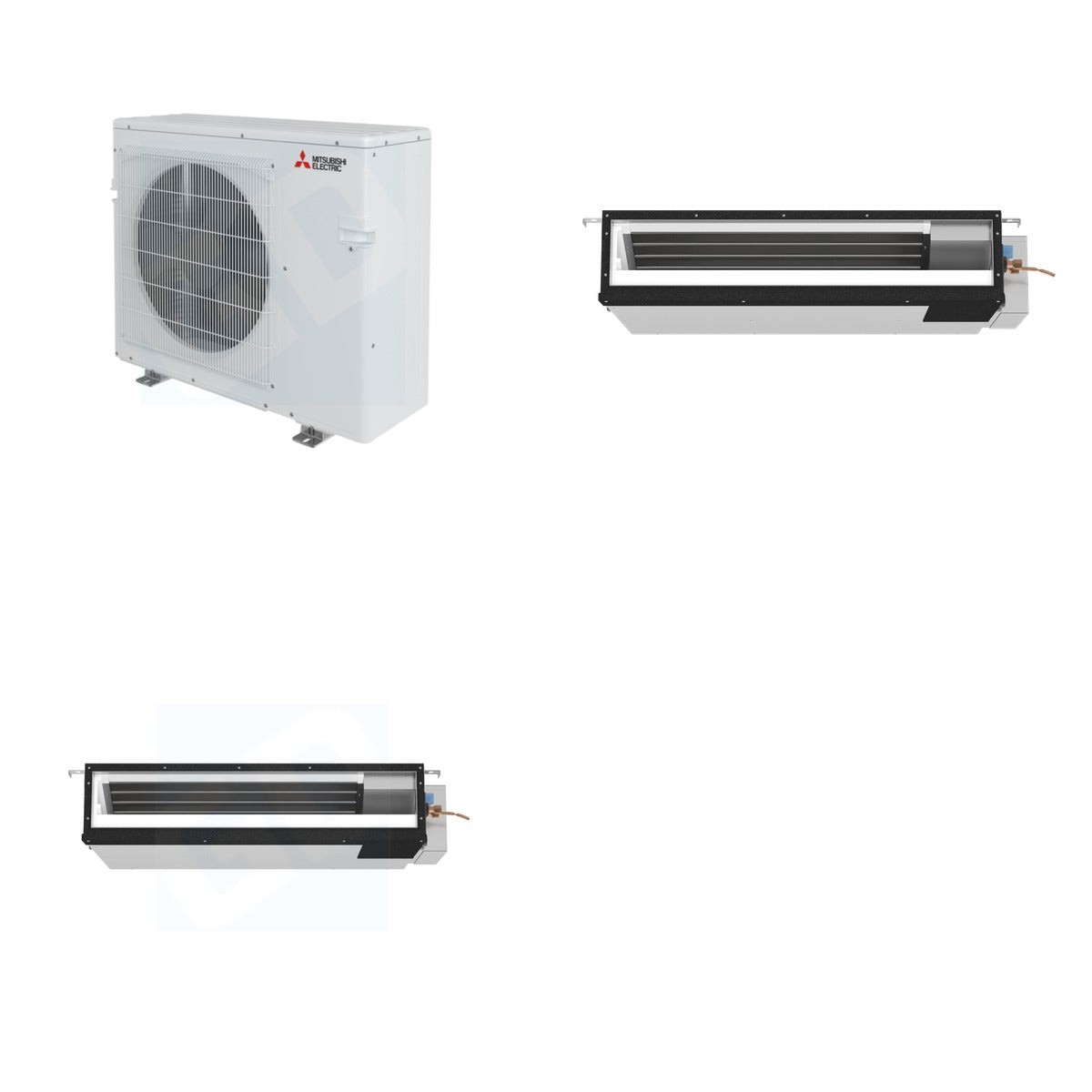

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-4D30NL outdoor condenser and two concealed duct indoor units, the SEZ-AD09NL and SEZ-AD18NL. Designed for optimal heating and cooling across multiple zones, this system is perfect for both residential and light commercial applications. The outdoor unit boasts a powerful 30k BTU capacity, while the indoor units provide flexible installation options and efficient operation. With advanced features like variable speed compressors and WiFi connectivity, this bundle ensures comfort and convenience year-round.

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser up to 4 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU (1.50 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x1)

Key Details

• Weight of Bundle: 229 lb (Mitsubishi 131 lb + Mitsubishi 40 lb + Mitsubishi 58 lb)
• Cooling BTU: 30000 (MXZ-4D30NL), 9000 (SEZ-AD09NL), 18000 (SEZ-AD18NL)
• Heating BTU: 36000 (MXZ-4D30NL), 10900 (SEZ-AD09NL), 18000 (SEZ-AD18NL)
• SEER Rating: 21 (MXZ-4D30NL)
• Voltage: 208/230V
• Dimensions: MXZ-4D30NL - 31.43 x 37.45 x 13 inches; SEZ-AD09NL - 7.875 x 31.125 x 27.5625 inches; SEZ-AD18NL - 7.875 x 46.875 x 27.5625 inches
• Weight: MXZ-4D30NL - 137 lbs; SEZ-AD09NL - 42 lbs; SEZ-AD18NL - 60 lbs
• Refrigerant Type: R454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications in residential and light commercial spaces. The outdoor condenser is compatible with the included indoor units, providing efficient climate control across various configurations. Designed for discreet installation, the concealed duct units can be placed in attics, ceilings, or walls, making them perfect for spaces where aesthetics are a priority.
