Mitsubishi Multi-Zone 28600 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 18K+18K

Description

This bundle features a powerful combination of Mitsubishi Electric HVAC products designed to provide efficient heating and cooling for both residential and light commercial applications. The Mitsubishi Electric MXZ-4D30NL outdoor condenser, with a capacity of 30,000 BTU, is ideal for multi-zone setups, ensuring comfort across various spaces. Paired with two SEZ-AD18NL concealed duct air handling units, each offering 18,000 BTU, this bundle delivers exceptional performance while maintaining a low profile for seamless integration. Together, these units create a versatile and efficient climate control system that meets diverse needs.

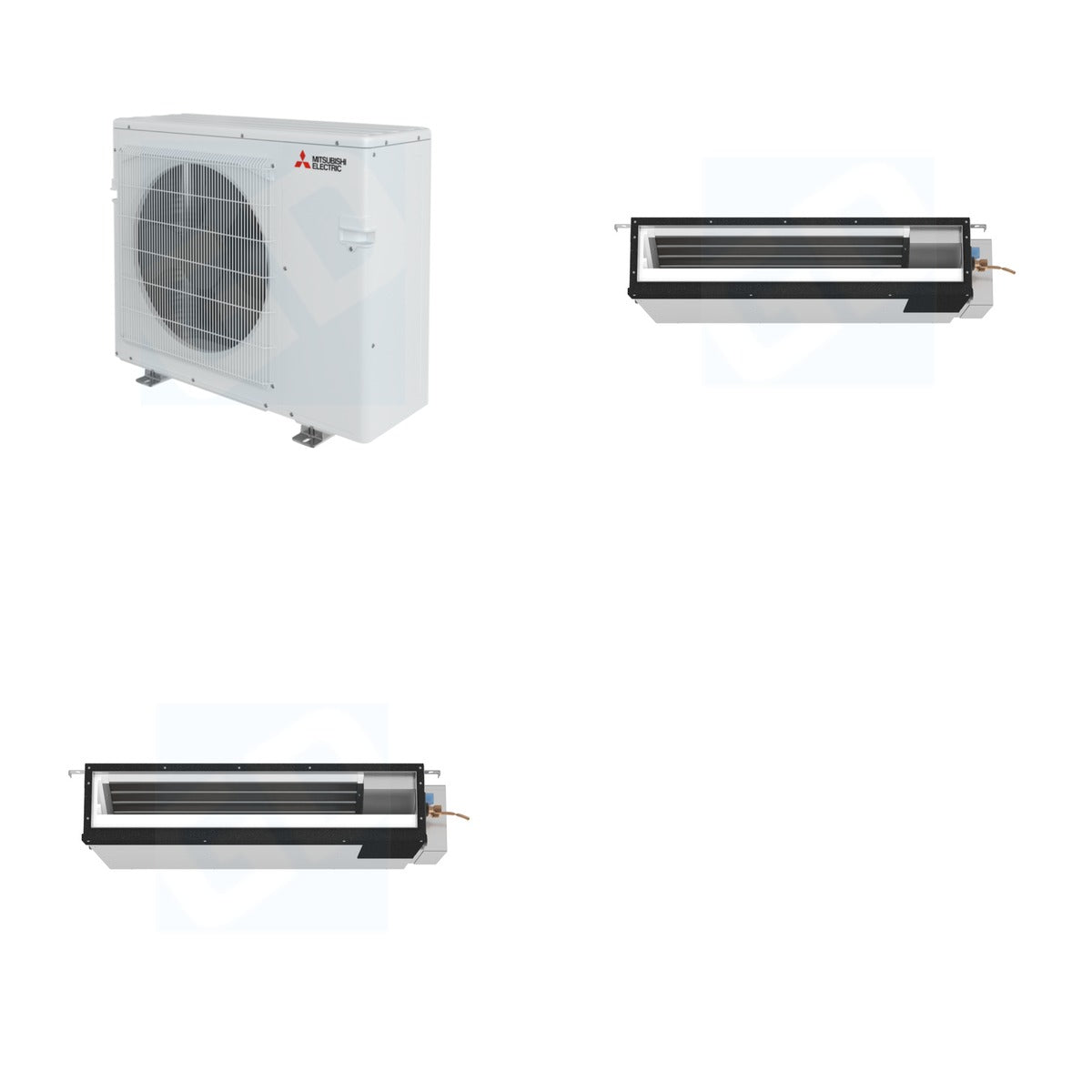

What's Included

• MITSUBISHI ELECTRIC MXZ-4D30NL - Mitsubishi Electric MXZ-4D30NL 30k BTU (2.5 Ton) M-Series Outdoor Condenser up to 4 Zones (Qty x1)

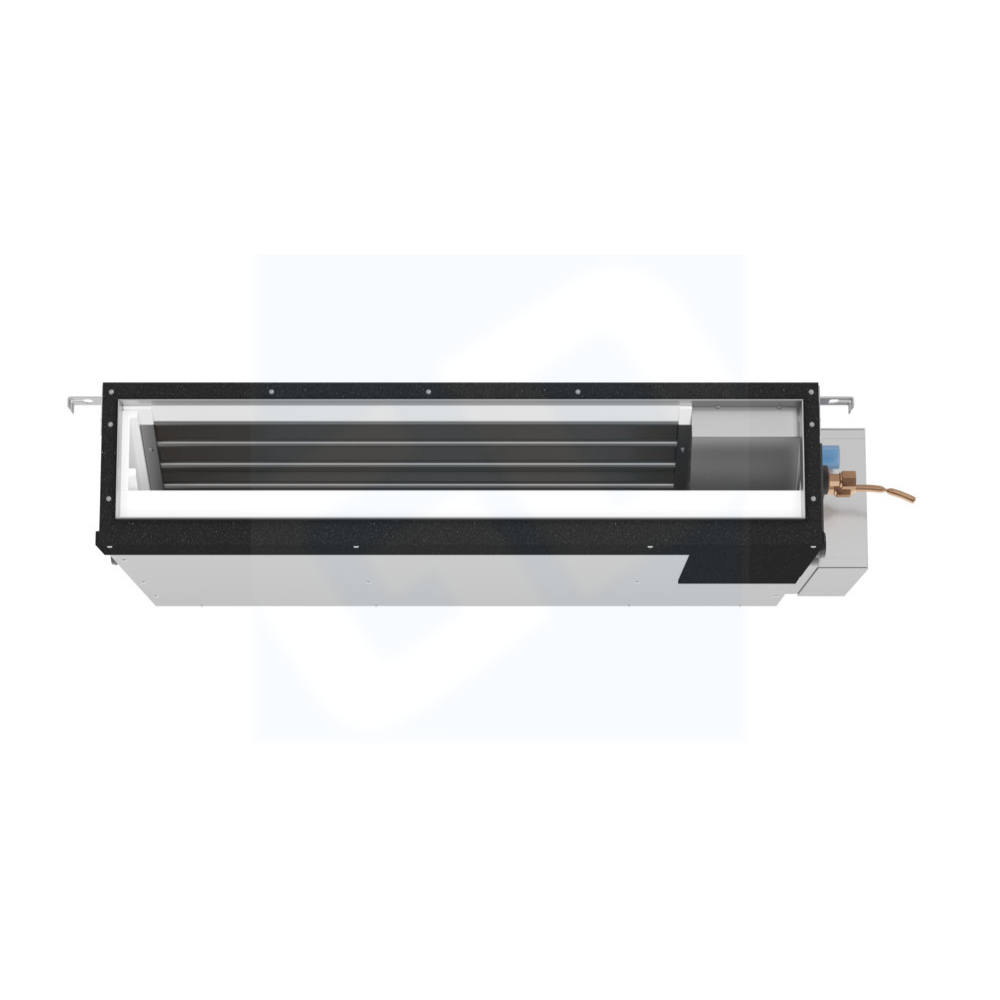

• MITSUBISHI ELECTRIC SEZ-AD18NL - Mitsubishi Electric SEZ-AD18NL 18k BTU (1.50 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)

Key Details

• Weight of Bundle: 247 lb (Mitsubishi 131 lb + Mitsubishi 116 lb)
• Cooling BTU: 30000
• Heating BTU: 36000
• Decibel Level: 52 dBA (cooling), 56 dBA (heating)
• SEER Rating: 21
• Refrigerant Type: R454B
• Electrical Requirements: 208/230V 1 Phase 60 Hz
• Dimensions (Outdoor Unit): 31.43 x 37.45 x 13 inches
• Weight (Outdoor Unit): 137 lbs
• Dimensions (Indoor Unit): 46-7/8 x 27-9/16 x 7-7/8 inches
• Weight (Indoor Unit): 60 lbs

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it perfect for both residential and light commercial spaces. The outdoor condenser is compatible with the included ducted air handling units, providing a comprehensive solution for efficient climate control.
