Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K

Description

This Mitsubishi Electric bundle is designed for optimal climate control in multi-zone applications, combining powerful outdoor and indoor units for efficient heating and cooling. The MXZ-3D24NL outdoor condenser supports up to three indoor air handlers, making it perfect for homes or offices with varying temperature needs. Paired with the MSZ-GX06NL and MSZ-GX09NL wall-mounted air handlers, this bundle provides comprehensive coverage for spaces up to 250 square feet and beyond. Each component features advanced technology, including built-in Wi-Fi for smart control and energy-saving modes, ensuring comfort and convenience throughout the year.

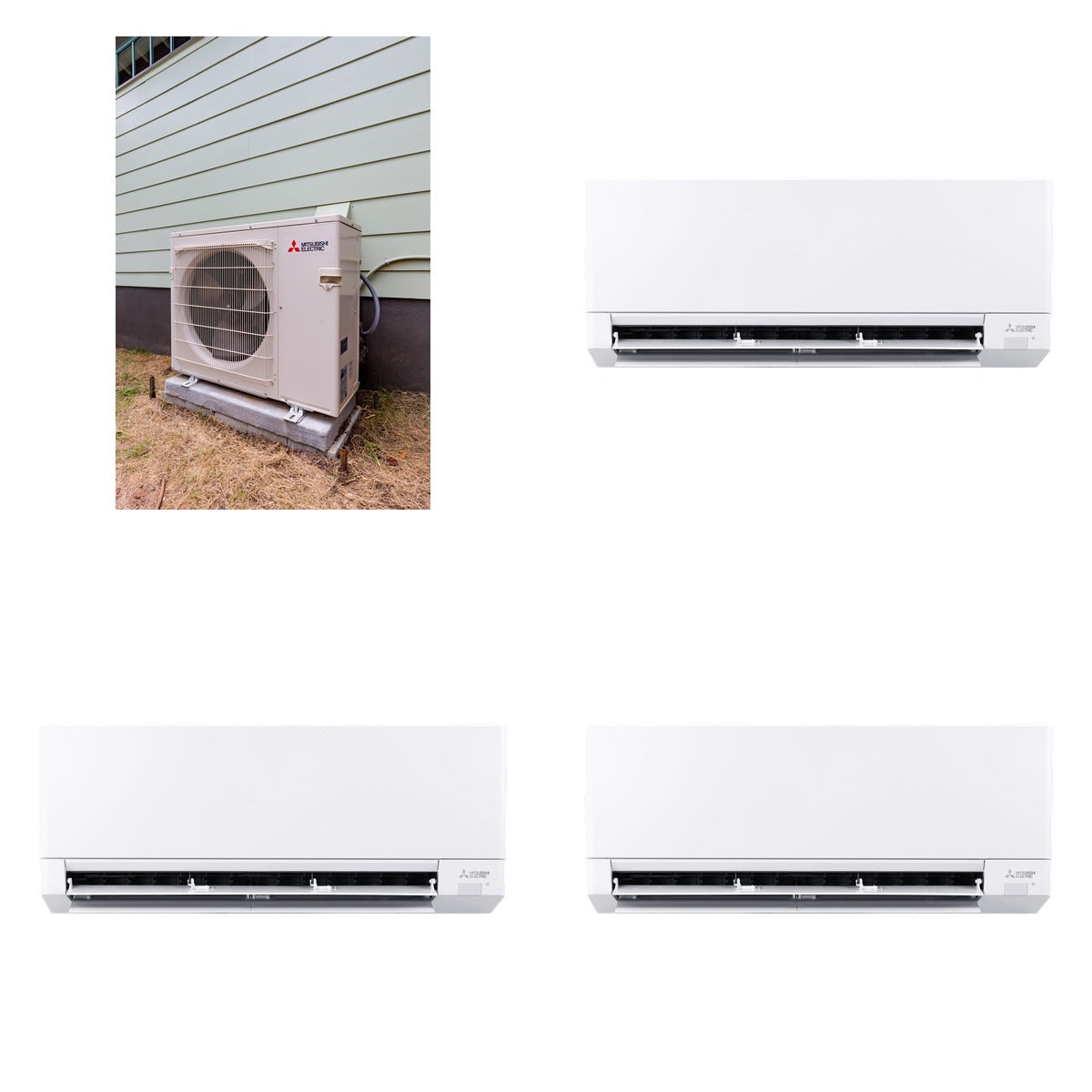

What's Included

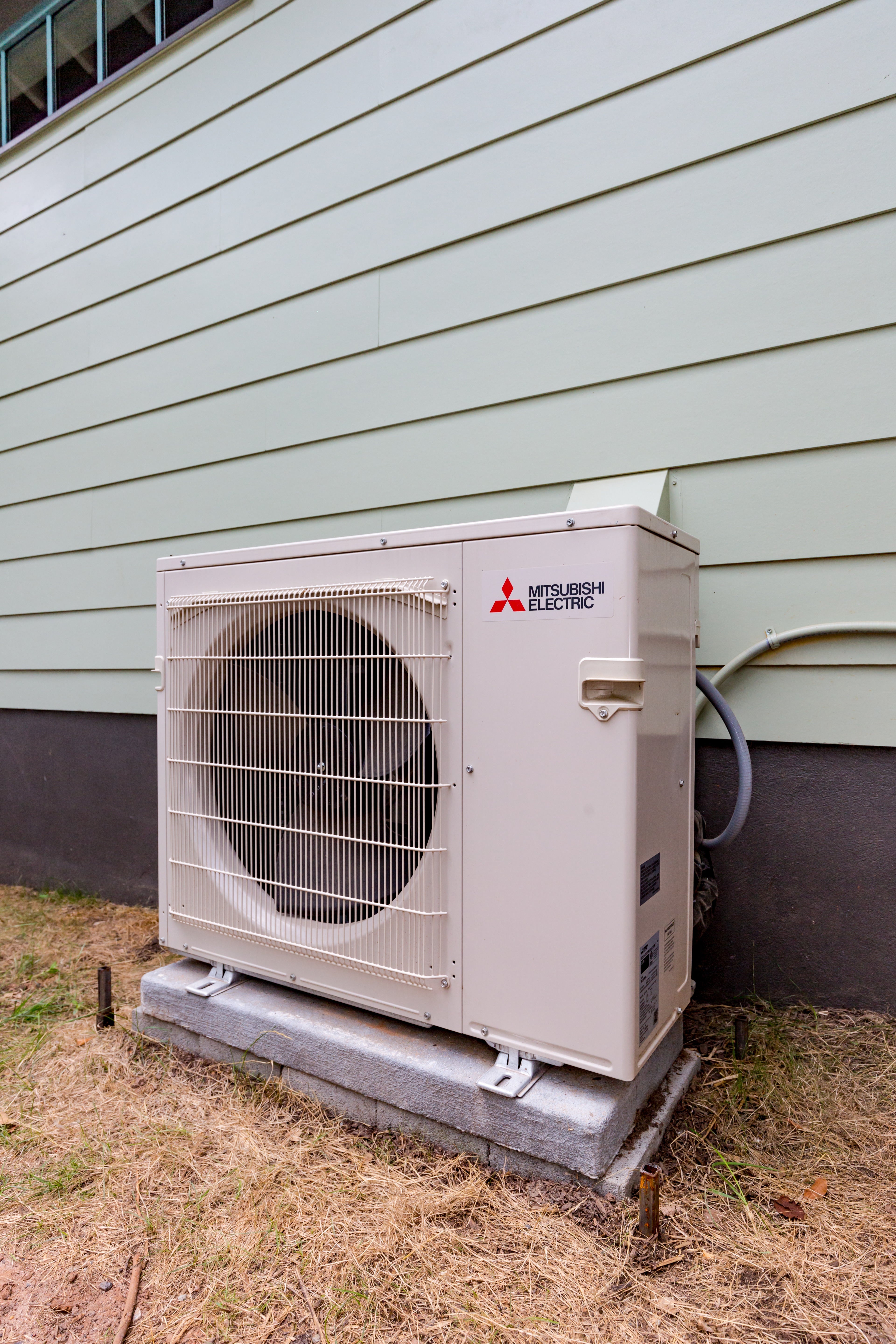

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU M-Series Outdoor Condenser up to 3 Zones (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)

Key Details

• Weight of Bundle: 190 lb (Mitsubishi 124 lb + Mitsubishi 22 lb + Mitsubishi 44 lb)
• Outdoor Unit Capacity: 24,000 BTU
• Indoor Unit Capacities: 6,000 BTU (GX06NL), 9,000 BTU (GX09NL)
• Cooling Mode: Up to 22,000 BTU/hr
• Heating Mode: Up to 30,600 BTU/hr
• SEER Rating: 20 (MXZ-3D24NL), Up to 28.4 (MSZ-GX Series)
• HSPF Rating: 10 (MXZ-3D24NL), Up to 11 (MSZ-GX Series)
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Noise Level: As low as 19 dB(A)
• Dimensions: MXZ-3D24NL - 31-11/32 in H x 37-11/32 in W x 13 in D; MSZ-GX06NL - 11 37/48 in H x 31 19/48 in W x 9 31/48 in D; MSZ-GX09NL - 11 37/48 in H x 31 19/48 in W x 9 31/48 in D

Use & Compatibility

This bundle is ideal for residential or light commercial applications requiring efficient heating and cooling across multiple zones. The MXZ-3D24NL outdoor condenser is compatible with various indoor units, including the MSZ-GX06NL and MSZ-GX09NL, allowing for flexible installation options in homes or offices.
