Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K

Description

The Mitsubishi Electric HVAC bundle is designed for optimal climate control across multiple zones in residential or commercial spaces. This comprehensive package includes a powerful 24,000 BTU outdoor condenser unit, three versatile indoor ceiling cassette units, and matching air distribution grilles. The combination of these components allows for efficient heating and cooling, ensuring that every corner of your space remains comfortable. With advanced features like variable speed inverter technology and customizable airflow patterns, this bundle is perfect for those looking to enhance their indoor environment while maintaining energy efficiency.

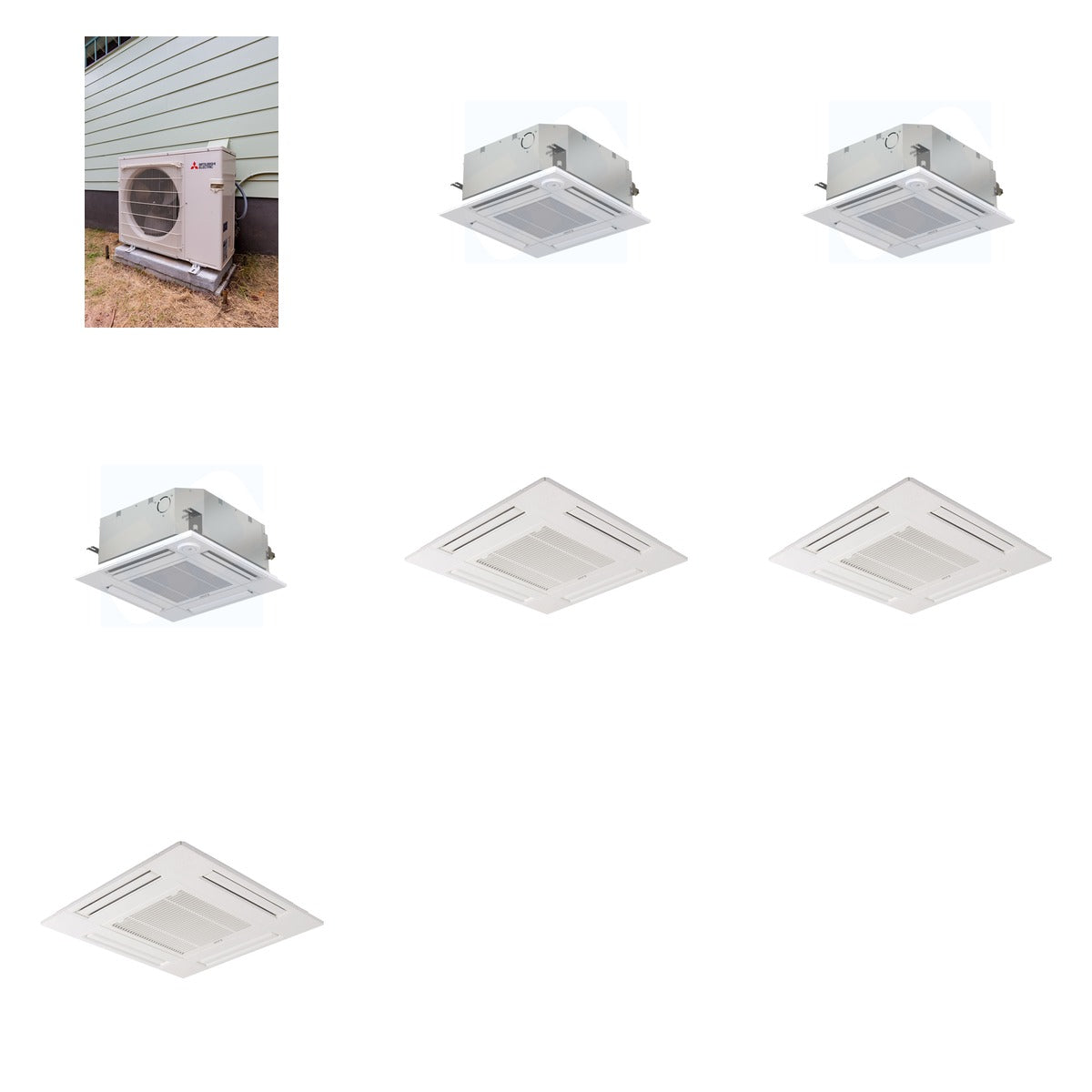

What's Included

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser (Qty x1)

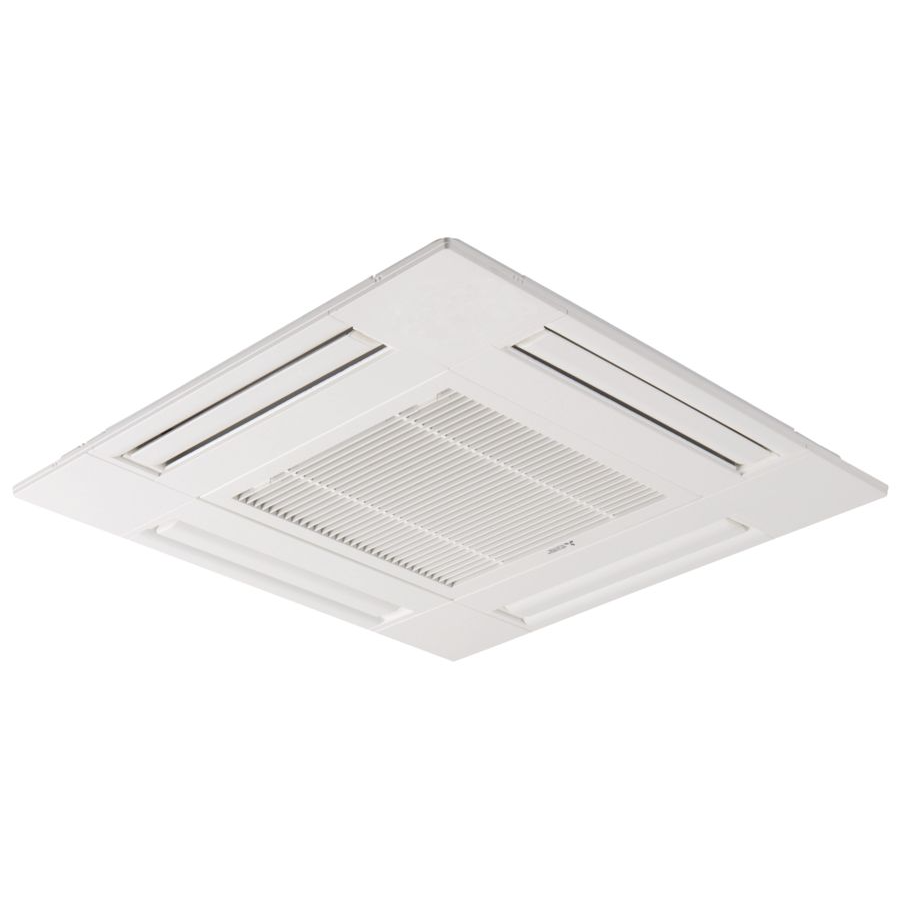

• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 244 lb (Mitsubishi 124 lb + Mitsubishi 99 lb + Mitsubishi 21 lb)
• Outdoor Unit Capacity: 24,000 BTU
• Indoor Unit Capacity: 9,000 BTU per unit
• Refrigerant Type: R-454B
• Cooling SEER Rating: 20
• Heating HSPF Rating: 10
• Voltage: 208/230 V
• Sound Level: 25 dB (minimum indoor unit)
• Dimensions (Outdoor Unit): 31-11/32 in H x 13 in L x 37-11/32 in W
• Dimensions (Indoor Unit): 8 3/16 in H x 22 7/16 in W x 22 7/16 in D

Use & Compatibility

This HVAC bundle is ideal for both residential and commercial applications, providing efficient heating and cooling for up to three zones. The outdoor condenser connects seamlessly with the indoor ceiling cassette units, which are designed to fit flush in standard ceiling grids. This setup is perfect for spaces requiring flexible temperature control and optimal air distribution.
