Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Mini Split Heat Pump System - 9K+9K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-3D24NL outdoor condenser and two MSZ-GX09NL wall-mounted air handlers, designed to work seamlessly together for optimal climate control in multi-zone environments. With a total capacity of 24,000 BTU from the condenser and 9,000 BTU from each air handler, this setup ensures efficient heating and cooling across three distinct zones. The advanced technology in these units, including variable speed inverter compressors and R454B refrigerant, not only enhances energy efficiency but also promotes environmental sustainability. Ideal for residential or commercial applications, this bundle provides a perfect solution for those seeking comfort and control.

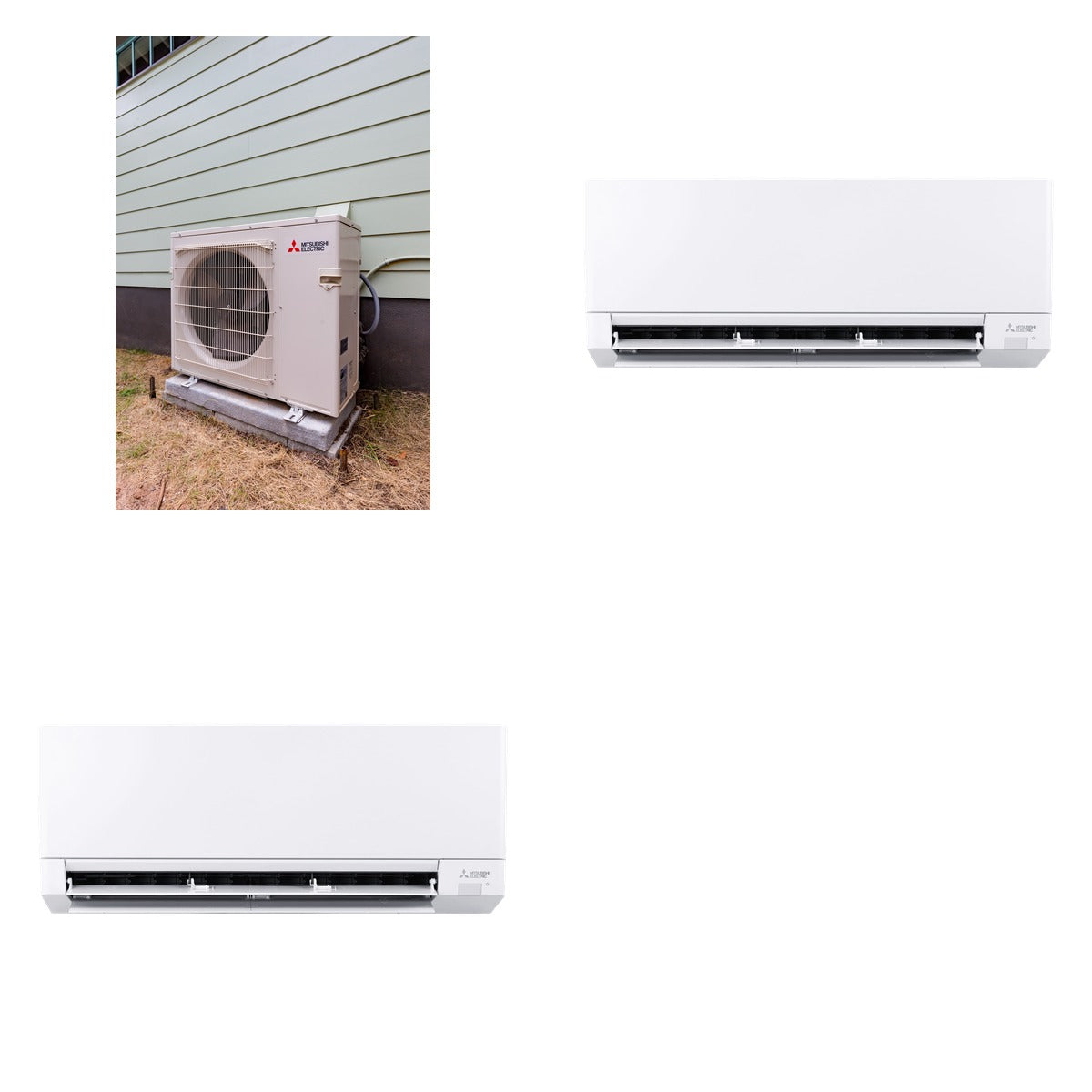

What's Included

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)

Key Details

• Weight of Bundle: 168 lb (Mitsubishi 124 lb + Mitsubishi 44 lb)
• Cooling Capacity: 24,000 BTU (Condenser), 9,000 BTU (Air Handlers)
• Heating Capacity: 30,600 BTU (Condenser), 10,900 BTU (Air Handlers)
• SEER Rating: 20 (Condenser), Up to 28.4 (Air Handlers)
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Sound Level: 51 dBA (Condenser), 19 dB - 43 dB (Air Handlers)
• Dimensions: 31-11/32 in H x 13 in L x 37-11/32 in W (Condenser)

Use & Compatibility

This bundle is designed for residential and commercial applications, providing efficient heating and cooling for up to three zones. The outdoor condenser connects to various indoor unit types, making it compatible with the included wall-mounted air handlers, ensuring optimal performance and comfort throughout your space.
