Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 2-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+18K

Description

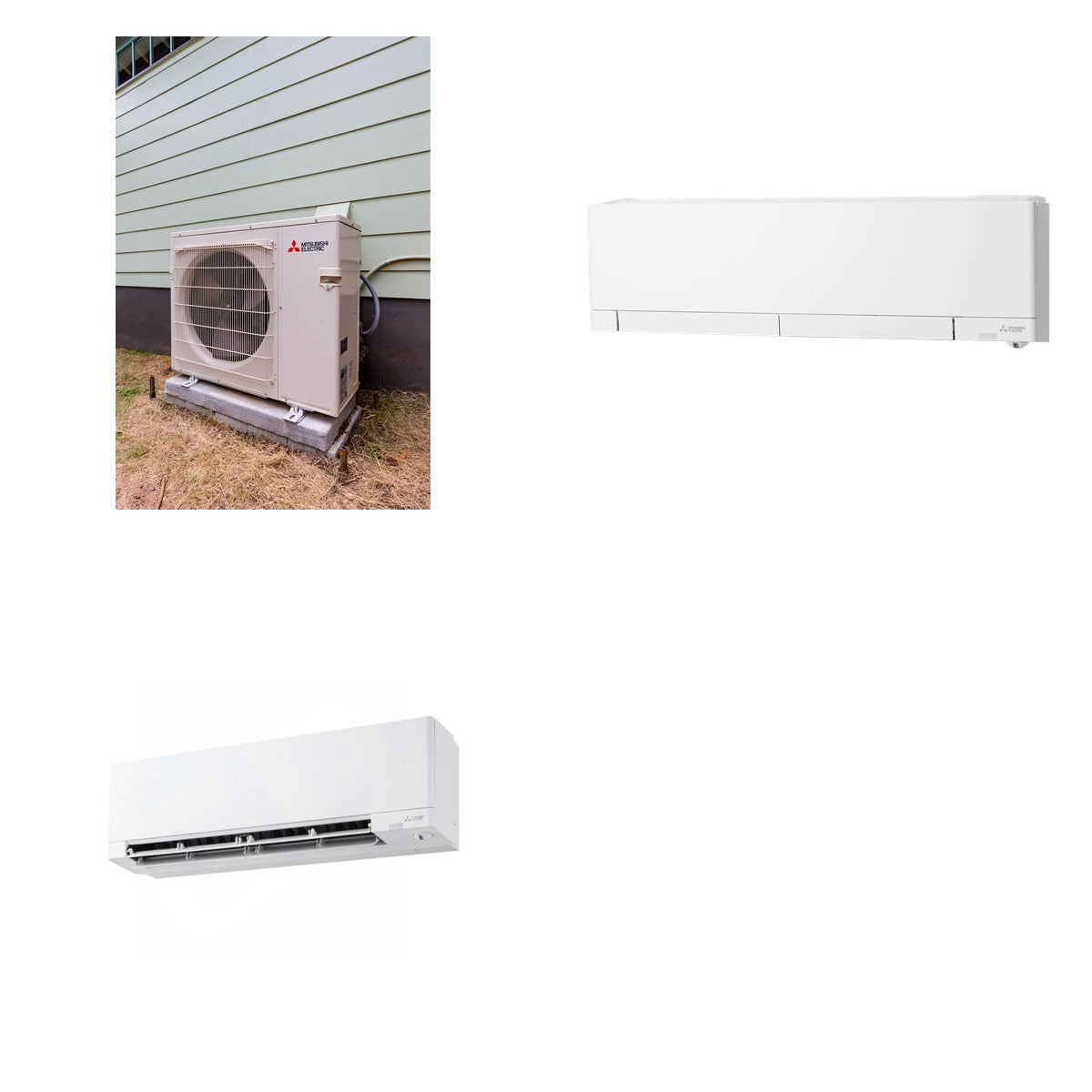

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-3D24NL outdoor condenser and two wall-mounted air handlers, the MSZ-FX06NL and MSZ-FX18NL. Designed for multi-zone applications, this setup allows for efficient temperature control across three zones, making it ideal for both residential and commercial spaces. The outdoor unit boasts a powerful 24,000 BTU capacity, while the indoor units provide flexible heating and cooling options with advanced features such as Wi-Fi control and superior air filtration. Together, these components ensure optimal comfort, energy efficiency, and convenience.

What's Included

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL 6k BTU Wall Mounted Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL 18k BTU Wall Mounted Unit (Qty x1)

Key Details

• Weight of Bundle: 189.4 lb (Mitsubishi 124 lb + Mitsubishi 29 lb + Mitsubishi 36.4 lb)
• MXZ-3D24NL: 24,000 BTU, 2.0 Ton, SEER 20, EER 13.7, Heating Capacity 30,600 BTU
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, HSPF2 up to 13.3, Minimum Sound Level 20 dB
• MSZ-FX18NL: 18,000 BTU, SEER 25.5, HSPF 11.1, Minimum Sound Level 26 dB
• Refrigerant Type: R-454B for all units
• Voltage: 208/230 V for all units
• Indoor Unit Sizes: MSZ-FX06NL (up to 250 sq ft), MSZ-FX18NL (up to 750 sq ft)

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, providing flexibility for various room sizes and layouts. The outdoor condenser connects seamlessly with both wall-mounted units, which are compatible with single-zone or multi-zone setups, making it a versatile choice for diverse applications.
