Mitsubishi Multi-Zone 22000 BTU R-454B 20 SEER2 2-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K

Description

The Mitsubishi Electric HVAC bundle is expertly designed to provide efficient heating and cooling solutions for both multi-zone and single-zone applications. This comprehensive package includes a powerful outdoor condenser, versatile air handlers, and essential distribution grilles, ensuring optimal climate control for various spaces. The combination of high-capacity units and advanced refrigerant technology not only enhances comfort but also promotes energy efficiency, making it an ideal choice for modern homes and businesses.

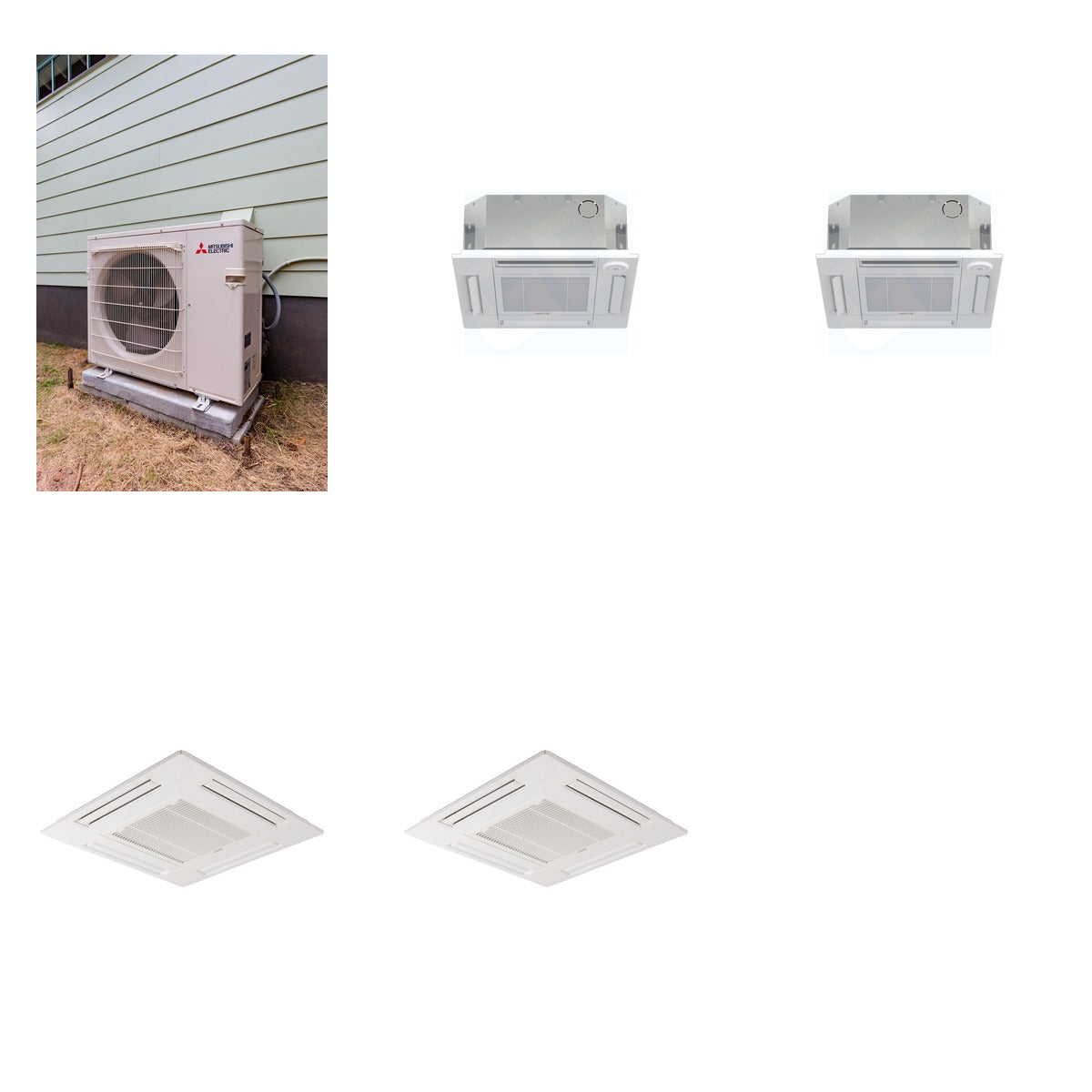

What's Included

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser (Qty x1)

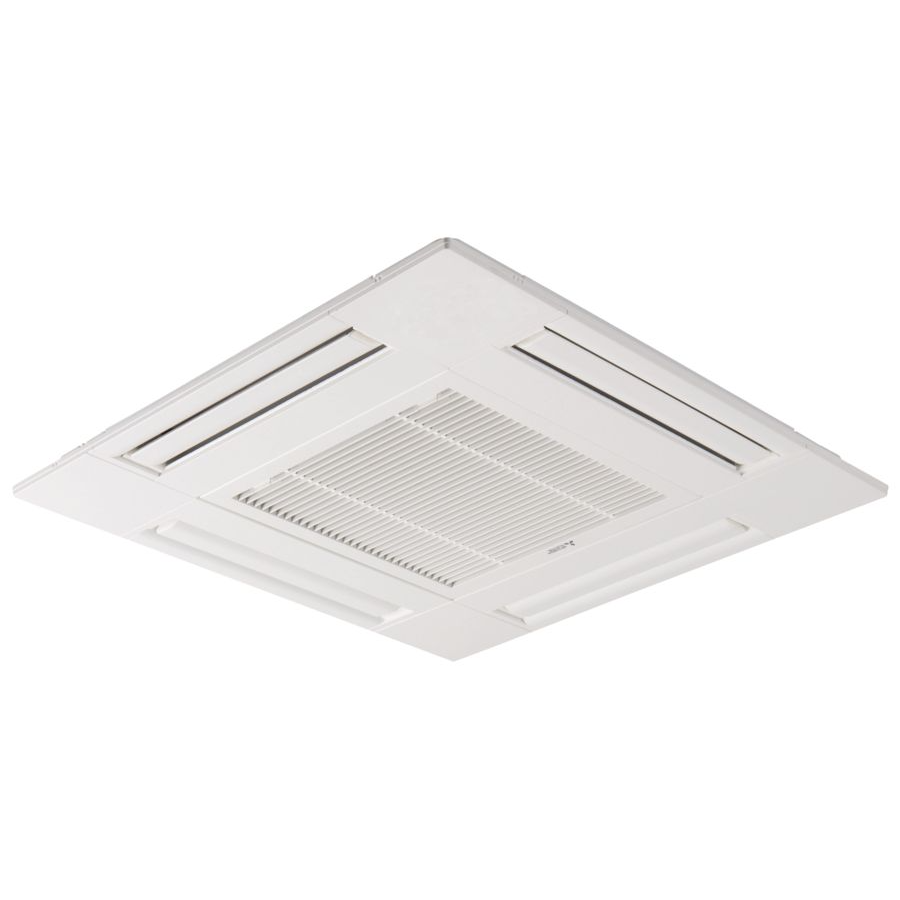

• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x2)

Key Details

• Weight of Bundle: 204 lb (Mitsubishi 124 lb + Mitsubishi 66 lb + Mitsubishi 14 lb)
• Outdoor Condenser Capacity: 24,000 BTU
• Air Handler Capacity: 12,000 BTU
• Refrigerant Type: R-454B
• Cooling Mode: Yes
• Heating Mode: Yes
• Number of Zones Supported: 3
• Voltage Rating: 208/230 V
• Cooling Sound Level: 51 dBA
• Heating Sound Level: 55 dBA
• Airflow (Cooling): 230-335 CFM
• Airflow (Heating): 230-335 CFM
• Dimensions of Air Handler: 22-7/16 x 22-7/16 x 8-4/16 inches

Use & Compatibility

This bundle is designed for residential and commercial applications, providing efficient climate control for various environments. The outdoor condenser connects seamlessly with the included air handlers, which can be mounted in single or multi-zone configurations. Ideal for use in homes, offices, and other spaces requiring precise temperature management.
