Mitsubishi Multi-Zone 22000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 12K+12K

Description

This comprehensive HVAC bundle includes essential components for an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-3D24NL outdoor condenser serves as the powerhouse, capable of supporting up to three indoor units, while the two SVZ-AP12NL ducted air handlers provide optimal air distribution and temperature control. Designed for both residential and light commercial applications, this bundle ensures reliable performance and energy efficiency, making it an ideal choice for those looking to enhance their indoor climate comfort.

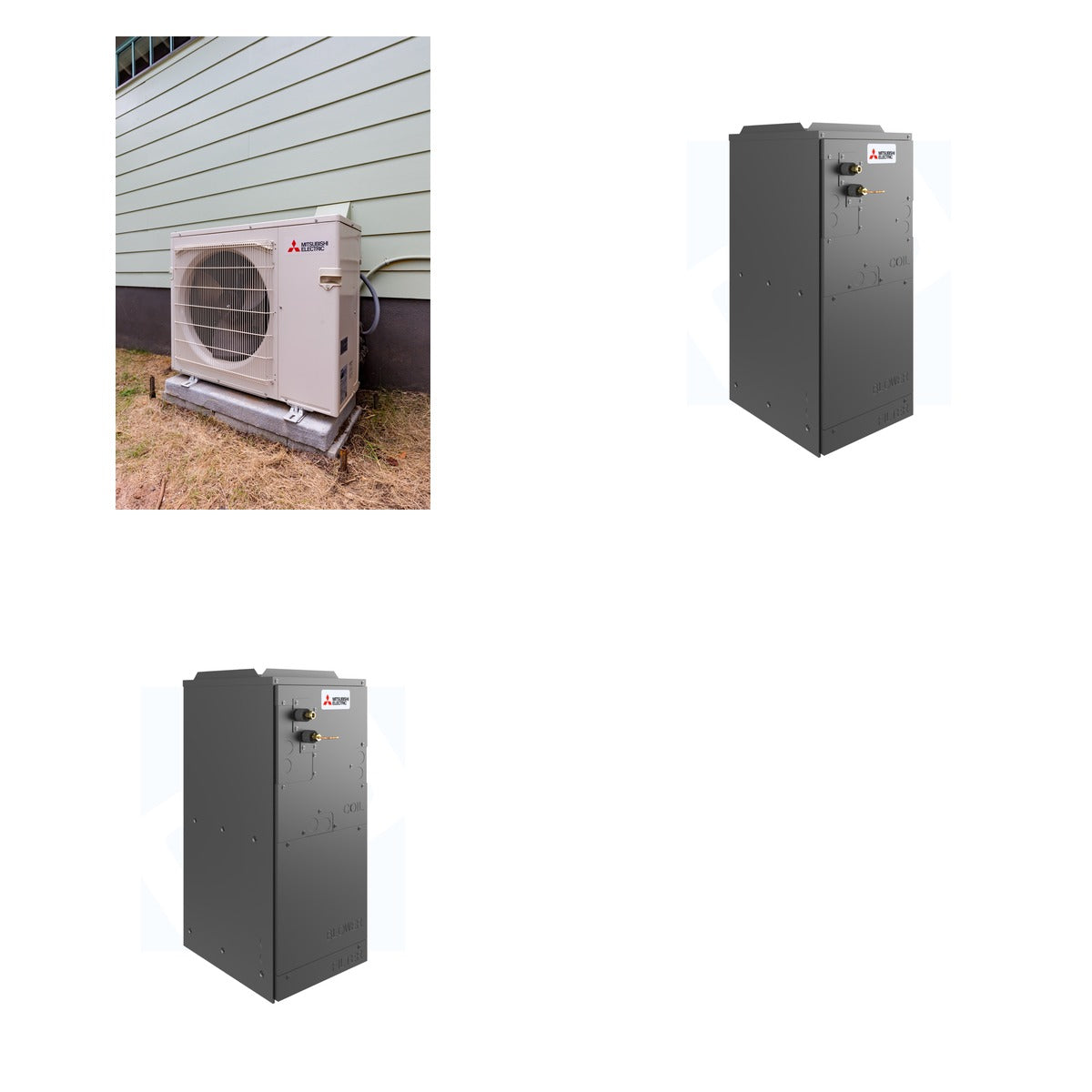

What's Included

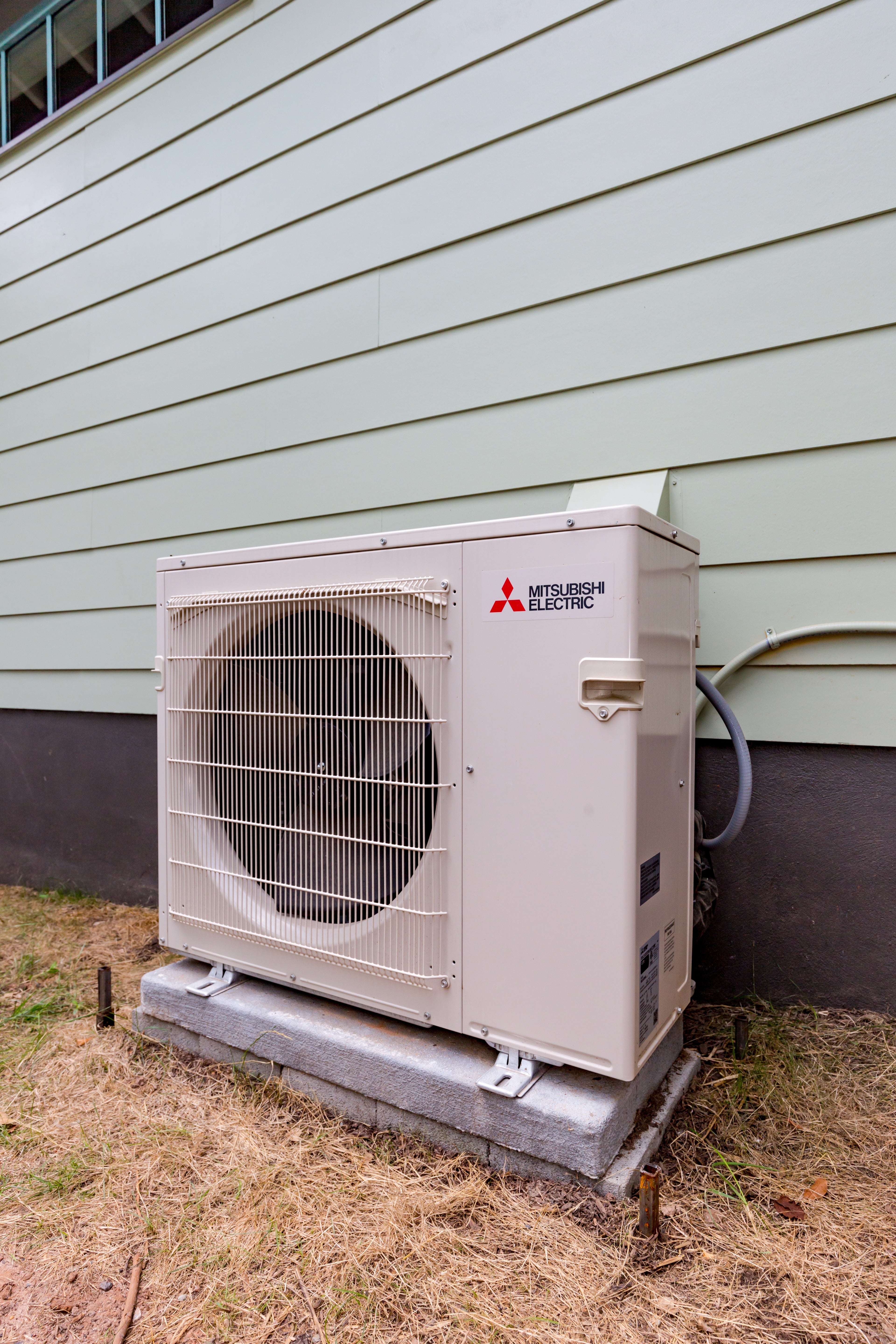

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU M-Series Outdoor Condenser up to 3 Zones (Qty x1)

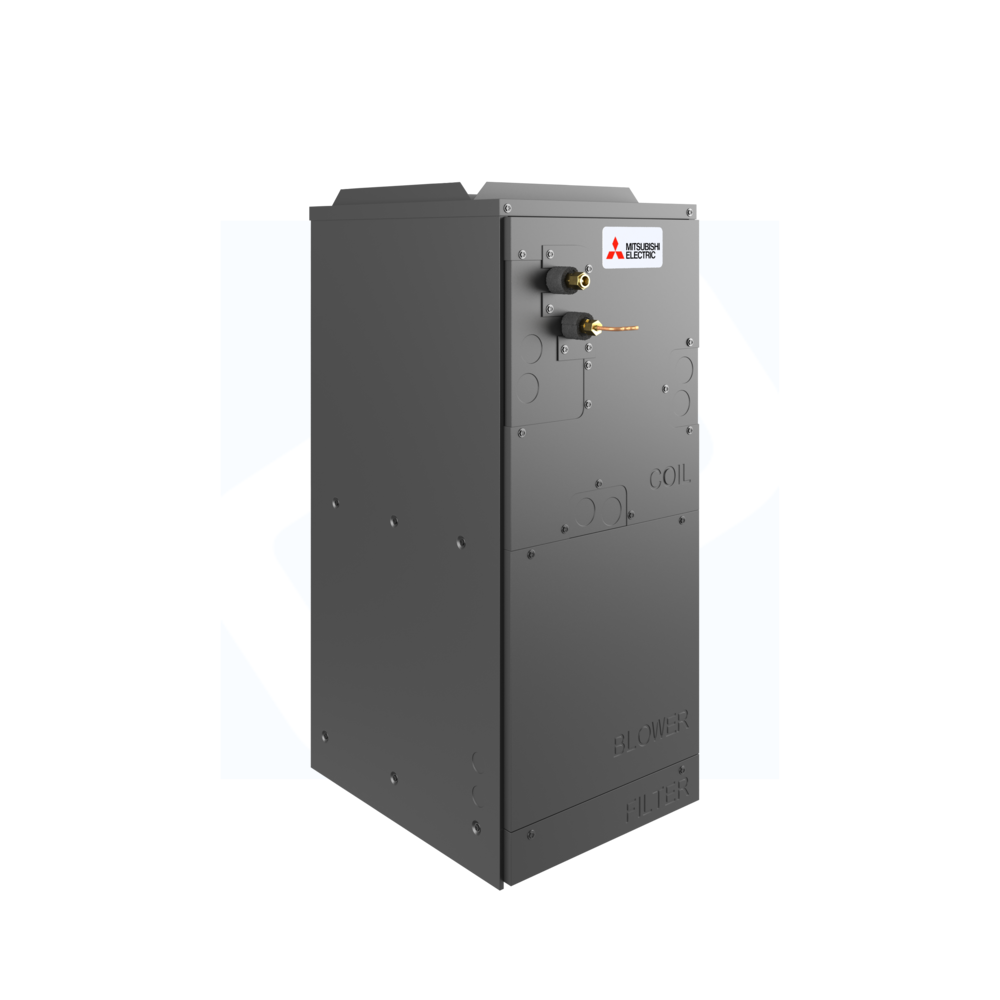

• MITSUBISHI ELECTRIC SVZ-AP12NL - Mitsubishi Electric SVZ-AP12NL AP-Series Ducted Air Handler Indoor Unit - Single-Zone - 12k BTU - R-454B (Qty x2)

Key Details

• Weight of Bundle: 318 lb (Mitsubishi 124 lb + Mitsubishi 194 lb)
• Outdoor Condenser Capacity: 24,000 BTU
• Indoor Unit Capacity: 12,000 BTU each
• Cooling Mode: 22,000 BTU/hr (Condenser), 11,400 BTU/hr (Air Handler)
• Heating Mode: 30,600 BTU/hr (Condenser), 15,000 BTU/hr (Air Handler)
• SEER Rating: 20
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Noise Level: 51 dBA (Condenser), 36-45 dBA (Air Handler)
• Dimensions: Condenser - 31-11/32 x 13 x 37-11/32 inches; Air Handler - 17 x 21-5/8 x 39-13/16 inches

Use & Compatibility

This bundle is designed for efficient heating and cooling in residential and light commercial spaces. The outdoor condenser is compatible with up to three indoor units, providing flexibility in installation and temperature control. The ducted air handlers can be installed in various orientations, making them suitable for a range of applications.
