Mitsubishi Multi-Zone 22000 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+12K

Description

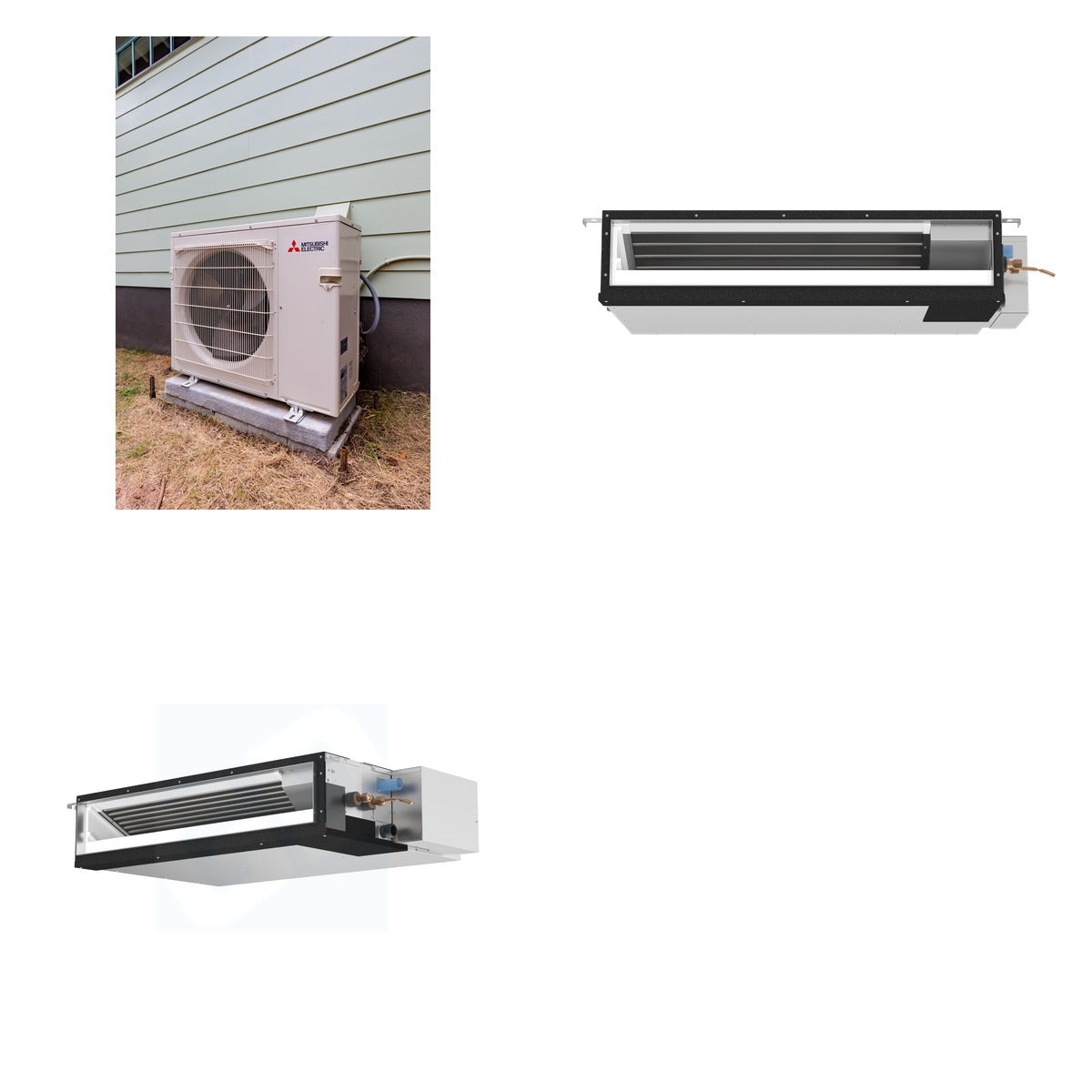

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-3D24NL outdoor condenser and two concealed duct indoor units, the SEZ-AD09NL and SEZ-AD12NL. Designed for multi-zone applications, this combination allows for efficient heating and cooling across multiple rooms, ensuring optimal comfort throughout your space. The outdoor unit's powerful 24,000 BTU capacity pairs seamlessly with the indoor units, which provide discreet installation options and quiet operation. With advanced features like variable speed compressors and smart control options, this bundle is perfect for both residential and commercial settings.

What's Included

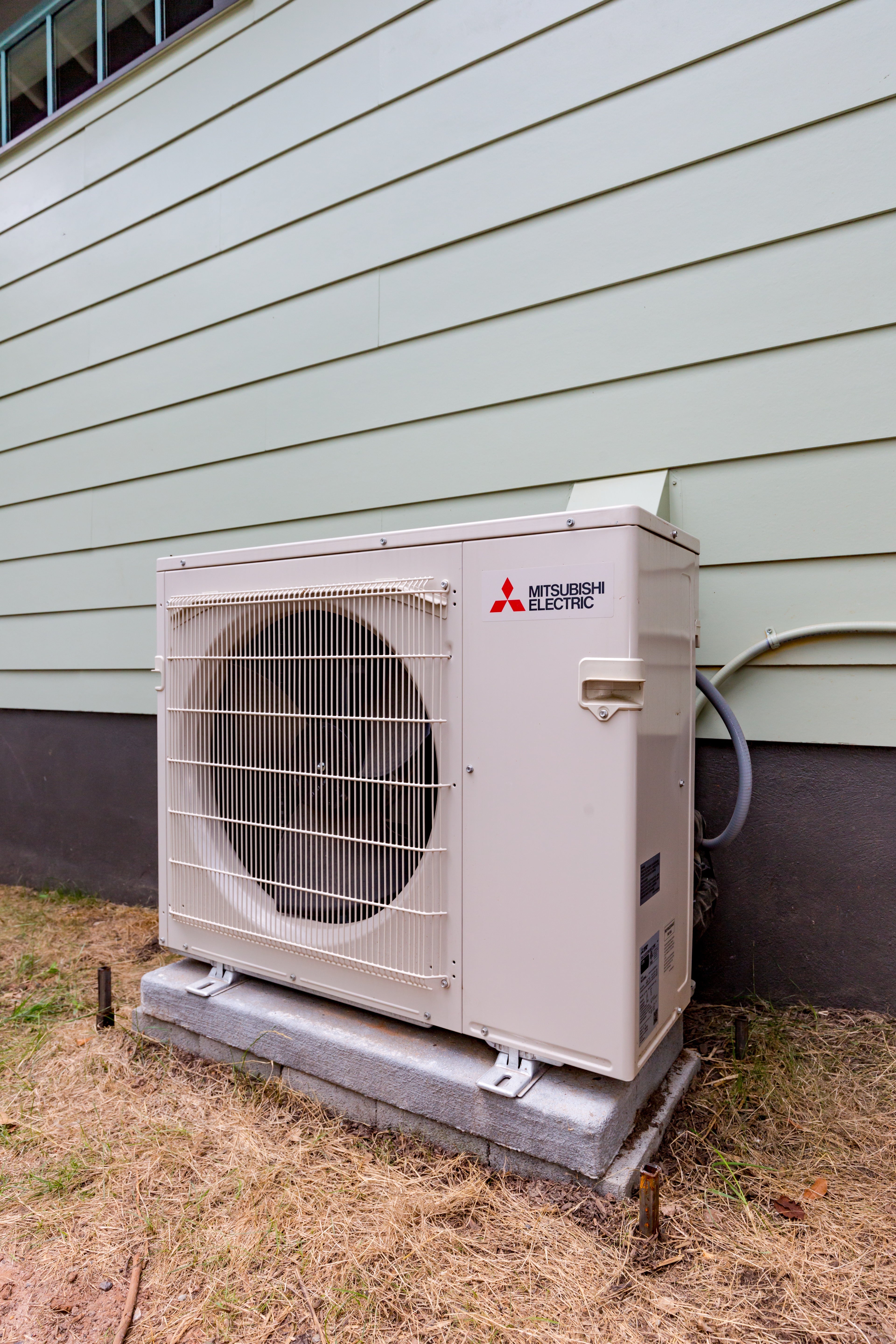

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU Concealed Duct AHU (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU Concealed Duct AHU (Qty x1)

Key Details

• Weight of Bundle: 213 lb (Mitsubishi 124 lb + Mitsubishi 40 lb + Mitsubishi 49 lb)
• Cooling Capacity: 24,000 BTU (MXZ-3D24NL)
• Heating Capacity: 30,600 BTU (MXZ-3D24NL)
• Indoor Units: 9,000 BTU (SEZ-AD09NL), 12,000 BTU (SEZ-AD12NL)
• SEER Rating: 20 (MXZ-3D24NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Noise Level: 30 dB (SEZ-AD09NL), 23 dB (SEZ-AD12NL)
• Dimensions: MXZ-3D24NL - 31-11/32 in H x 37-11/32 in W x 13 in L
• Weight: SEZ-AD09NL - 42 lbs, SEZ-AD12NL - 73 lbs

Use & Compatibility

This bundle is ideal for residential and commercial applications requiring efficient climate control across multiple zones. The outdoor condenser supports up to three indoor units, making it compatible with various configurations. The concealed duct units are designed for discreet installation in attics, ceilings, or walls, providing versatile options for any space.
