Mitsubishi Multi-Zone 22000 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 12K+12K

Description

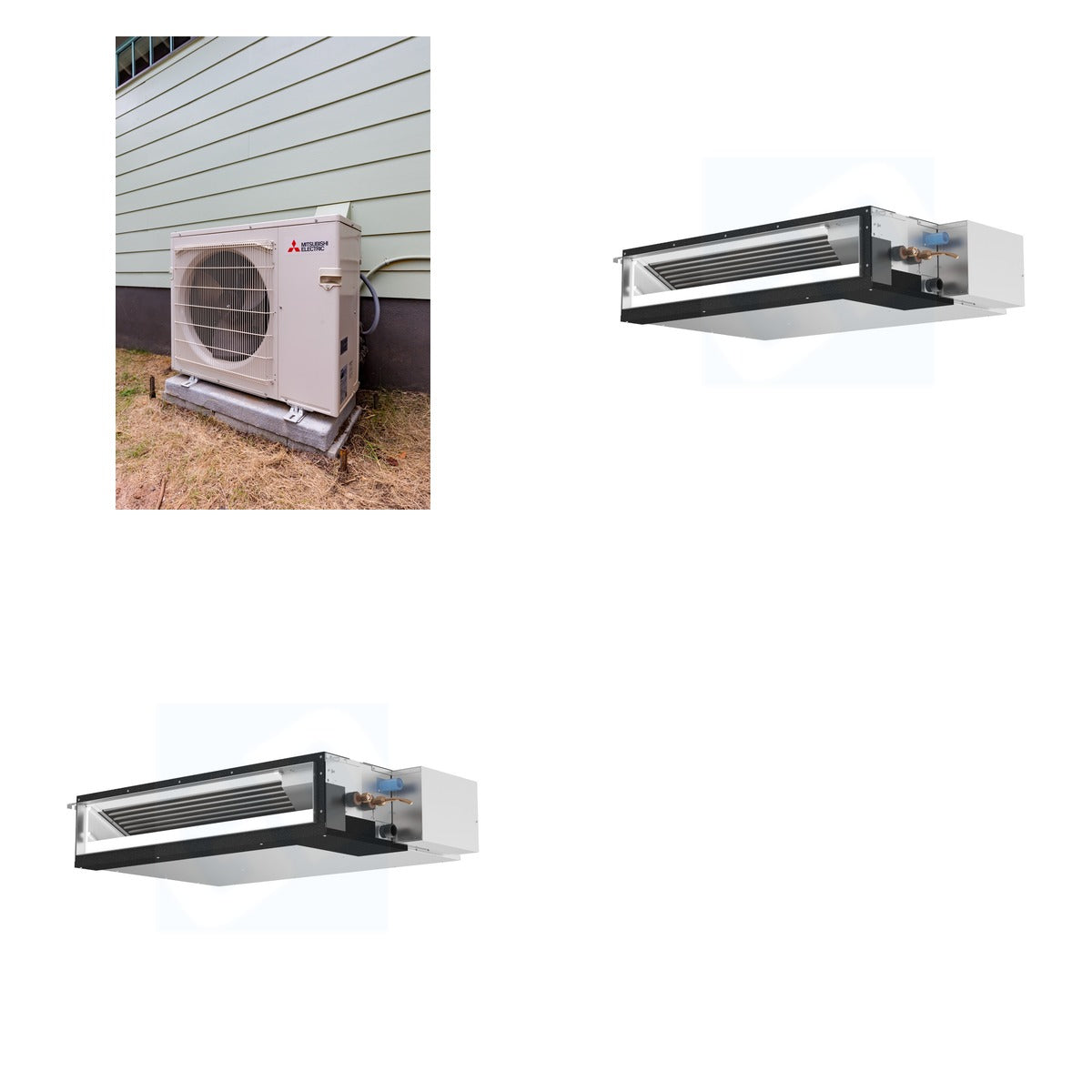

This bundle features the Mitsubishi Electric MXZ-3D24NL outdoor condenser and two SEZ-AD12NL concealed duct indoor units, creating a versatile and efficient multi-zone heating and cooling system. The MXZ-3D24NL, with its 24,000 BTU capacity, is designed to connect to up to three indoor units, making it perfect for larger spaces or homes with varying temperature needs. The SEZ-AD12NL units, each providing 12,000 BTU, are ideal for discreet installation in short-run ducting, ensuring quiet operation and effective climate control. Together, these components deliver a comprehensive solution for maintaining optimal comfort in multiple areas of your home or business.

What's Included

• MITSUBISHI ELECTRIC MXZ-3D24NL - Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD12NL - Mitsubishi Electric SEZ-AD12NL 12k BTU (1.00 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)

Key Details

• Weight of Bundle: 222 lb (Mitsubishi 124 lb + Mitsubishi 98 lb)
• Cooling Capacity: 24,000 BTU (MXZ-3D24NL), 12,000 BTU (SEZ-AD12NL)
• Heating Capacity: 30,600 BTU (MXZ-3D24NL), 13,600 BTU (SEZ-AD12NL)
• SEER Rating: 20 (MXZ-3D24NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Number of Zones: 3 (MXZ-3D24NL), Multi-Zone Compatible (SEZ-AD12NL)
• Noise Level: 51 dBA (MXZ-3D24NL), 23-33 dB (SEZ-AD12NL)
• Dimensions (MXZ-3D24NL): 31-11/32 in H x 13 in L x 37-11/32 in W
• Dimensions (SEZ-AD12NL): 7-7/8 in H x 39 in W x 27-9/16 in D

Use & Compatibility

This bundle is designed for residential and light commercial applications, providing efficient heating and cooling for multiple zones. The MXZ-3D24NL outdoor condenser is compatible with various indoor units, including the SEZ-AD12NL, allowing for flexible installation options and tailored comfort solutions.
