Mitsubishi Multi-Zone 20000 BTU R-454B 16 SEER2 2-Zone Ducted Low-Static Mini Split Heat Pump System - 9K+9K

Description

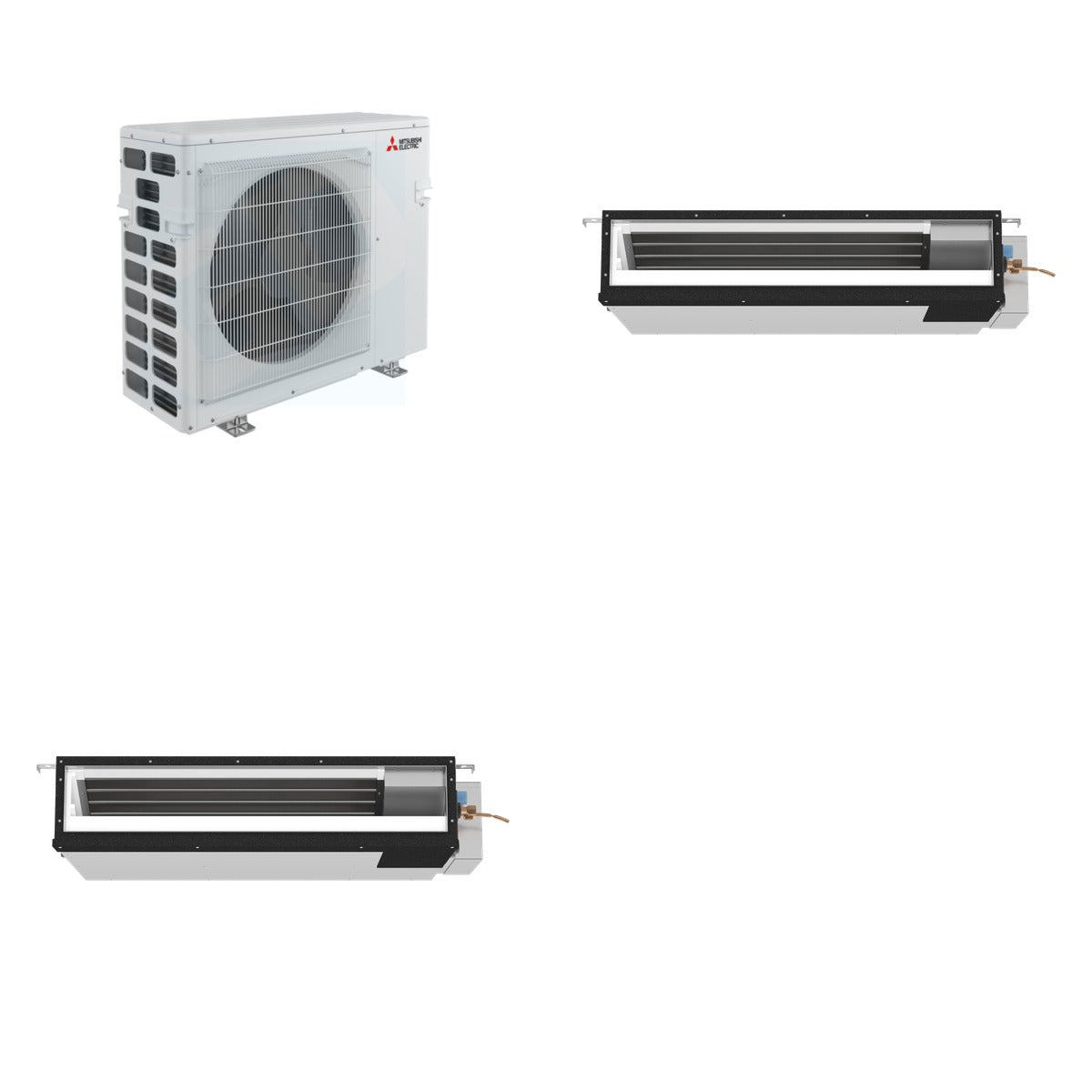

This bundle features the Mitsubishi Electric MXZ-2D20NL outdoor condenser and two SEZ-AD09NL concealed duct indoor units, creating a comprehensive mini-split system for efficient heating and cooling. The MXZ-2D20NL serves as a powerful outdoor unit with a capacity of 20,000 BTU, designed to support two indoor units for customized climate control. The SEZ-AD09NL indoor units, with a capacity of 9,000 BTU each, are perfect for discreet installation and can effectively manage temperature in one or two rooms. Together, these components offer a versatile solution for multi-zone applications, ensuring optimal comfort and energy efficiency throughout your space.

What's Included

• MITSUBISHI ELECTRIC MXZ-2D20NL - Mitsubishi Electric MXZ-2D20NL 20k BTU (1.66 Ton) M-Series Outdoor Condenser up to 2 Zones (Qty x1)
• MITSUBISHI ELECTRIC SEZ-AD09NL - Mitsubishi Electric SEZ-AD09NL 9k BTU (0.75 Ton) 208/230V M-Series Concealed Duct AHU (R-454B) (Qty x2)

Key Details

• Weight of Bundle: 163 lb (Mitsubishi 83 lb + Mitsubishi 80 lb)
• Cooling BTU: 20000
• Heating Capacity: 24000 BTU
• Indoor Unit Cooling BTU: 9000
• Indoor Unit Heating Capacity: 10900 BTU
• Voltage: 208/230 Volts
• Maximum Sound Level: 55 dB (outdoor), 30 dB (indoor)
• Outdoor Unit Dimensions: 27 15/16" H x 33 1/16" W x 13" D
• Indoor Unit Dimensions: 7 7/8" H x 31 1/8" W x 27 9/16" D
• Refrigerant Type: R-454B

Use & Compatibility

This bundle is intended for residential or commercial applications requiring efficient heating and cooling across multiple zones. The outdoor condenser is compatible with the included concealed duct indoor units, making it ideal for homes or offices that need discreet climate control solutions.
