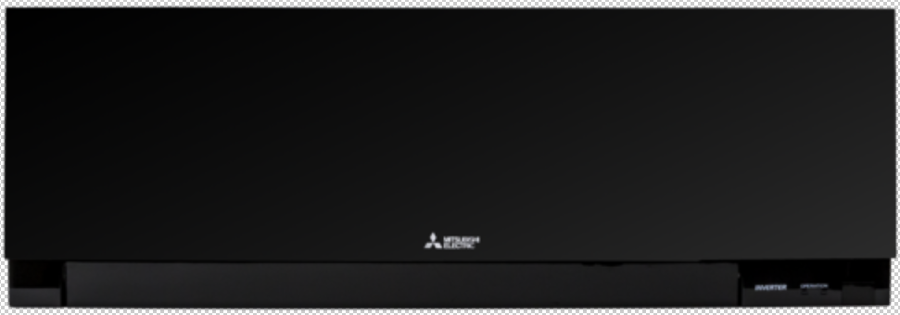

Mitsubishi MSZ-EF09NAB-U2 9,000 BTU Multi Zone Ductless Heat Pump Air Handler

Product Description

The Mitsubishi MSZ-EF09NAB-U2 is a 9,000 BTU ductless heat pump air handler designed for multi-zone systems. It features a wall-mounted configuration for efficient operation in different spaces. This unit pairs seamlessly with compatible outdoor condensers and offers advanced cooling solutions. Designed for minimal depth, it fits well in various room settings without taking up much space. Its quiet operation ensures comfort without disturbance.

• Operates as part of a multi-zone mini-split system.
• Advanced filtration system that captures and breaks down allergens.
• Includes multiple operating modes and airflow directions.

Product Highlights

Designed to deliver efficient heating and cooling, the M-series aims to manage indoor climate effectively.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: MSZ-EF09NAB-U2

Technical Specifications

• Cooling Capacity: 9,000 BTU/hour
• Heating Capacity: 10,000 BTU/hour
• Dimensions: 38.6 inches (length) x 14.2 inches (width) x 10.6 inches (height)
• Weight: 29 pounds
• Refrigerant Type: R-410A
• Electrical: 208-230 VAC, single-phase
• Sound Level: Minimum of 21 dB, maximum of 45 dB
• Connections: Liquid line fitting 1/4 inch, suction line fitting 3/8 inch
