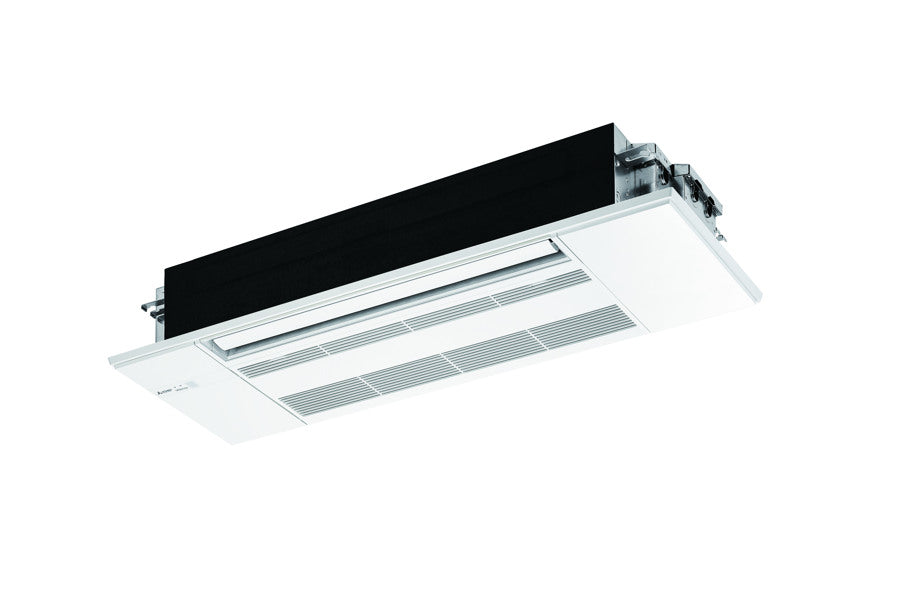

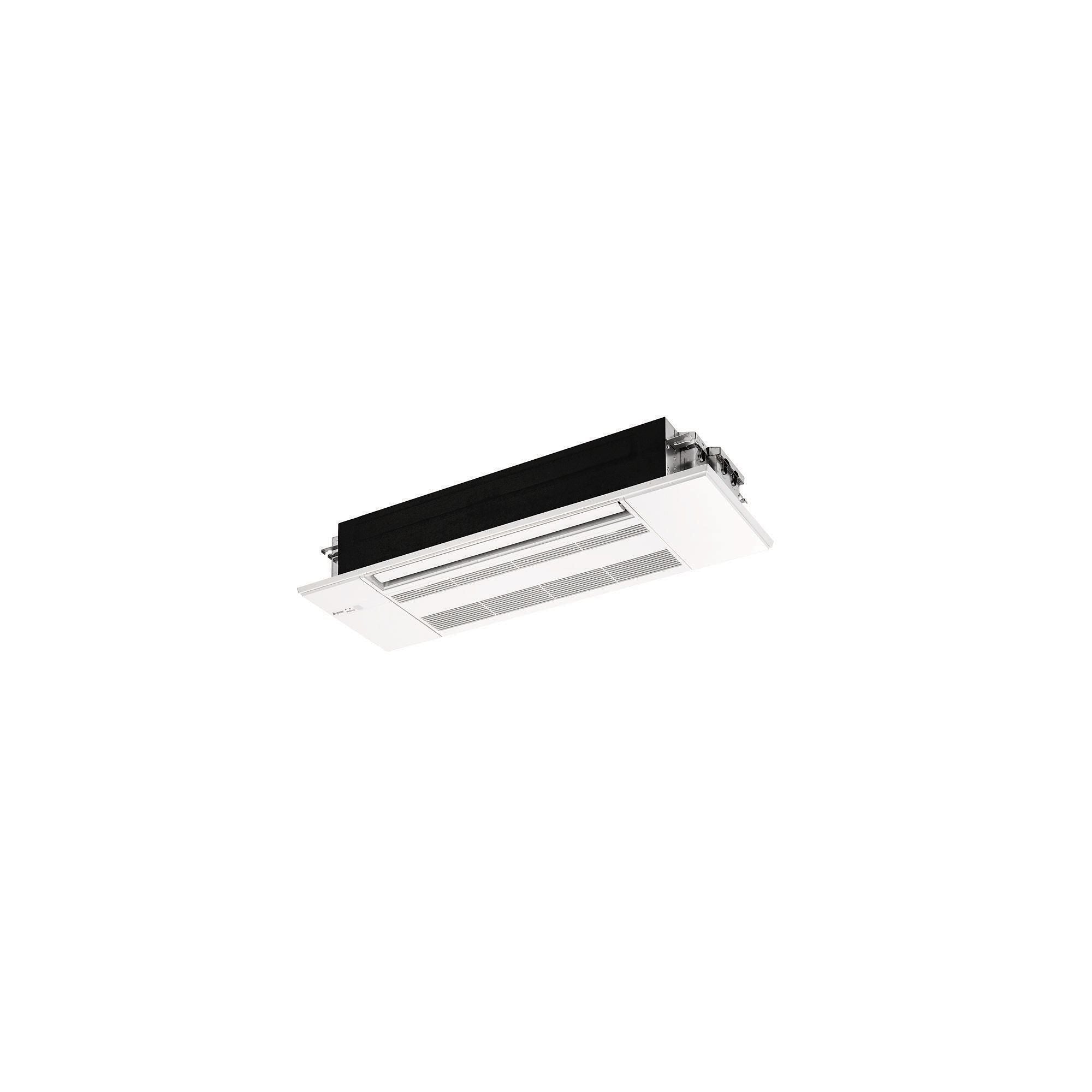

Mitsubishi MLZ-KP12NA2-U1 Indoor Unit, 12 MBH Recessed Ceiling Cassette HP Single-Zone 230/1 M-Series (Grille not included, use # MLP-444WU)

Product Description

The Mitsubishi MLZ-KP12NA2-U1 is a 12,000 BTU indoor unit designed for heat pump applications. This recessed ceiling cassette system provides efficient heating and cooling for residential spaces. The unit requires a separate grille, specifically the MLP-444WU model, for installation.

• Cooling capacity of 12,000 BTU
• Heating capacity of 15,400 BTU
• Compatible with R-410A refrigerant

Product Highlights

This indoor unit is suitable for indoor air handling units and is designed for single-zone applications. It is mounted in the ceiling, providing discreet and efficient climate control.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: MLZ-KP12NA2-U1

Technical Specifications

• Cooling Capacity: 12,000 BTU
• Heating Capacity: 15,400 BTU
• Voltage: 208-230 VAC
• Weight: 39.7 lbs
• Dimensions: Length 15.7 inches, Width 46.5 inches, Height 11 inches
• Refrigerant: R-410A
• ETL Listed: Yes
• UL Listed: Yes
• Sound Level: 26 dBA
