Mitsubishi MLZ-KP12NA 12,000 BTU/H One-Way Ceiling Cassette MXZ Multi-Zone Heat-Pump

Product Description

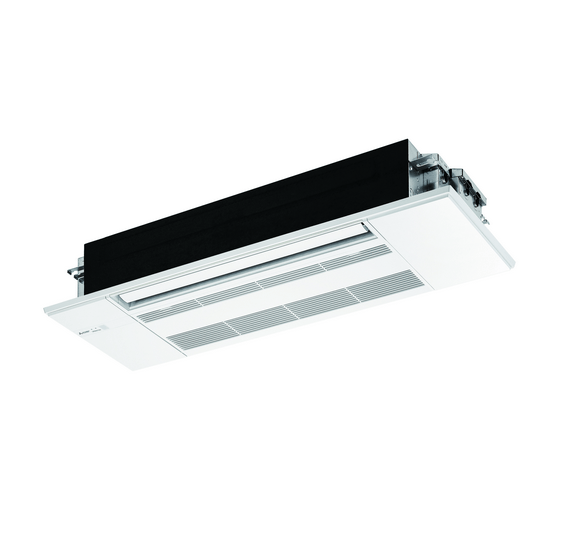

The Mitsubishi MLZ-KP12NA-U1 is a 12,000 BTU/h one-way ceiling cassette designed for multi-zone heat pump systems. This unit is built to fit between sixteen-inch joists and features a square design panel for neat installation.

• Built-in condensate lift mechanism (19.6 inches)
• Adjustable fan speeds and vane directions
• Pocket for Kumo Cloud wireless interface

Product Highlights

The MLZ-KP12NA-U1 allows for efficient cooling and heating with a variable airflow rate, making it suitable for various applications in commercial and residential settings.

Product Information

Standard Information

• Brand: Mitsubishi
• Model Number: MLZ-KP12NA-U1

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 15,000 BTU/h
• Voltage: 208-230 VAC
• Weight: 39.7 lbs
• Dimensions: 15.7 inches (Length) x 46.5 inches (Width) x 11 inches (Height)
• Indoor AHU Rating: Yes
• Refrigerant Type: R-410A
• Energy Efficiency Ratio (EER): 12.5
• Seasonal Energy Efficiency Ratio (SEER): 19.8
