Mitsubishi MAC-334IF-E System Control Interface

Product Description

The Mitsubishi MAC-334IF-E is a system control interface designed for select M-Series mini split indoor units. This device connects seamlessly to the PAR-40MAAU wired remote controller and also communicates with CITY MULTI Controls Networks via M-Net. It features a Dual Auto mode setting and provides capabilities for remote On/Off control of indoor units.

• Compatible with various M-Series wall mounted and floor standing units.

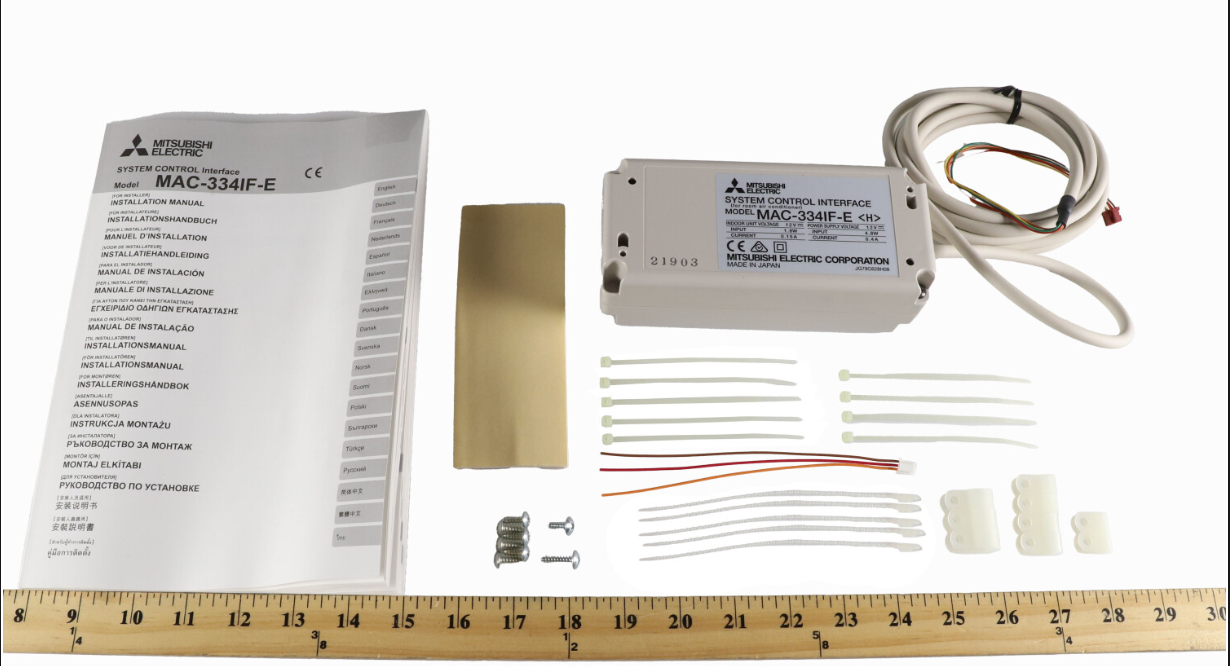

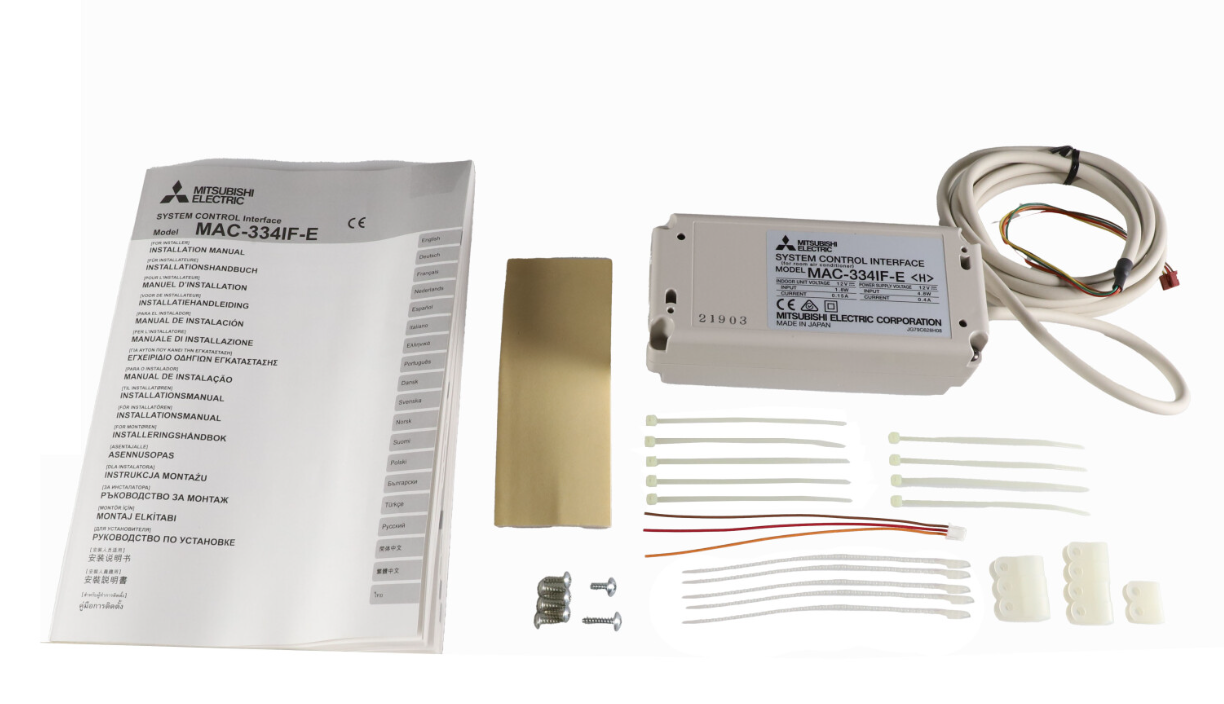

• Includes essential components such as a 5-core connecting cable and multiple mounting accessories.
• Max operating temperature of one hundred four degrees Fahrenheit and a minimum of thirty-two degrees Fahrenheit.

Product Highlights

This interface enhances control and efficiency of HVAC systems, ensuring reliable operation and energy management.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Product Line: M-Series

Technical Specifications

• Type: Adapter
• Power Source: External - 12VDC
• Warranty: 90 days parts warranty
• Dimensions: 2 3/4 inches depth, 6 5/16 inches width, 2 1/8 inches height
• Weight: 0.79375 pounds
• Maximum Operating Temperature: 104 F
• Minimum Operating Temperature: 32 F
