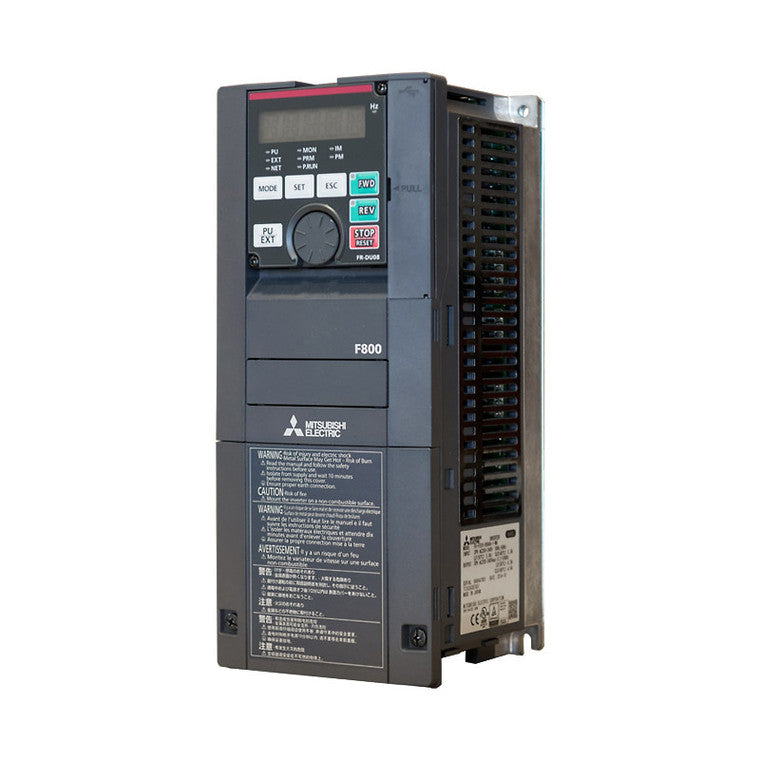

Mitsubishi FR-F840-00380-E3N6 VSD/VFD / Inverter 18.5kW / 25HP

Product Description

The Mitsubishi VFD FR-F840-00380-E3N6 is a variable speed/frequency drive (VSD/VFD) / Inverter. This unit is designed for three-phase applications with an input voltage of 380 to 500 volts. It supports a power output of 18.5 kW or 25 horsepower and handles a rated current of 35 amps. The output frequency ranges from zero point two to five hundred ninety hertz.

• Supports applications such as fans, pumps, and air conditioning systems.
• Includes extended conformal coating for enhanced durability in various environments.
• Features Ethernet communication capability for networking and control.

Product Highlights

This drive offers reliable motor control and is suitable for a range of industrial tasks. It is built with environmental protections to ensure functionality in demanding settings.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Application Type: Fan, Pump, Air Conditioning

Technical Specifications

• Input Voltage: 380Vac - 500Vac
• Rated Power: 18.5 kW (25 HP)
• Rated Current: 35 A
• Output Frequency: 0.2 to 590 Hz
• Protection Degree: IP20
• Height: 14.29 inches
• Width: 8.66 inches
• Depth: 7.48 inches
