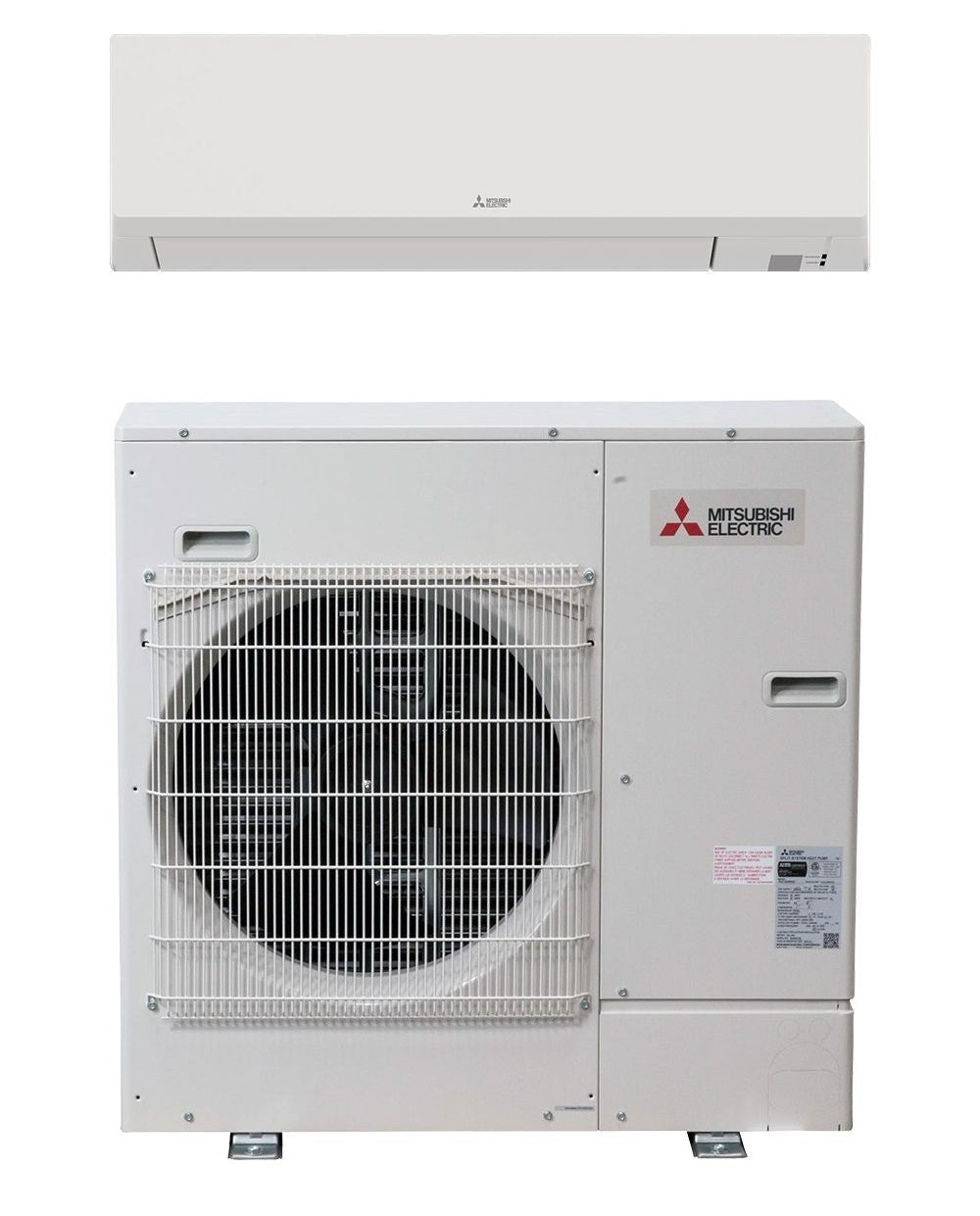

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AK36NL+PKA-AK36NL - BTU 36000 - SEER 20.3 - R454B

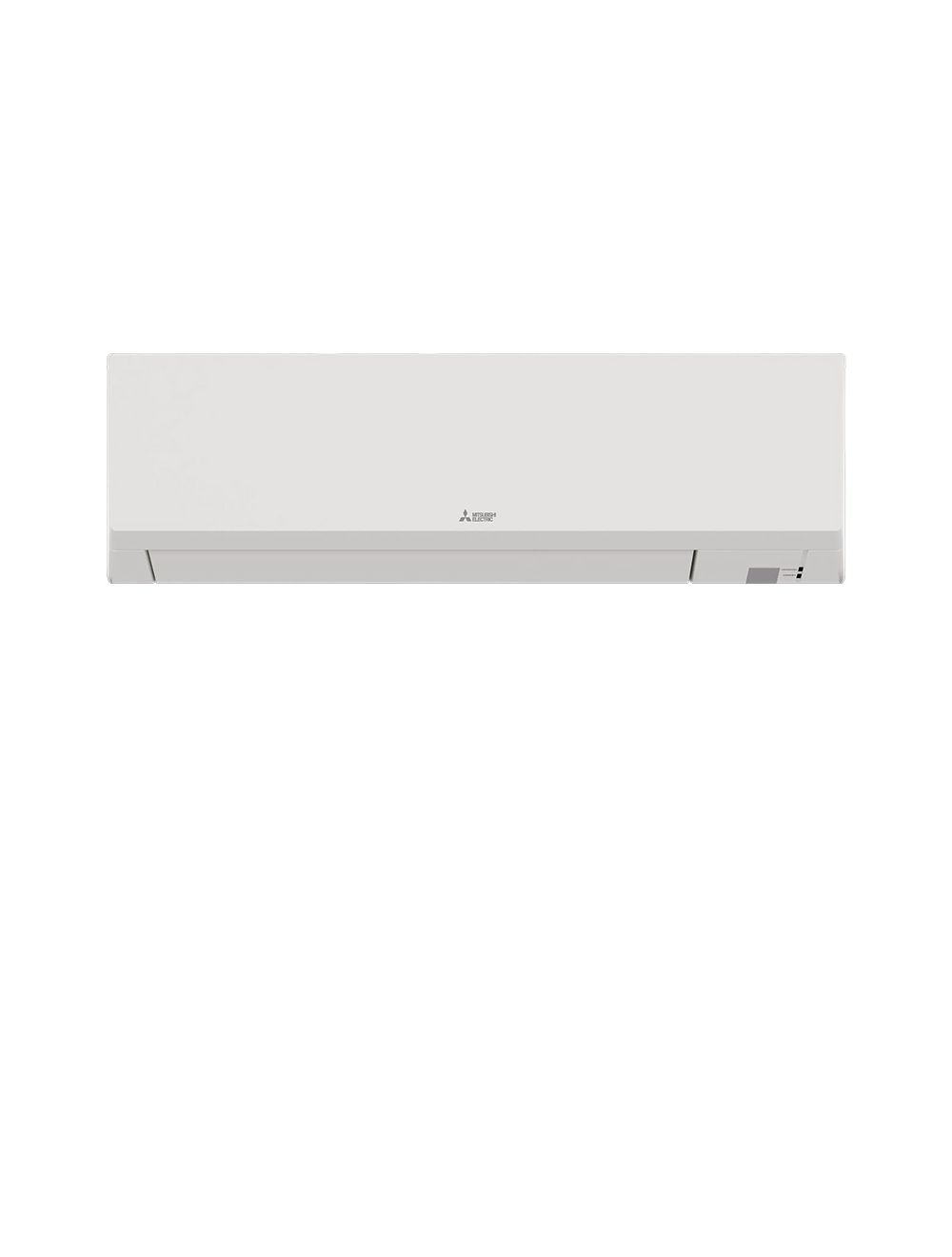

Product Description

The Mitsubishi Electric PKA-AK36NL is a wall-mounted indoor unit designed for single-zone mini-split systems. It operates efficiently in both heating and cooling modes, utilizing R-454B refrigerant. This unit offers various fan speeds and airflow directions, making it suitable for a wide range of applications.

• Wall mounted unit for single-zone applications.
• Heating and cooling capabilities with adjustable fan speeds.
• Utilizes environmentally friendly R-454B refrigerant.

Product Highlights

This unit is ideal for commercial settings, providing reliable heating and cooling even in low ambient temperatures while maintaining a quiet operation.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AK36NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Refrigerant Type: R-454B
• Cooling Capacity: 33,400 BTU
• Heating Capacity: 40,000 BTU
• Room Capacity: Up to 1,500 sq ft
• Minimum Air Flow: 705 CFM
• Maximum Air Flow: 920 CFM
• Noise Level Cooling: 43-49 dB(A)
• Noise Level Heating: 43-49 dB(A)
• Input Voltage: 208/230 Volts
• Product Dimensions: 46 1/16 x 11 5/8 x 14 3/8 inches
• Product Weight: 46 pounds
• Parts Warranty: 5 Years
• SEER2: 22.1
• EER21: 11.9
• HSPF2: 9.6

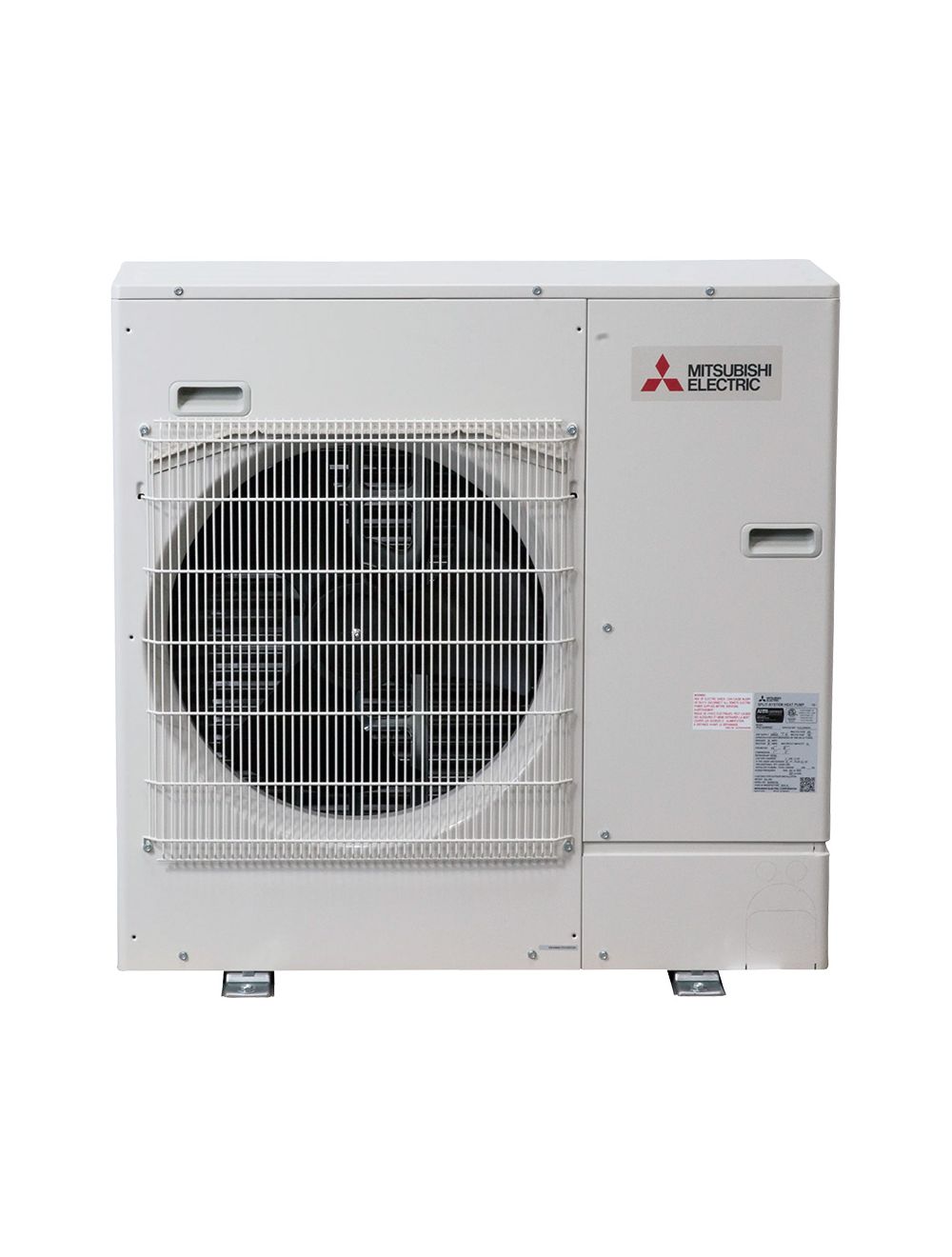

Product Description

The Mitsubishi Electric PUY-AK36NL is a cooling-only system suitable for commercial spaces. This single-zone unit is ideal for server rooms, daycares, churches, and small offices. It operates with R454B refrigerant and can maintain low ambient cooling temperatures even down to zero degrees Fahrenheit.

• Single zone unit for cooling applications.

• Designed for commercial usage.

• Utilizes R454B refrigerant for efficient operation.

Product Highlights

This Mitsubishi unit is built for durability in high-traffic areas.

Product Information

Standard Information

• Unit Type: 3 Ton Single Zone Unit

• Product Line: Mitsubishi P-Series

Technical Specifications

• Operating Mode: Cooling Only

• Cooling Capacity at 95F (Maximum): 36,000 BTU/h

• Cooling Capacity at 95F (Rated): 33,400 BTU/h

• Cooling Capacity at 95F (Minimum): 13,200 BTU/h

• SEER2: 20.3

• EER21: 12

• Room Cooling Capacity: up to 1500 sq ft

• Noise Level: 43-49 dB(A)

• Dimensions (WxDxH): 46-1/16 x 11-5/8 x 14-3/8 inches

• Weight: 200 lb
