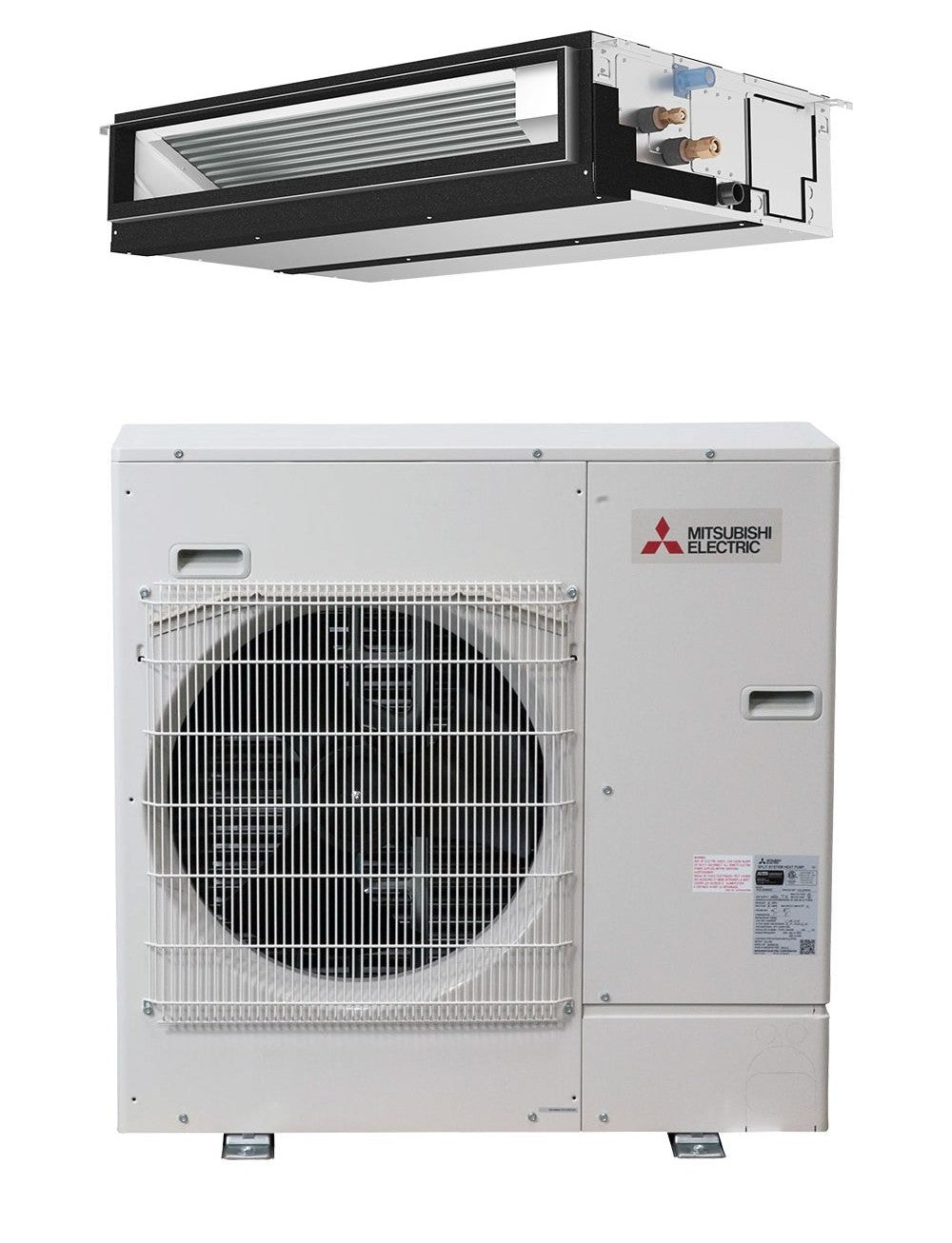

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AK36NL+PEAD-AA36NL - BTU 36000 - SEER 20.1 - R454B

Product Description

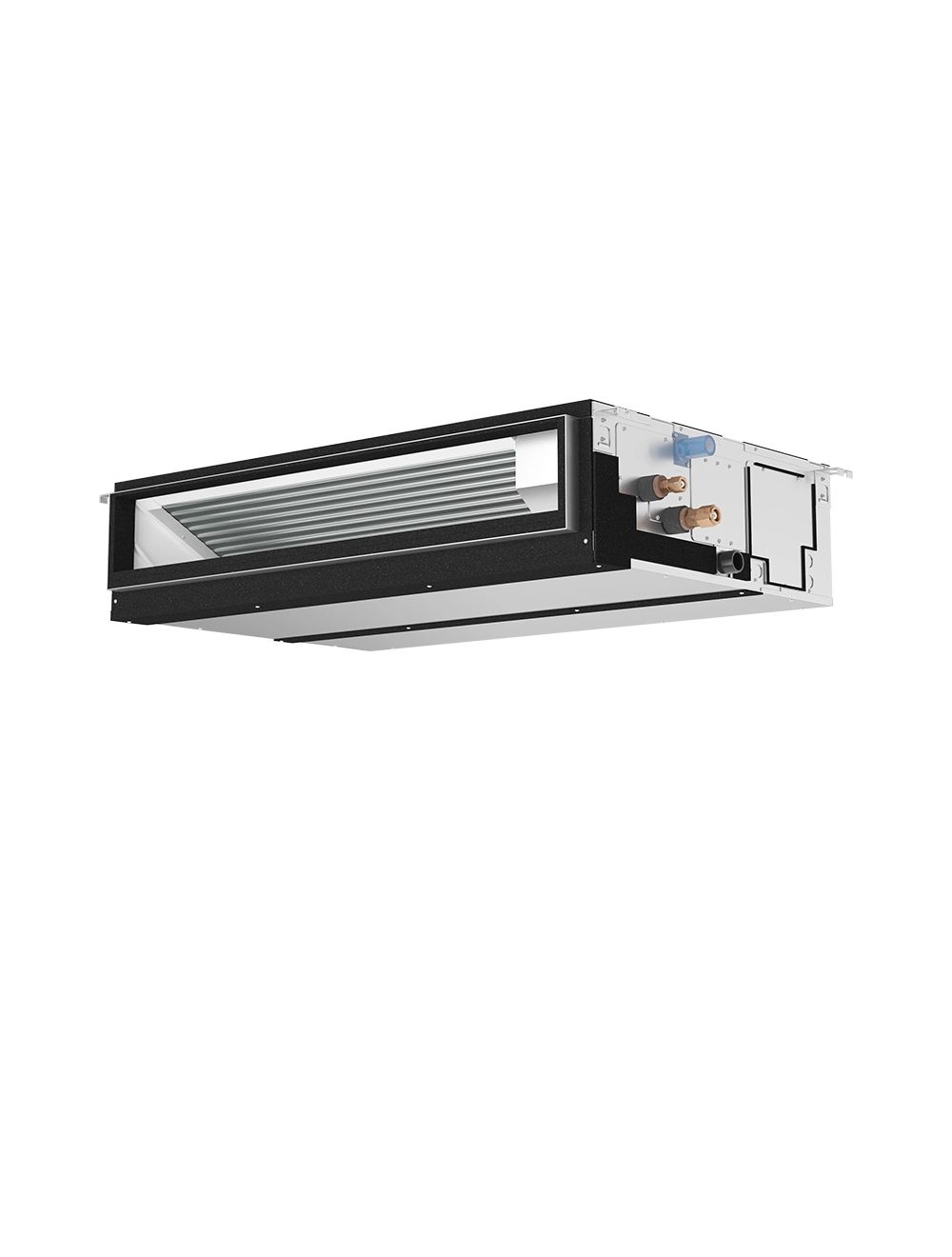

The Mitsubishi Electric PEAD-AA36NL is a concealed duct mini split indoor unit. It is designed for both single-zone and multi-zone configurations. This unit fits in short-run ducting and operates in heating and cooling modes. The PEAD-AA36NL uses R-454B refrigerant and offers multiple fan speeds, making it versatile for various indoor environments.

• Concealed duct design for unobtrusive installation.
• Compatible with both single-zone and multi-zone systems.
• Utilizes R-454B refrigerant.

Product Highlights

This unit offers effective air management for heating and cooling needs.

Product Information

Standard Information

• Product Line: P-Series
• Unit Type: Mid-Static Horizontal Ducted

Technical Specifications

• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 33,000 BTU
• Heating Capacity: 34,000 BTU
• Moisture Removal: 4.4 Pints/Hour
• Maximum Air Flow: 1,201 CFM
• Minimum Air Flow: 848 CFM
• Sound Level: 34 dB to 42 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9 7/8 Inches
• Product Width: 55 1/8 Inches
• Product Depth: 28 7/8 Inches
• Product Weight: 82 Pounds
• Installation Location: Indoor
• ETL Listed: Yes
• AHRI Certified: Yes

Product Description

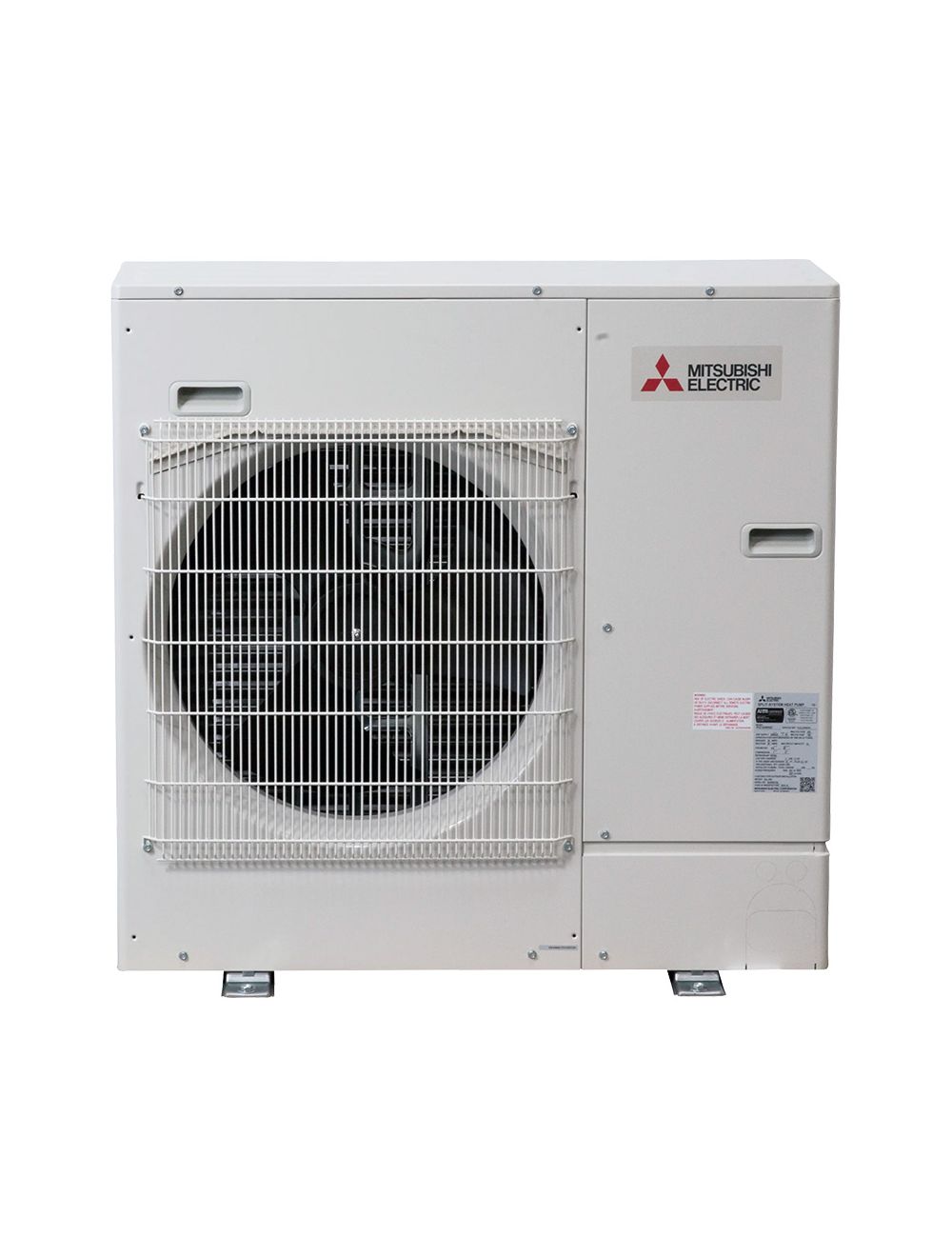

The Mitsubishi Electric PUY-AK36NL is a cooling-only system suitable for commercial spaces. This single-zone unit is ideal for server rooms, daycares, churches, and small offices. It operates with R454B refrigerant and can maintain low ambient cooling temperatures even down to zero degrees Fahrenheit.

• Single zone unit for cooling applications.

• Designed for commercial usage.

• Utilizes R454B refrigerant for efficient operation.

Product Highlights

This Mitsubishi unit is built for durability in high-traffic areas.

Product Information

Standard Information

• Unit Type: 3 Ton Single Zone Unit

• Product Line: Mitsubishi P-Series

Technical Specifications

• Operating Mode: Cooling Only

• Cooling Capacity at 95F (Maximum): 36,000 BTU/h

• Cooling Capacity at 95F (Rated): 33,400 BTU/h

• Cooling Capacity at 95F (Minimum): 13,200 BTU/h

• SEER2: 20.3

• EER21: 12

• Room Cooling Capacity: up to 1500 sq ft

• Noise Level: 43-49 dB(A)

• Dimensions (WxDxH): 46-1/16 x 11-5/8 x 14-3/8 inches

• Weight: 200 lb
