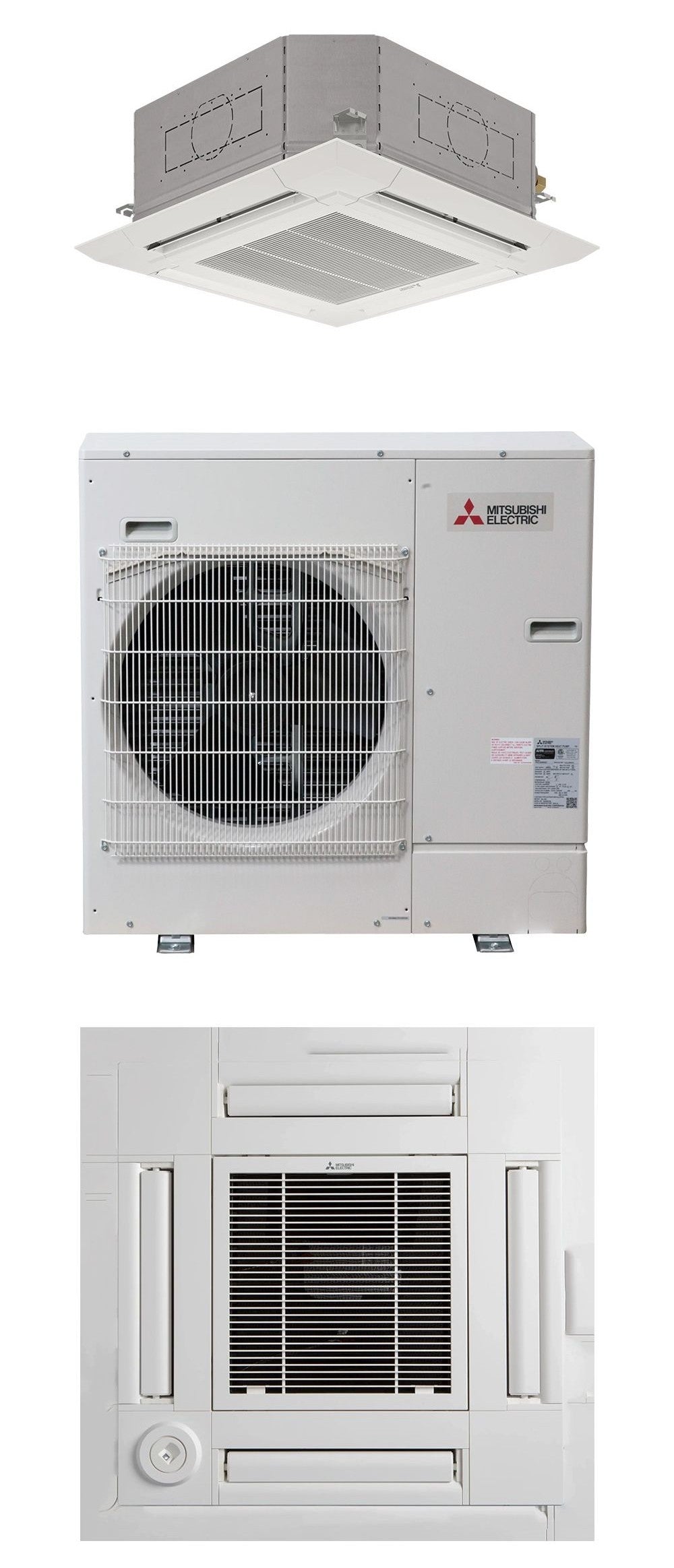

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AK18NL+PLA-AE18NL+PLP-41EAEU - BTU 18000 - SEER 24.7 - R454B

Product Description

The Mitsubishi Electric PLA-AE18NL is a ceiling cassette unit suitable for mini-split systems. It provides both heating and cooling features and is designed for discreet installation in ceilings. The unit includes a 3D i-see Sensor that adjusts airflow based on room temperature. This makes it ideal for various environments, including commercial and residential spaces.

• Compatible with single or multi-zone systems.
• Equipped with a condensate removal system.
• Heating and cooling functionality.

Product Highlights

The PLA-AE18NL offers flexible installation options and advanced technology for efficient temperature control.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PLA-AE18NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Ceiling Cassette
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 18000 BTU
• Heating Capacity: 23000 BTU
• Moisture Removal: 3.8 Pints/Hour
• Maximum Air Flow: 600 CFM
• Minimum Air Flow: 460 CFM
• Minimum Sound Level: 28 dB
• Maximum Sound Level: 32 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 10 3/16 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 33 1/16 Inches
• Product Weight: 46 Pounds
• Grille: Included
• Required Grille Model: PLP-41EAEU
• ETL Listed: Yes
• AHRI Certified: Yes
• SEER2: 24.7
• EER2: 13.7
• Energy Star Certified: Yes
• Noise Level: Heating: 28-32 dB(A)
• External Finish Color: White Munsell

Product Description

The Mitsubishi Electric PUY-AK18NL is an efficient outdoor condenser suitable for single-zone mini-split systems. This unit offers ductless cooling with a capacity of eighteen thousand BTU. It features inverter technology and an electronic linear expansion valve for precise temperature control.

• Designed for single-zone cooling applications.
• Utilizes R-454B refrigerant for environmentally friendly performance.
• Includes a blue fin coating for enhanced durability against corrosion.

Product Highlights

This outdoor condenser is ideal for residential and small commercial spaces. It ensures efficient cooling while maintaining low operational noise levels.

Product Information

Standard Information

• Product Type: Outdoor Condenser
• Product Line: P-Series

Technical Specifications

• Operating Mode: Cooling Only
• Maximum Number of Zones: 1
• Cooling Capacity: 18000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Minimum Outdoor Temperature for Cooling: 23 F
• Product Height: 24 13/16 Inches
• Product Width: 34 7/24 Inches
• Product Depth: 11 13/16 Inches
• Product Weight: 99 Pounds
• Warranty: 5 Years Parts, 7 Years Compressor
• Noise Level: Cooling 34-48 dB(A)
• SEER: 20.1
• EER Rating: 13.7
• Drive Type: Inverter Drive
• Color: Ivory

Product Description

The Mitsubishi PLP-41EAEU is a grille designed for the PLFY-EP and PLA-7 series indoor units. It serves as a crucial component in ensuring proper airflow and maintaining optimal conditions in ductless systems.

• Compatible with PLFY-EP and PLA-7 series indoor units
• Made by Mitsubishi, a trusted brand in HVAC solutions
• Lightweight yet durable construction for long-term use

Product Highlights

This grille is essential for efficient operation and air distribution in Mitsubishi ductless systems.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: PLP-41EAEU

Technical Specifications

• Weight: 15.4 pounds
• Height: 4.7 inches
• Length: 38.2 inches
• Width: 39.4 inches
• Cubic Measurement: 4.0937
• Dimensional Weight: 54
• Country of Origin: Thailand
• Tier: P-Series
