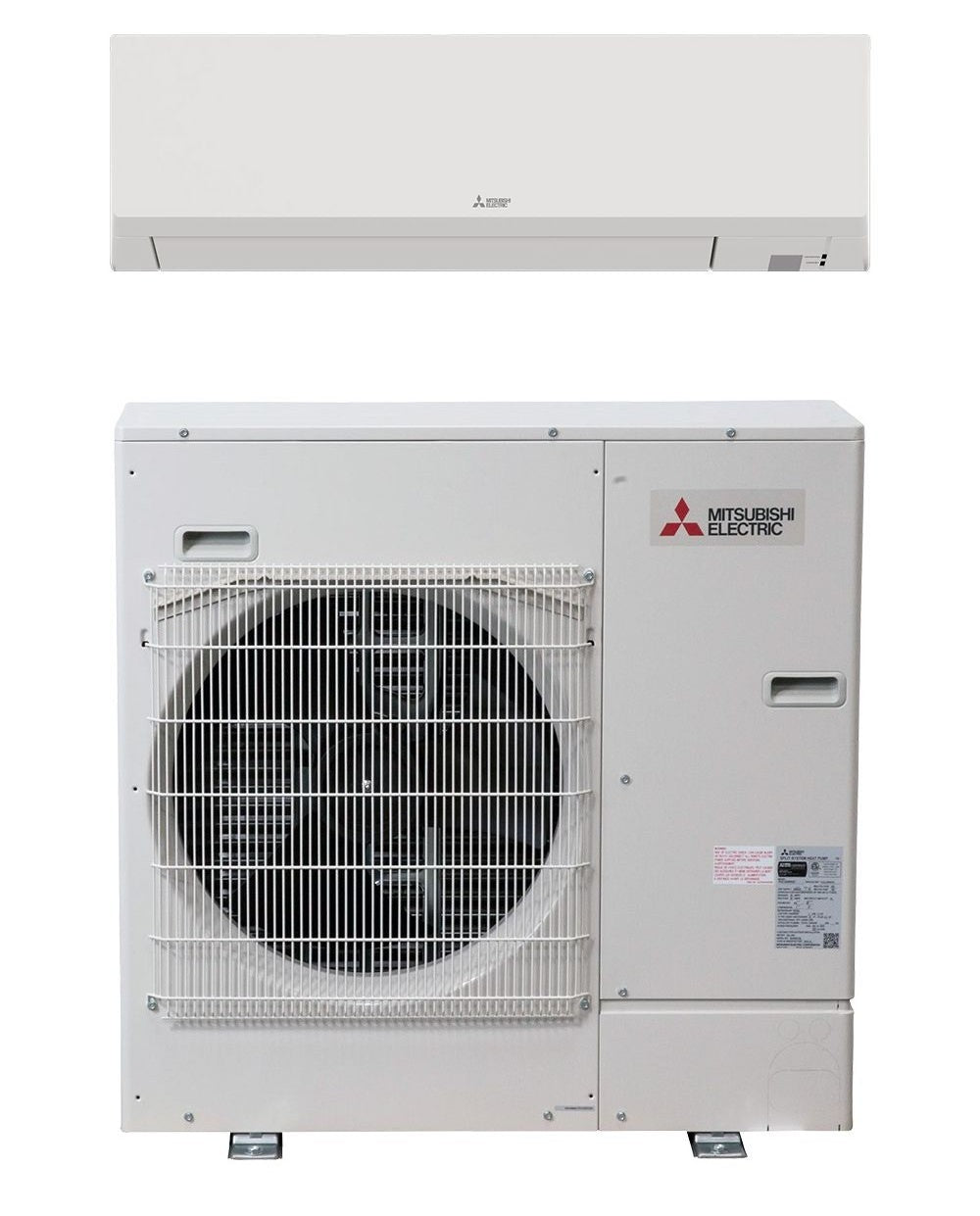

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AK18NL+PKA-AL18NL - BTU 18000 - SEER 19.5 - R454B

Product Description

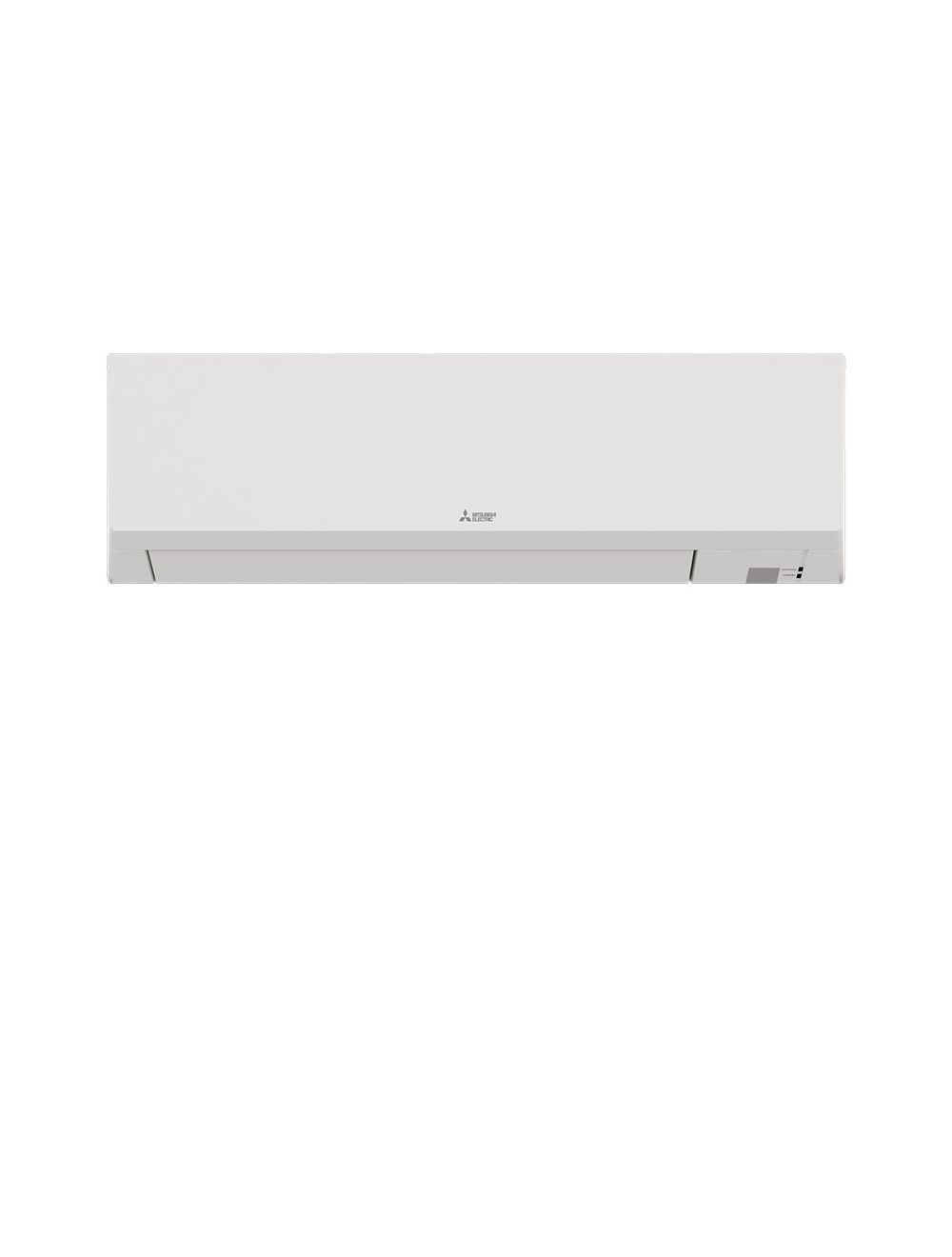

The Mitsubishi Electric PKA-AL18NL is a wall-mounted indoor unit ideal for single-zone ductless mini-split systems. This unit, part of the P-Series, is appropriate for light commercial settings like small offices, daycare centers, and classrooms. It uses R454B refrigerant and has several options for controlling airflow direction. The PKA-AL18NL provides heating and cooling functionality efficiently.

• Single-zone wall-mounted indoor unit.
• Compatible with R454B refrigerant.
• Provides both heating and cooling options.

Product Highlights

The PKA-AL18NL is designed to work efficiently in various indoor environments, providing comfort through reliable heating and cooling.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AL18NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Unit Capacity: 18,000 BTU
• Cooling Capacity: 18,000 BTU
• Heating Capacity: 22,000 BTU
• Maximum Air Flow: 450 CFM
• Minimum Air Flow: 215 CFM
• Noise Level (Cooling): 34-48 dB(A)
• Noise Level (Heating): 34-48 dB(A)
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Liquid Connection Size: 1/4 Inch
• Gas Connection Size: 1/2 Inch
• Product Dimensions: 35.35 inches Width x 9.17 inches Depth x 11.37 inches Height
• Weight: 28 lb
• Moisture Removal: 6.6 Pints/Hour
• SEER2: 19.5
• HSPF2 [IV]: 8.9

Product Description

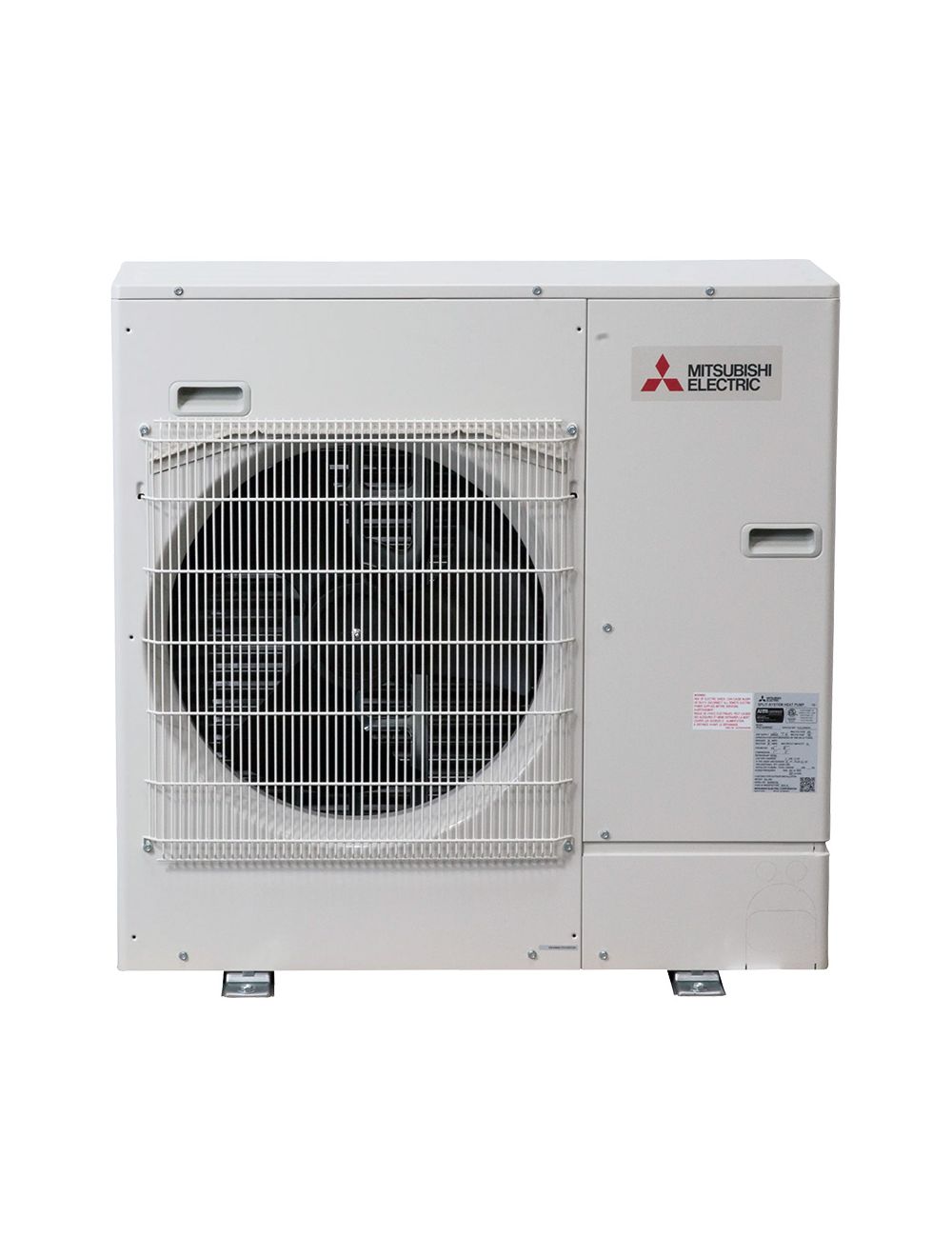

The Mitsubishi Electric PUY-AK18NL is an efficient outdoor condenser suitable for single-zone mini-split systems. This unit offers ductless cooling with a capacity of eighteen thousand BTU. It features inverter technology and an electronic linear expansion valve for precise temperature control.

• Designed for single-zone cooling applications.
• Utilizes R-454B refrigerant for environmentally friendly performance.
• Includes a blue fin coating for enhanced durability against corrosion.

Product Highlights

This outdoor condenser is ideal for residential and small commercial spaces. It ensures efficient cooling while maintaining low operational noise levels.

Product Information

Standard Information

• Product Type: Outdoor Condenser
• Product Line: P-Series

Technical Specifications

• Operating Mode: Cooling Only
• Maximum Number of Zones: 1
• Cooling Capacity: 18000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 V
• Minimum Outdoor Temperature for Cooling: 23 F
• Product Height: 24 13/16 Inches
• Product Width: 34 7/24 Inches
• Product Depth: 11 13/16 Inches
• Product Weight: 99 Pounds
• Warranty: 5 Years Parts, 7 Years Compressor
• Noise Level: Cooling 34-48 dB(A)
• SEER: 20.1
• EER Rating: 13.7
• Drive Type: Inverter Drive
• Color: Ivory
