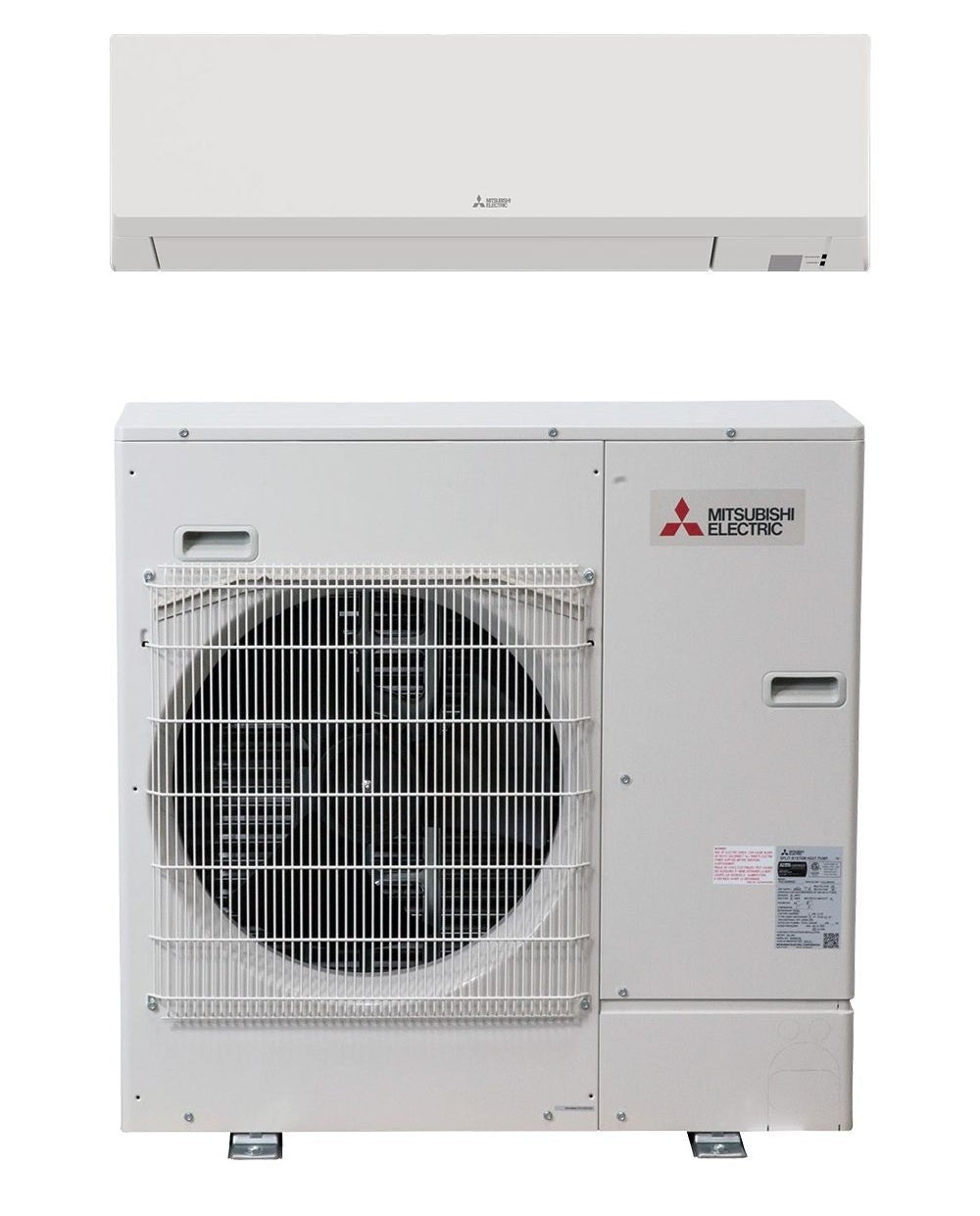

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AK12NL+PKA-AL12NL - BTU 12000 - SEER 21.1 - R454B

Product Description

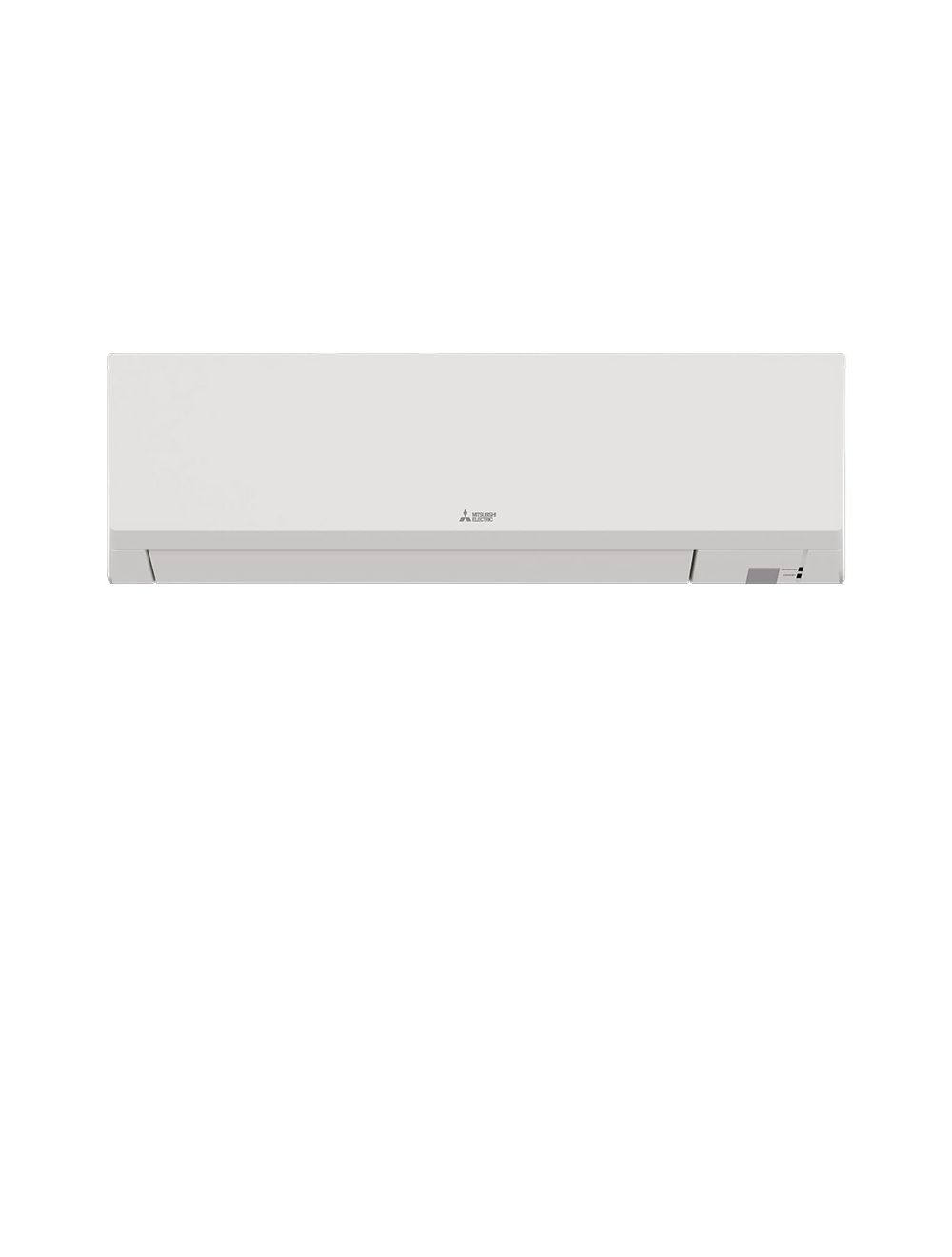

The Mitsubishi Electric PKA-AL12NL is a wall-mounted indoor unit designed for mini-split systems. This unit is part of the Mitsubishi P-Series and works for both heating and cooling. It is suitable for light commercial spaces and offers multiple fan speeds.

• Wall mounted design for efficient space usage.
• Compatible with R-454B refrigerant.
• Quiet operation with a low noise level.

Product Highlights

This unit delivers a powerful performance in both cooling and heating, ensuring comfort in various conditions.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AL12NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Unit Capacity: 12,000 BTU
• Cooling Capacity: 12,000 BTU
• Heating Capacity: 18,000 BTU
• SEER: 21.1
• EER: 14.8
• HSPF: 10.1
• Energy Star Certified: Yes
• Cooling Minimum Temperature: 0 F
• Heating Minimum Temperature: 5 F
• Room Cooling/Heating Capacity: Up to 550 sq ft
• Maximum Air Flow: 385 CFM
• Minimum Air Flow: 215 CFM
• Noise Level: Cooling: 34-48 dB(A)
• Noise Level: Heating: 34-43 dB(A)
• Input Voltage: 208/230 Volts
• Power Consumption: 830 W
• Dimensions: 35-11/32 W x 9-11/32 D x 11-25/32 H
• Weight: 28 Pounds

Product Description

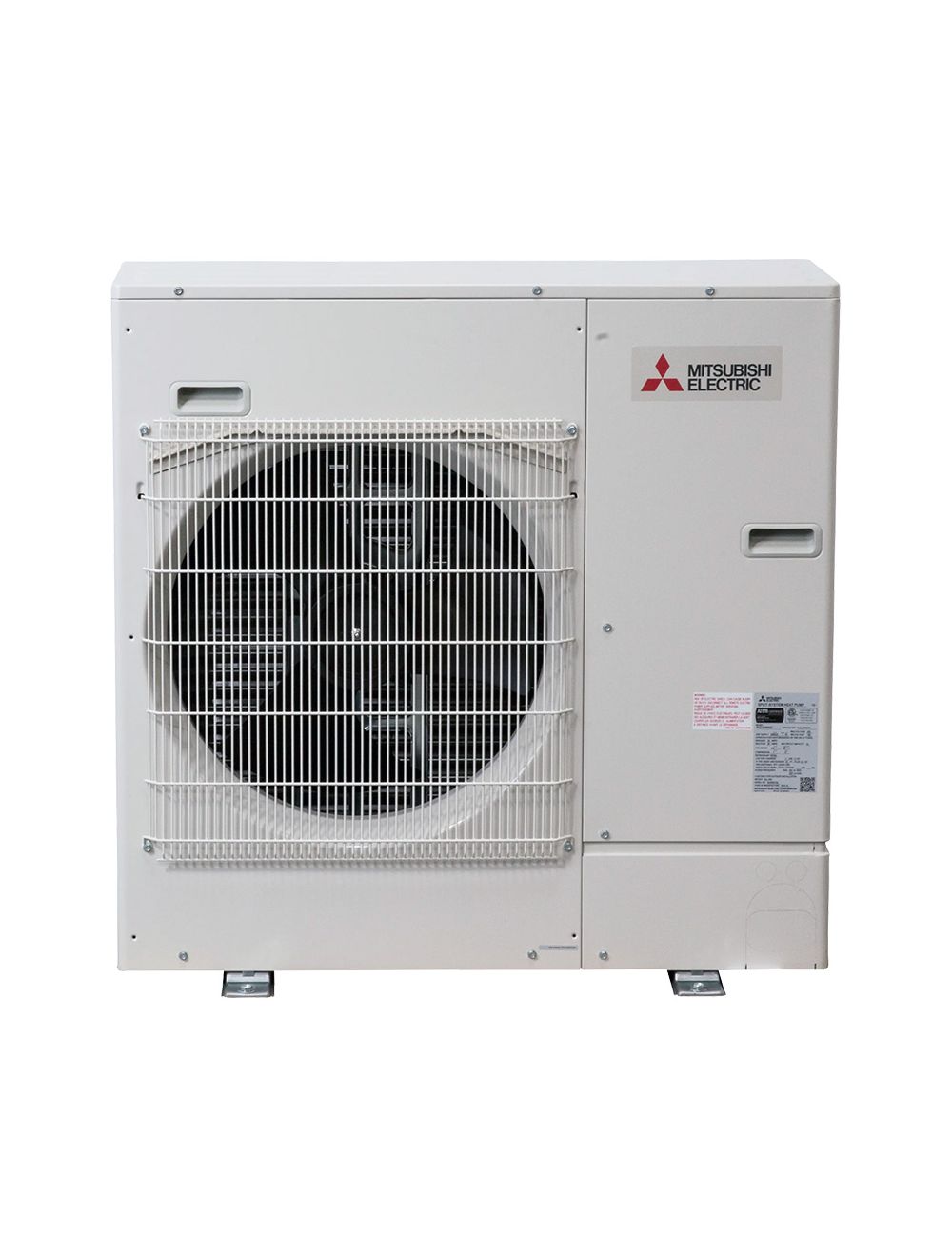

The Mitsubishi Electric PUY-AK12NL is an outdoor mini-split air conditioner condenser designed for efficient cooling. This unit operates at 208/230 V and 60 Hz, providing a cooling capacity from 4900 to 12400 Btu/hr. It is equipped with an inverter-driven compressor which enhances energy efficiency while maintaining comfort.

• Blue Fin coating for protection against corrosion.
• Pre-charged with refrigerant simplifies installation.
• Designed for continuous operation in cooling mode.

Product Highlights

This model offers seacoast protection for durability in harsh environments and operates quietly with a cooling sound level of 44 dBA.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: PUY-AK12NL

Technical Specifications

• Operating Mode: Cooling Only
• Cooling Capacity: 4900 to 12400 Btu/hr
• SEER2: 24.8
• EER2: 17.1
• Input Voltage: 208/230 V
• Input Current: 16 A
• Power Consumption: 730 W
• Cooling CFM Rating: 1590 cfm
• Refrigerant Type: R454B
• Cooling Sound Level: 44 dBA
• Dimensions: 34-19/64 W x 11-13/18 D x 24-13/16 H
