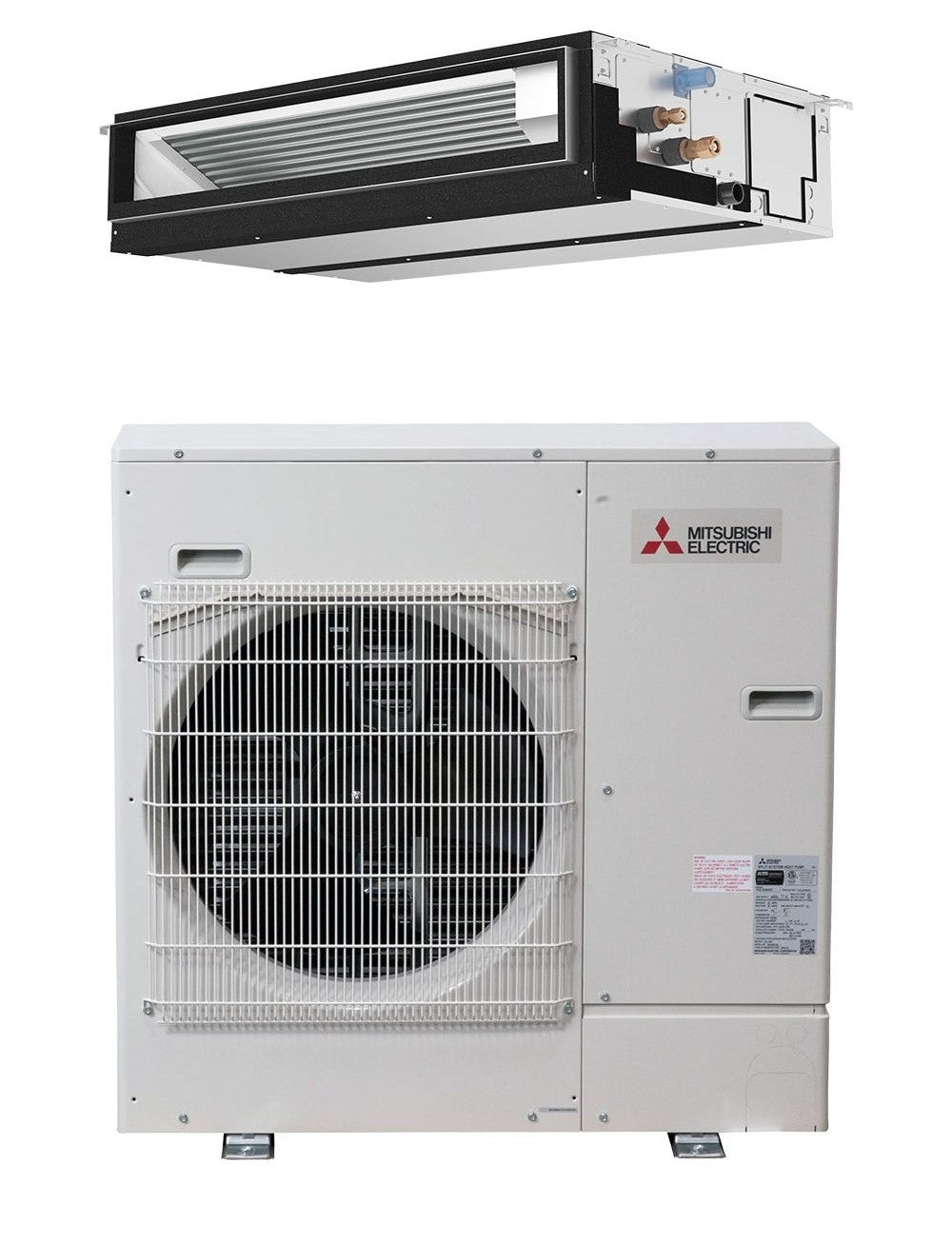

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AK12NL+PEAD-AA12NL - BTU 12000 - SEER 20 - R454B

Product Description

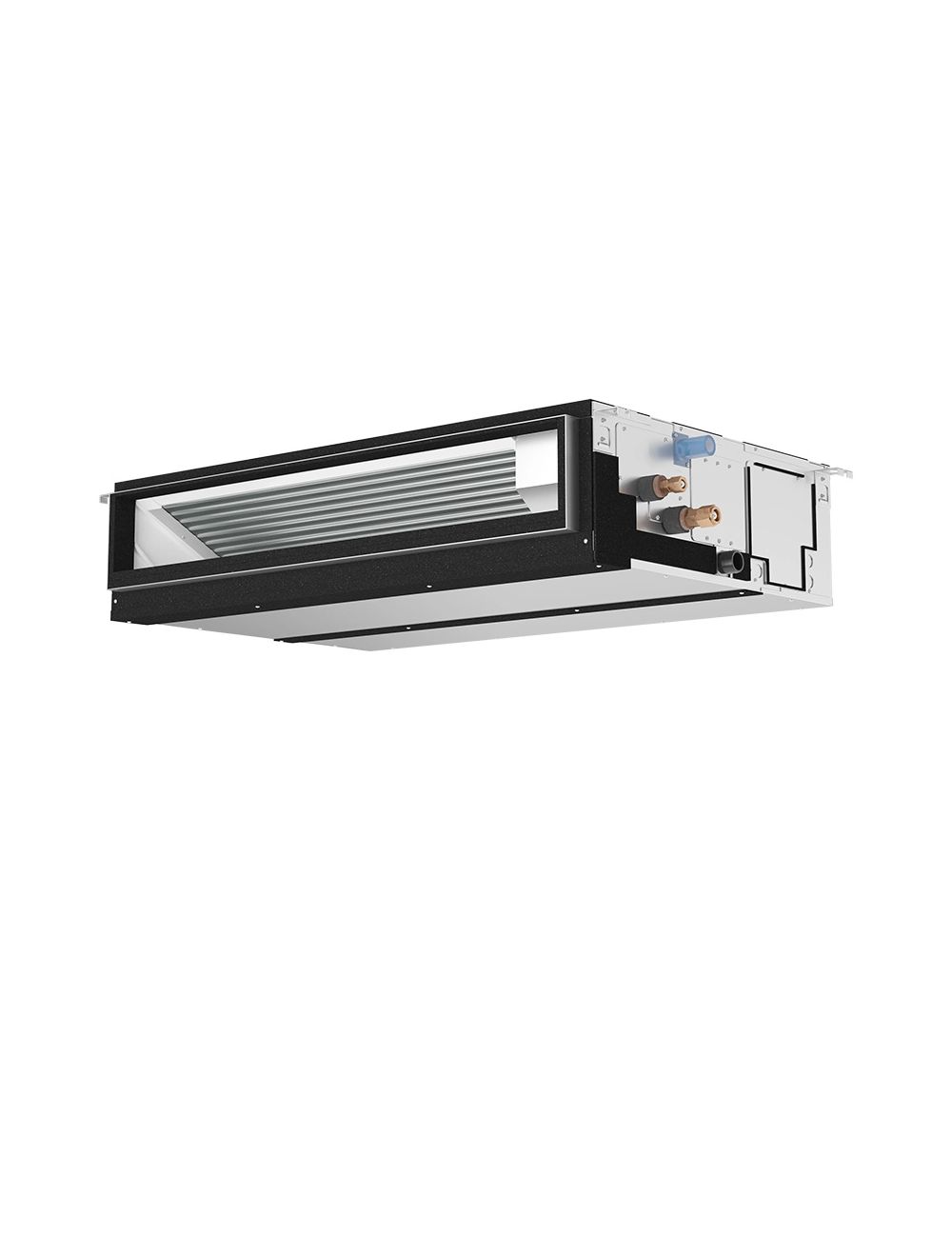

The Mitsubishi Electric PEAD-AA12NL is an indoor unit designed for ceiling installation. This horizontal-ducted unit operates on 208/230 V, sixty Hertz, and uses single-phase power. It has a power consumption of eight hundred seventy watts with a current draw of two point five amps.

The unit utilizes R-454B refrigerant and can deliver airflow rates ranging from three hundred fifty-three to four hundred ninety-four cubic feet per minute. The Mitsubishi Electric PEAD-AA12NL achieves an Energy Efficiency Ratio rating of fourteen point four and a Seasonal Energy Efficiency Ratio rating of twenty. The sound level of this unit is thirty-four decibels, and it operates effectively within a temperature range of sixty-six to ninety degrees Fahrenheit.

• Built-in condensate lift mechanism supports up to twenty-seven and nine sixteenths inches.
• Multiple control options available, including mobile app, wired, and wireless interfaces.
• Wide external static pressure range of zero point fourteen to zero point sixty inches water gauge.

Product Highlights

The Mitsubishi Electric PEAD-AA12NL provides efficient cooling and versatile control capabilities.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA12NL

Technical Specifications

• Product Type: Indoor Unit
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single Phase
• Power Consumption: 870 W
• Current: 2.5 A
• Cooling Capacity: 12400 Btu/hr
• Airflow: 353 cfm, 388 cfm, 424 cfm, 494 cfm
• EER Rating: 14.4
• SEER: 20
• Refrigerant: R-454B
• Sound Level: 34 dBA
• Mounting Type: Ceiling Mounting
• Operating Temperature: 66 to 90 deg F
• Overall Length: 28-7/8 in
• Overall Width: 35-7/16 in
• Overall Height: 9-7/8 in
• Connection Type: Flared Connection

Product Description

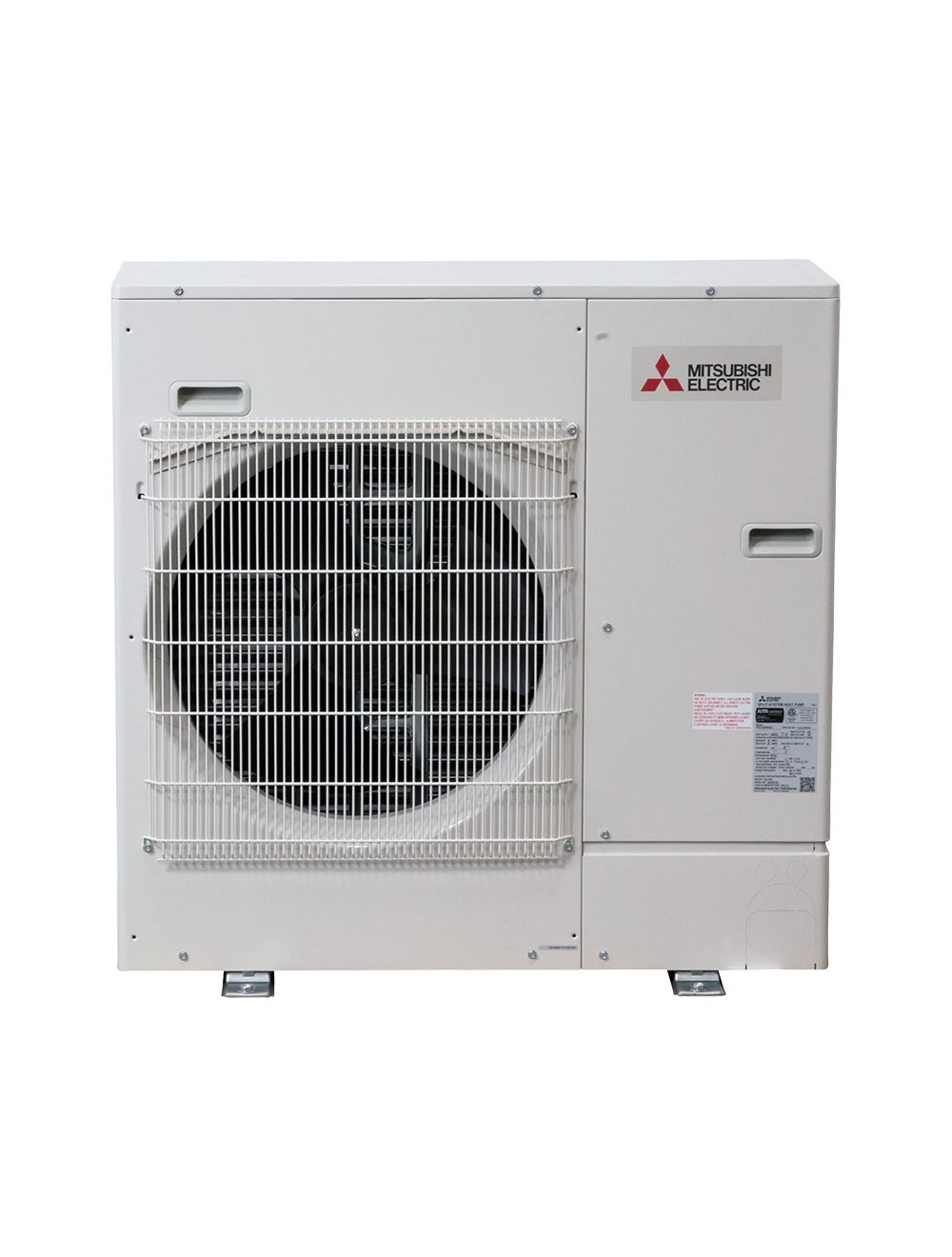

The Mitsubishi Electric PUY-AK12NL is an outdoor mini-split air conditioner condenser designed for efficient cooling. This unit operates at 208/230 V and 60 Hz, providing a cooling capacity from 4900 to 12400 Btu/hr. It is equipped with an inverter-driven compressor which enhances energy efficiency while maintaining comfort.

• Blue Fin coating for protection against corrosion.
• Pre-charged with refrigerant simplifies installation.
• Designed for continuous operation in cooling mode.

Product Highlights

This model offers seacoast protection for durability in harsh environments and operates quietly with a cooling sound level of 44 dBA.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: PUY-AK12NL

Technical Specifications

• Operating Mode: Cooling Only
• Cooling Capacity: 4900 to 12400 Btu/hr
• SEER2: 24.8
• EER2: 17.1
• Input Voltage: 208/230 V
• Input Current: 16 A
• Power Consumption: 730 W
• Cooling CFM Rating: 1590 cfm
• Refrigerant Type: R454B
• Cooling Sound Level: 44 dBA
• Dimensions: 34-19/64 W x 11-13/18 D x 24-13/16 H
