MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AH24NL+PLA-AE24NL+PLP-41EAEU - BTU 24000 - SEER 22.6 - R454B

Product Description

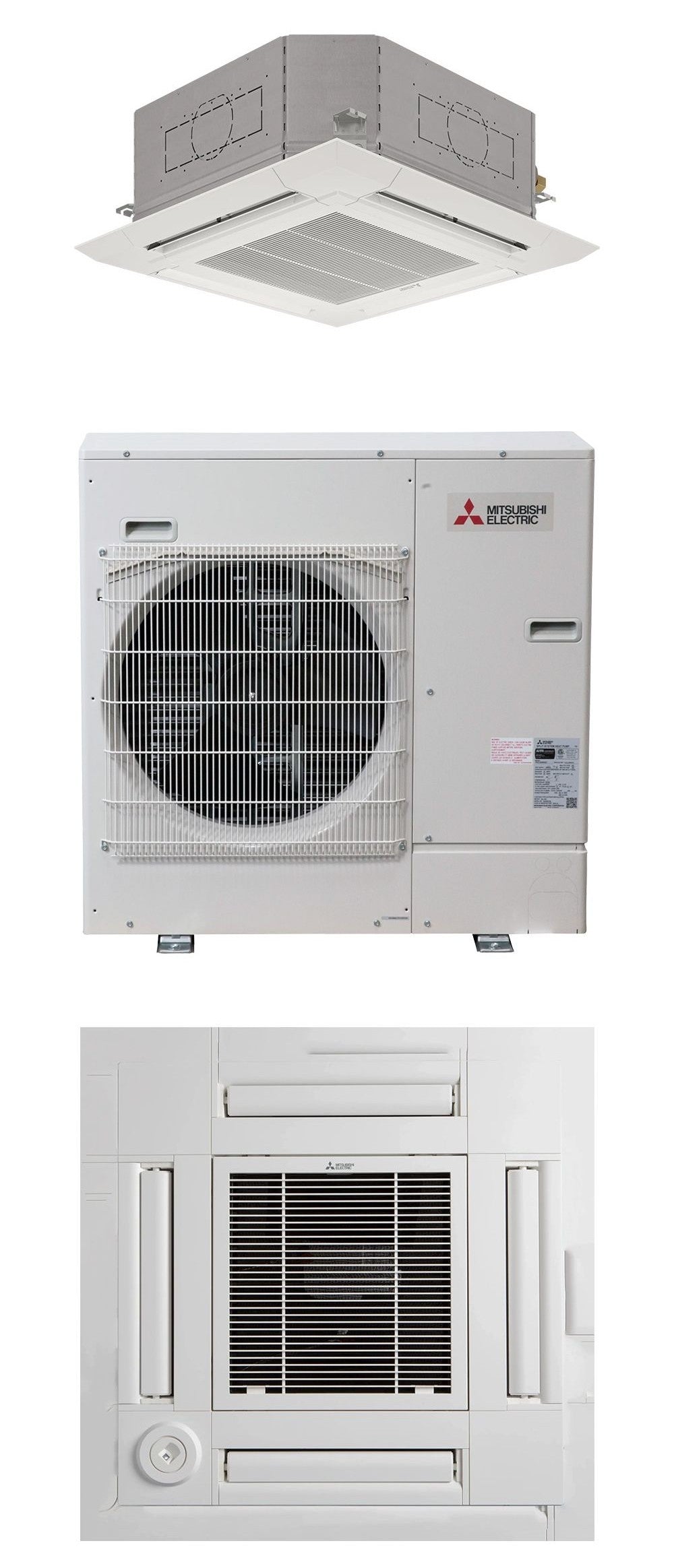

The Mitsubishi Electric PLA-AE24NL is a ceiling cassette unit designed for both heating and cooling applications in residential and commercial settings. This unit efficiently provides climate control for single or multi-zone systems. Its low-profile design allows for discreet installation, while the quiet operation minimizes disruption. The integrated sensor is essential for detecting warm and cold spots, ensuring that conditioned air is effectively distributed throughout the space.

• Operates in both heating and cooling modes.
• Built-in condensate lift mechanism included.
• Equipped with a washable filter for easy maintenance.

Product Highlights

This ceiling cassette unit is ideal for those looking to optimize their indoor climate with advanced technology and reliability.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PLA-AE24NL

Technical Specifications

• Unit Type: Ceiling Cassette
• Product Line: P-Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Unit Size: 24,000 BTU
• Refrigerant Type: R-454B
• Cooling Capacity: 24000 BTU
• Heating Capacity: 29000 BTU
• SEER2: 24.7
• EER2: 13.7
• Energy Star Certified: Yes
• Cooling Minimum Temperature: 0 F
• Noise Level Cooling: 28-36 dB(A)
• Noise Level Heating: 28-36 dB(A)
• Dimensions: W 33 1/16 x 33 1/16 x 10 3/16
• Installation Location: Indoor
• Moisture Removal: 4 Pints/Hour
• Maximum Air Flow: 810 CFM
• Minimum Air Flow: 530 CFM
• Voltage: 208/230 Volts
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Weight: 57 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes

Product Description

The Mitsubishi Electric PUY-AH24NL is a cooling-only outdoor unit intended for single-zone applications. This outdoor unit is part of the reputable Mitsubishi P-Series, ideal for light commercial use. It operates using R454B refrigerant and is equipped with an INVERTER-driven compressor for capacity adjustment. This unit provides effective low ambient cooling and maintains continuous cooling operation.

• Single-zone cooling design
• INVERTER-driven compressor technology
• Corrosion-resistant with Blue Fin coating

Product Highlights

Product Information

Standard Information

• Model Number: PUY-AH24NL
• Product Line: Mitsubishi P-Series

Technical Specifications

• Unit Type: 2 Ton Single Zone Unit
• Operating Mode: Cooling Only
• Number of Zones: 1
• Unit Capacity: 24,000 BTU
• Refrigerant Type: R454B
• Cooling Capacity at 95F Maximum: 24,500 Btu/h
• SEER2: 21.5
• Dimensions: 46-1/16 x 11-5/8 x 14-3/8

Product Description

The Mitsubishi PLP-41EAEU is a grille designed for the PLFY-EP and PLA-7 series indoor units. It serves as a crucial component in ensuring proper airflow and maintaining optimal conditions in ductless systems.

• Compatible with PLFY-EP and PLA-7 series indoor units
• Made by Mitsubishi, a trusted brand in HVAC solutions
• Lightweight yet durable construction for long-term use

Product Highlights

This grille is essential for efficient operation and air distribution in Mitsubishi ductless systems.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: PLP-41EAEU

Technical Specifications

• Weight: 15.4 pounds
• Height: 4.7 inches
• Length: 38.2 inches
• Width: 39.4 inches
• Cubic Measurement: 4.0937
• Dimensional Weight: 54
• Country of Origin: Thailand
• Tier: P-Series
