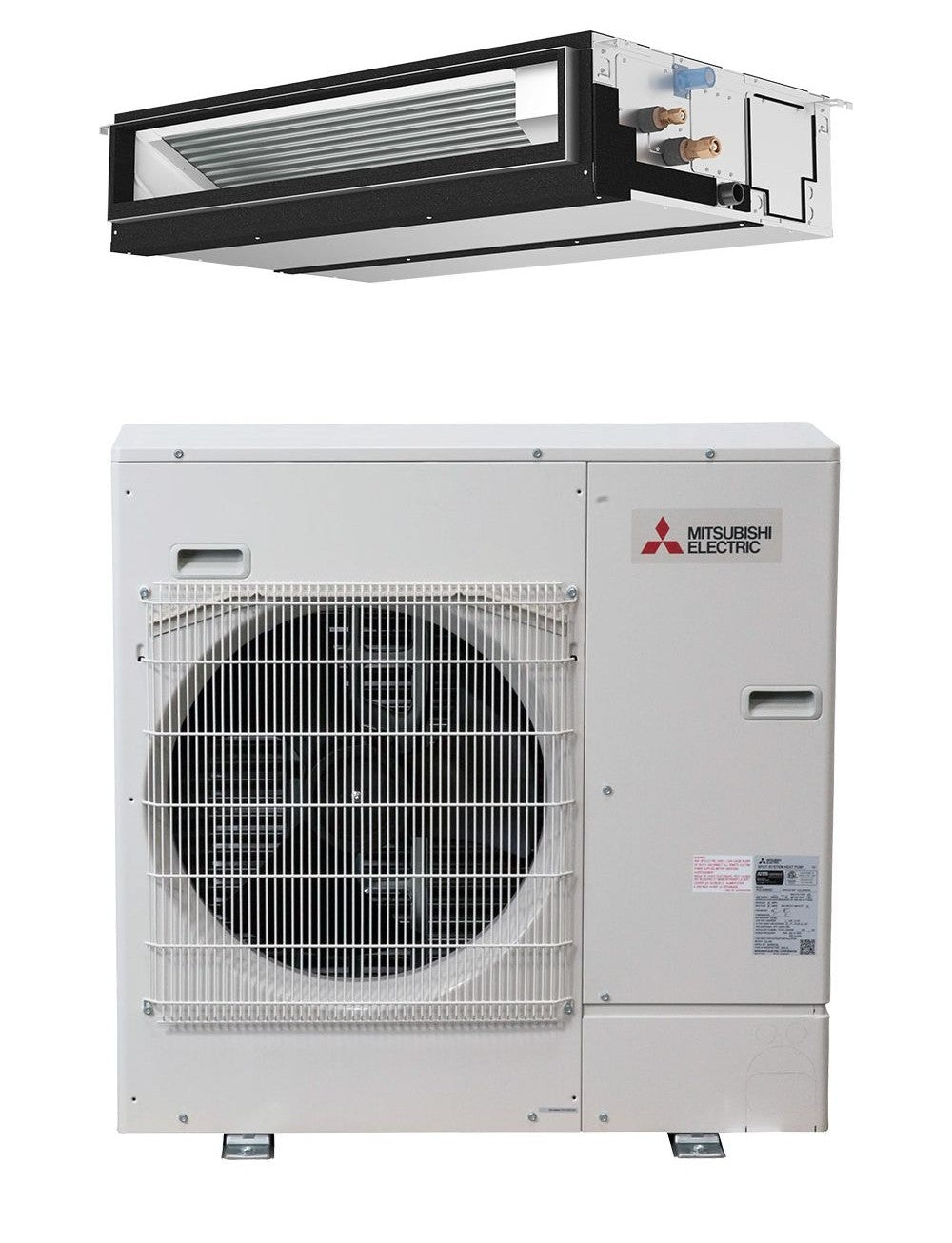

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE LOW AMBIENT COOLING-ONLY SYSTEMS PUY-AH24NL+PEAD-AA24NL - BTU 24000 - SEER 19.6 - R454B

Product Description

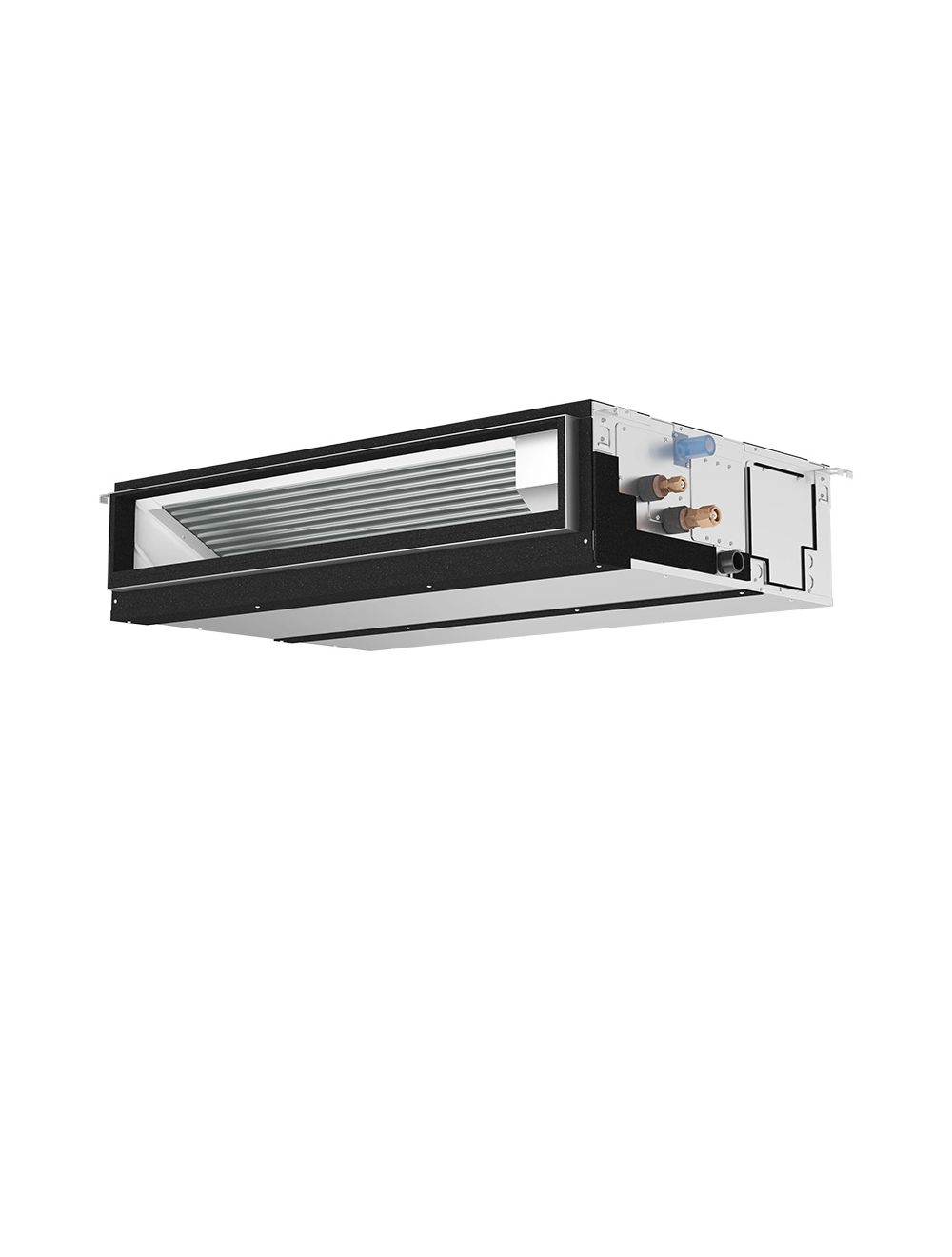

The Mitsubishi Electric PEAD-AA24NL is a ducted indoor unit ideal for residential and light commercial use. It is part of the Mid Static intelli-AIR series and is suitable for small homes or larger settings like offices and restaurants. This horizontal unit distributes heated or cooled air through concealed ductwork, making it suitable for multiple rooms or open layouts.

Installation is designed to be unobtrusive, fitting within attics, ceilings, or under floors. The unit operates quietly and, as a heat pump, it adjusts its power consumption to maintain the desired temperature.

• Built-in condensate lift mechanism, max height of twenty-seven and nine-sixteenths inches
• Wide external static pressure range from zero point fourteen to zero point sixty inches WG
• Concealed installation with short duct runs

Product Highlights

This indoor unit effectively manages airflow in various spaces while remaining discreet.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: PEAD-AA24NL

Technical Specifications

• Dimensions: forty-three and five-sixteenths inches W x twenty-eight and seven-eighths inches D x nine and seven-eighths inches H

Product Description

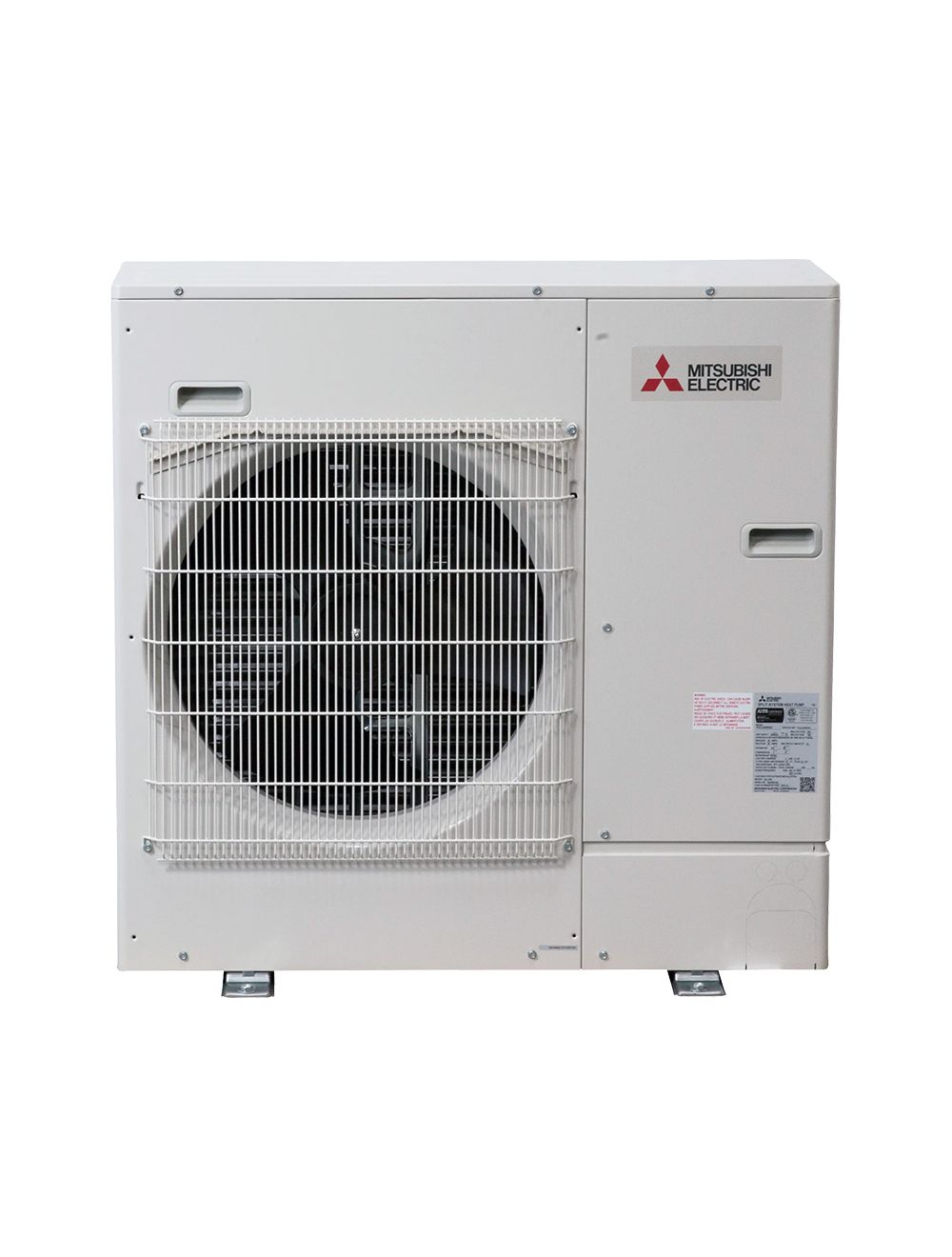

The Mitsubishi Electric PUY-AH24NL is a cooling-only outdoor unit intended for single-zone applications. This outdoor unit is part of the reputable Mitsubishi P-Series, ideal for light commercial use. It operates using R454B refrigerant and is equipped with an INVERTER-driven compressor for capacity adjustment. This unit provides effective low ambient cooling and maintains continuous cooling operation.

• Single-zone cooling design
• INVERTER-driven compressor technology
• Corrosion-resistant with Blue Fin coating

Product Highlights

Product Information

Standard Information

• Model Number: PUY-AH24NL
• Product Line: Mitsubishi P-Series

Technical Specifications

• Unit Type: 2 Ton Single Zone Unit
• Operating Mode: Cooling Only
• Number of Zones: 1
• Unit Capacity: 24,000 BTU
• Refrigerant Type: R454B
• Cooling Capacity at 95F Maximum: 24,500 Btu/h
• SEER2: 21.5
• Dimensions: 46-1/16 x 11-5/8 x 14-3/8
