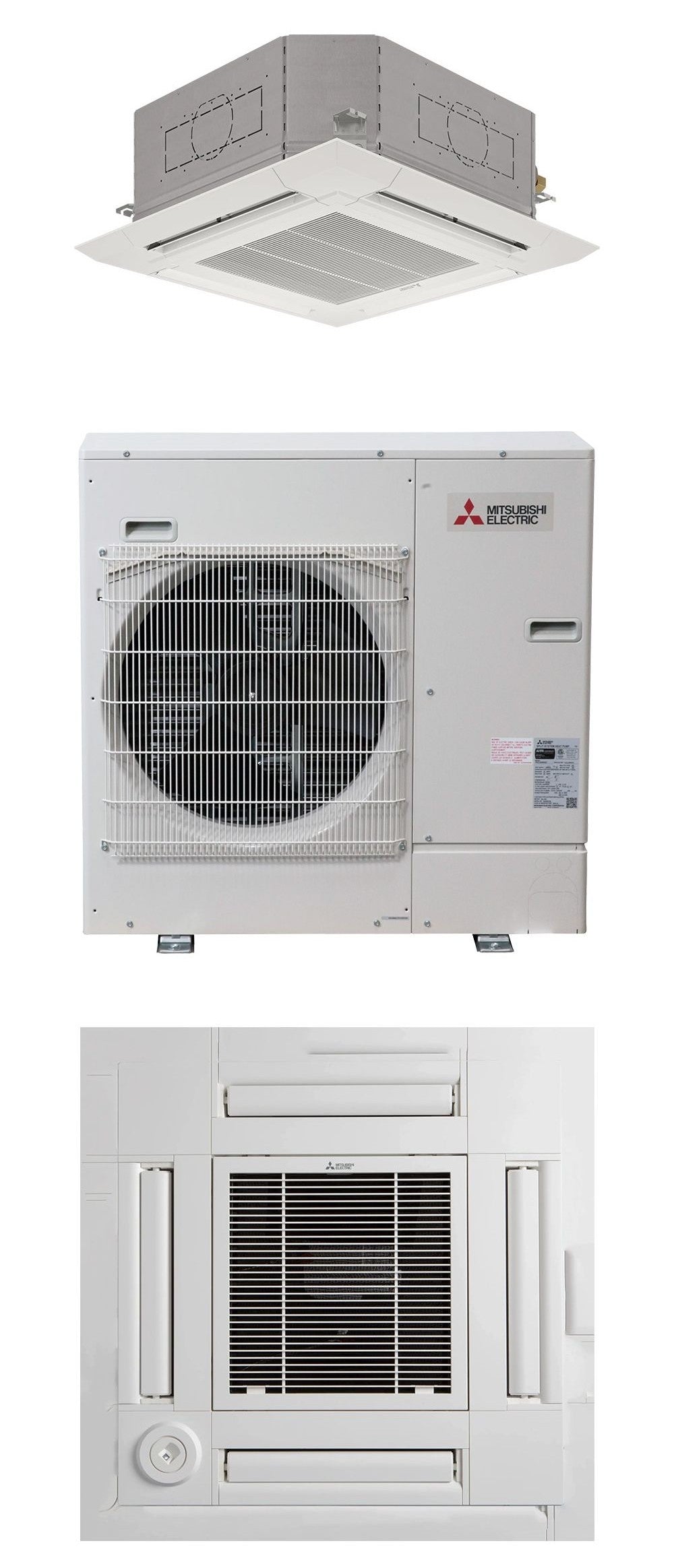

This UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS includes
PLA-AE36NL & PUZ-AK36NL & PLP-41EAEU

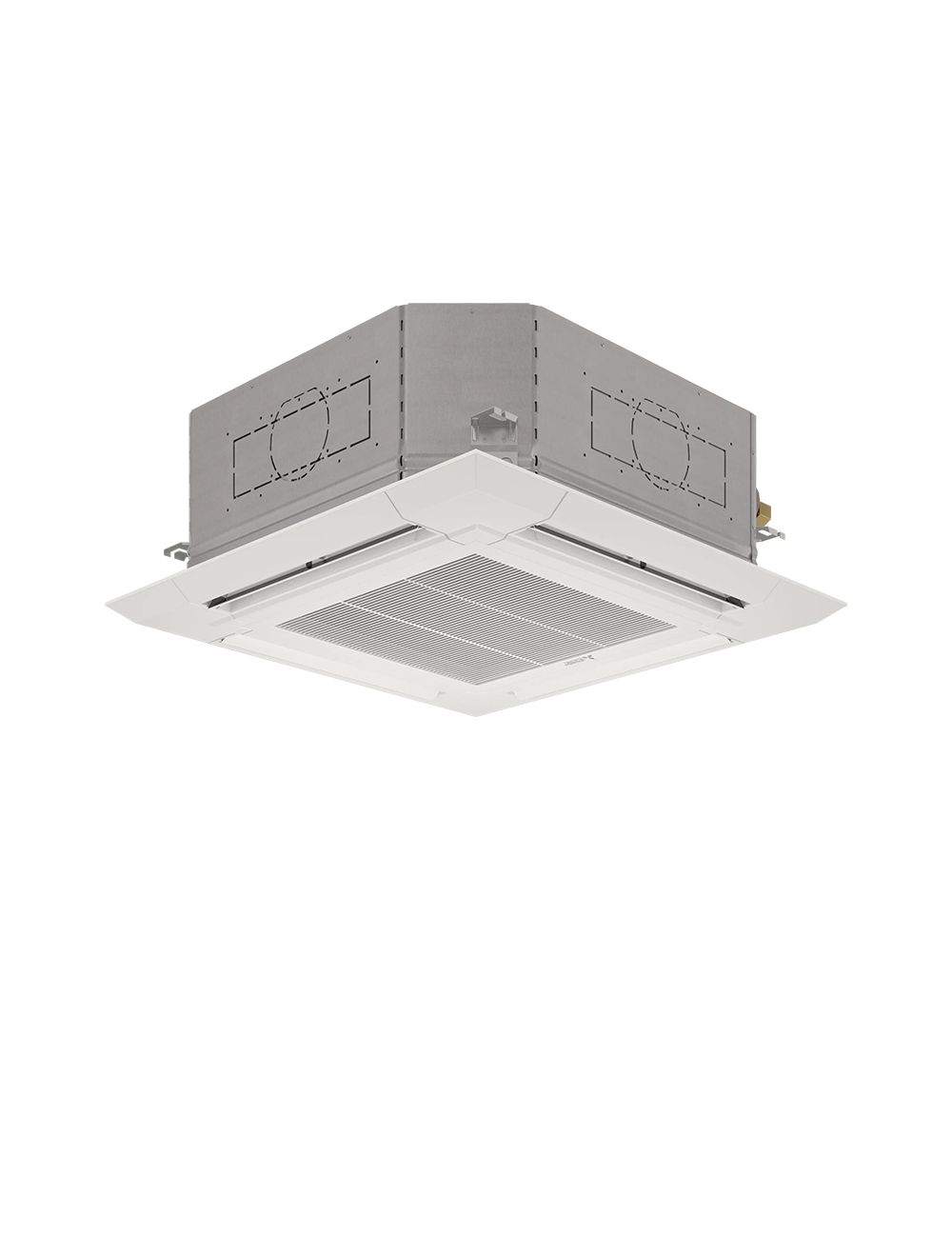

Product DescriptionThe Mitsubishi Electric PLA-AE36NL is a ceiling cassette system ideal for both residential and commercial use. This system effectively provides heating and cooling. The indoor unit is designed for a seamless installation in ceilings, offering a clean look. The outdoor unit is built to ensure reliable performance. This setup is perfect for various environments like retail shops, classrooms, and offices.
- Ceiling cassette design for easy integration.
- Heating and cooling capabilities.
- Suitable for multiple environments.
Product Highlights
This system is designed for convenient installation and effective climate control.Product Information
Standard Information
-
Brand: Mitsubishi Electric
-
MPN: PLA-AE36NL
Technical Specifications
-
Unit Type: Ceiling Cassette
-
Product Line: P-Series
-
Operating Mode: Cooling & Heating
-
Number of Zones: 1
-
Unit Size: 36,000 BTU
-
Refrigerant Type: R-454B
-
Indoor Unit: PLA-AE36NL
-
Outdoor Unit: PUZ-AK36NL
-
Cooling Capacity: 36,000 BTU
-
Heating Capacity: 40,000 BTU
-
SEER2: 23.3
-
EER2: 13.7
-
HSPF2: 9.8
-
Energy Star Certified: Yes
-
Room Cooling Capacity up to: 1500 sq ft
-
Noise Level: Cooling: 32-44 dB(A), Heating: 32-44 dB(A)
-
Dimensions: 33 1/16 x 33 1/16 x 10 3/16 inches
-
Voltage: 208/230 Volts
-
Weight: 281 Pounds
-
AHRI Certified: Yes
Product Description

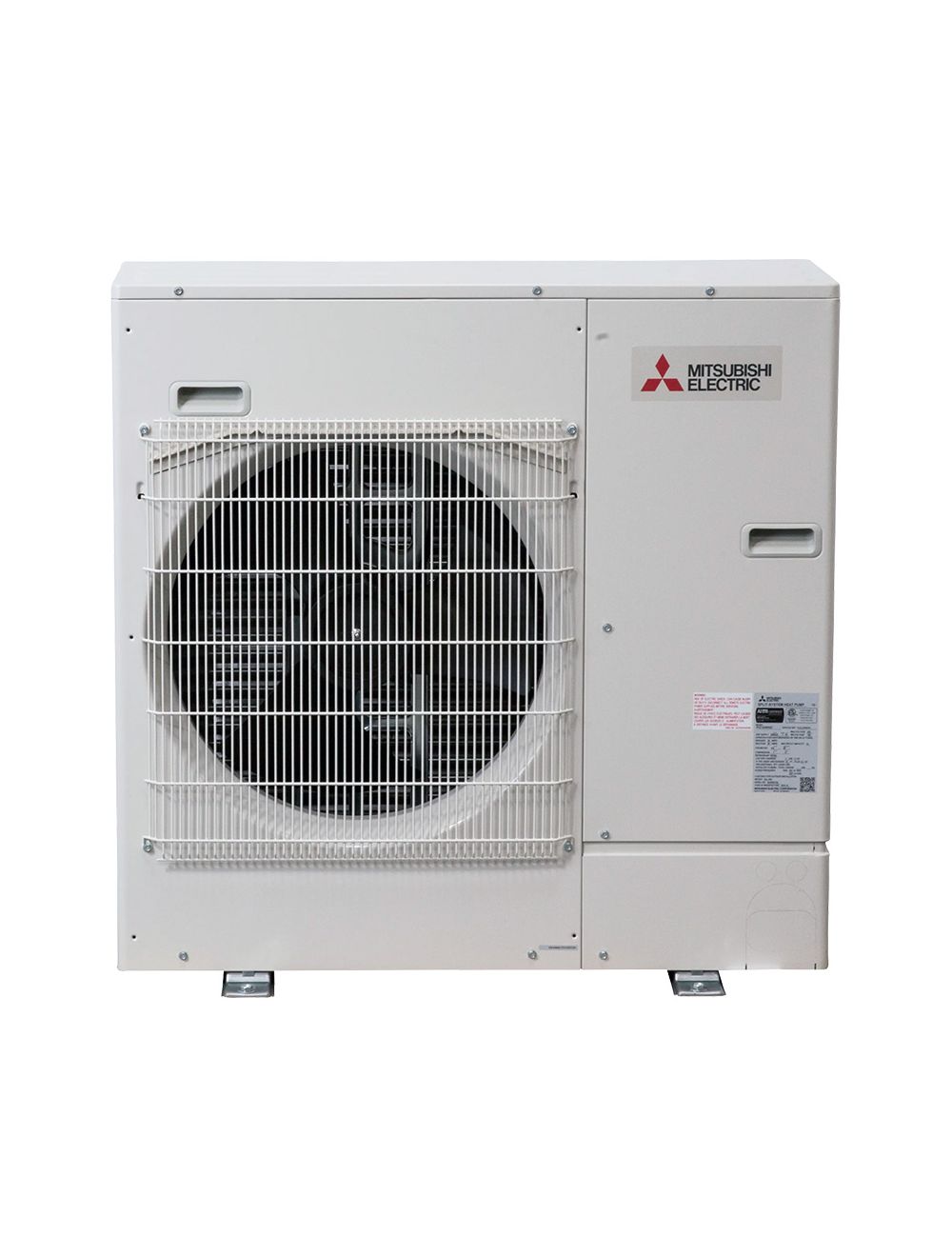

The Mitsubishi Electric PUZ-AK36NL is an outdoor unit designed for single-zone cooling and heating. It belongs to the P-Series, ideal for commercial applications. This unit uses R454B refrigerant and pairs with a concealed duct indoor unit. It offers both cooling and heating capabilities and operates effectively in low ambient conditions.
- Part of Mitsubishi's P-Series for commercial applications.
- Utilizes R454B refrigerant.
- Designed for single-zone cooling and heating.
Product Highlights
The PUZ-AK36NL maintains performance even in challenging environments, ensuring reliable comfort.
Product Information
Standard Information
-
Product Line: P-Series
-
Operating Mode: Cooling & Heating
Technical Specifications
-
Number of Zones: 1
-
Refrigerant Type: R454B
-
Unit Capacity: 36,000 BTU
-
Cooling Capacity: 36,000 BTU
-
Heating Capacity: 40,000 BTU
-
SEER2: 22.1
-
EER2: 12.5
-
HSPF2: 9.6
-
Voltage: 208/230 Volts
-
Phase: 1
-
Frequency: 60 Hz
-
Minimum Outdoor Temperature for Heating: -4 F
-
Minimum Outdoor Temperature for Cooling: 23 F
-
Product Weight: 306 Pounds
-
Product Height: 52 2/3 Inches
-
Product Width: 41 17/48 Inches
-
Product Depth: 14 Inches
-
Low Ambient Heating: Yes
-
AHRI Certified: Yes
-
Maximum Line Length: 165 Feet
-
Moisture Removal: 4.4 Pints/Hour
-
Maximum Air Flow: 1201 CFM
-
Minimum Air Flow: 848 CFM
-
Minimum Sound Level: 34 dB
-
Maximum Sound Level: 42 dB
Product Description

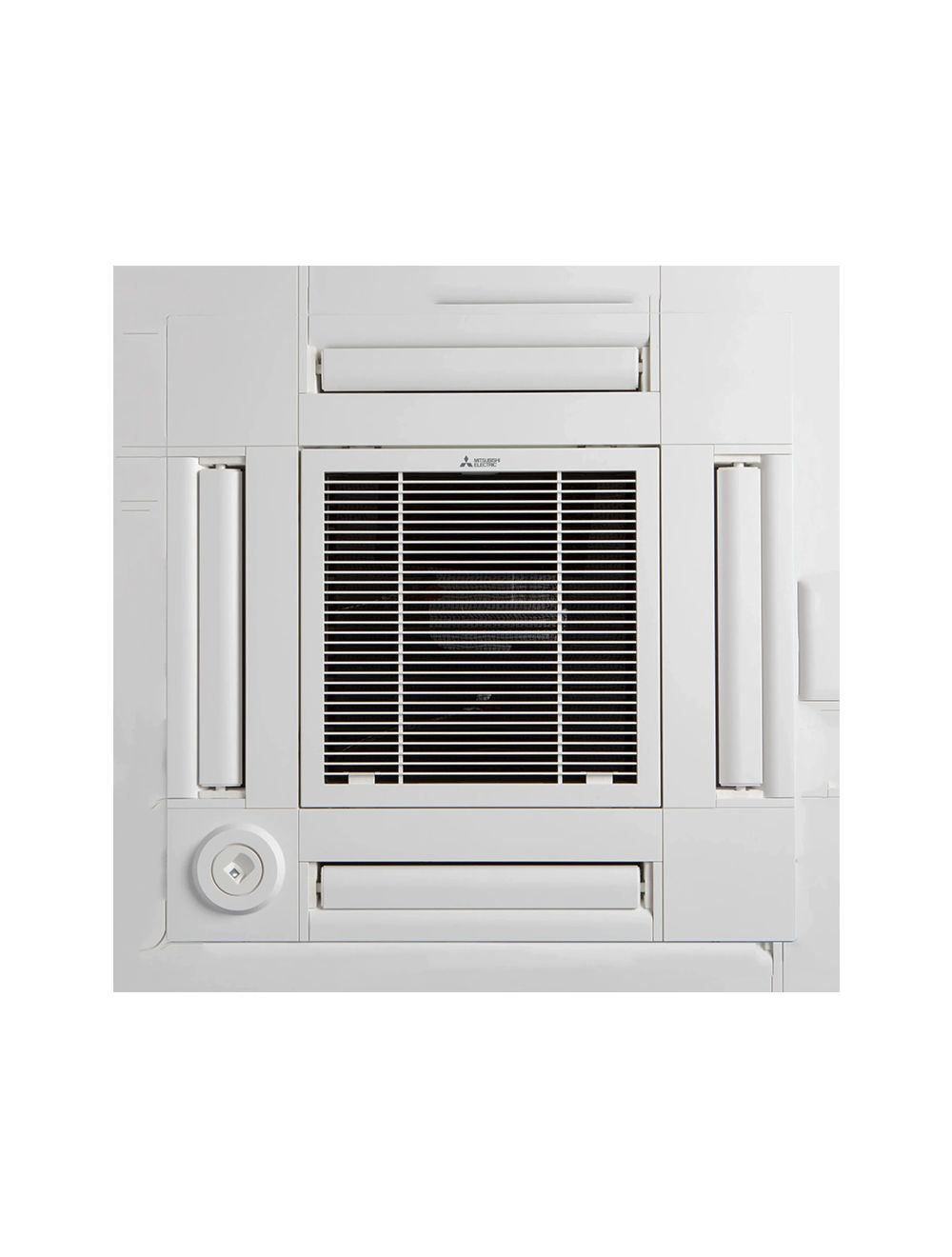

The Mitsubishi PLP-41EAEU is a grille designed for the PLFY-EP and PLA-7 series indoor units. It serves as a crucial component in ensuring proper airflow and maintaining optimal conditions in ductless systems.
- Compatible with PLFY-EP and PLA-7 series indoor units
- Made by Mitsubishi, a trusted brand in HVAC solutions
- Lightweight yet durable construction for long-term use
Product Highlights
This grille is essential for efficient operation and air distribution in Mitsubishi ductless systems.
Product Information
Standard Information
-
Brand: Mitsubishi
-
Part Number: PLP-41EAEU
Technical Specifications
-
Weight: 15.4 pounds
-
Height: 4.7 inches
-
Length: 38.2 inches
-
Width: 39.4 inches
-
Cubic Measurement: 4.0937
-
Dimensional Weight: 54
-
Country of Origin: Thailand
-
Tier: P-Series
