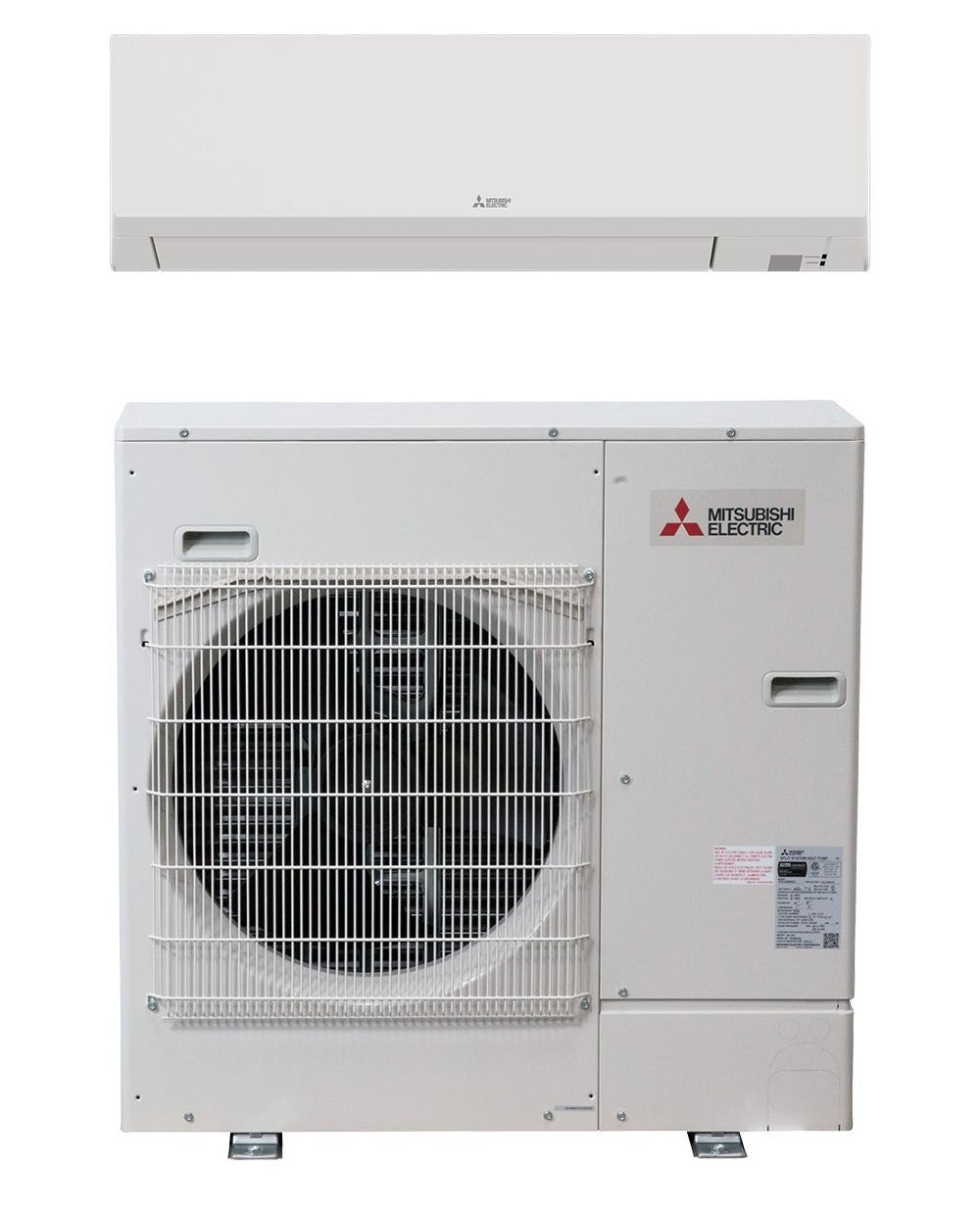

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK36NL+PKA-AK36NL - BTU 36000 - SEER 20.3 - R454B

Product Description

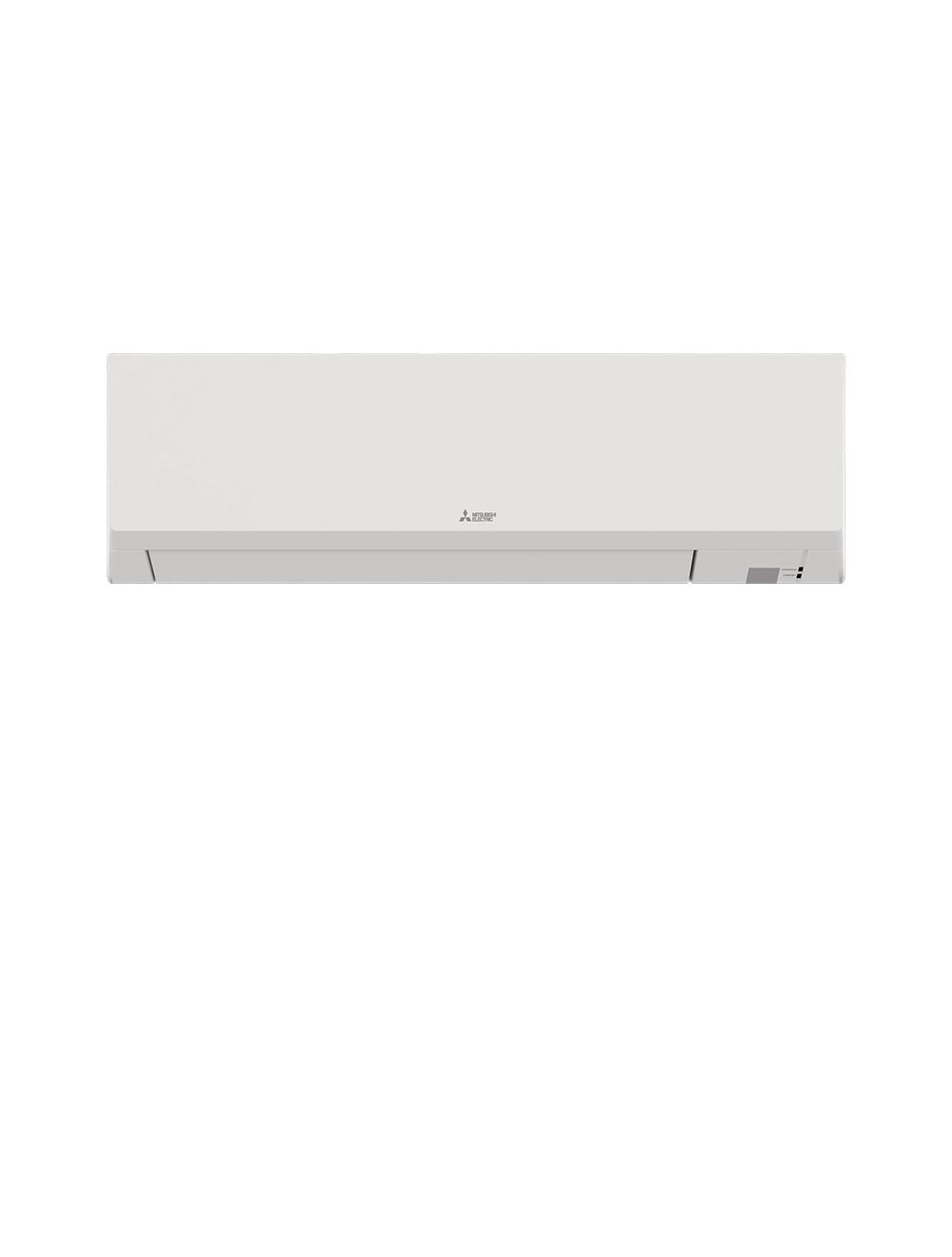

The Mitsubishi Electric PKA-AK36NL is a wall-mounted indoor unit designed for single-zone mini-split systems. It operates efficiently in both heating and cooling modes, utilizing R-454B refrigerant. This unit offers various fan speeds and airflow directions, making it suitable for a wide range of applications.

• Wall mounted unit for single-zone applications.
• Heating and cooling capabilities with adjustable fan speeds.
• Utilizes environmentally friendly R-454B refrigerant.

Product Highlights

This unit is ideal for commercial settings, providing reliable heating and cooling even in low ambient temperatures while maintaining a quiet operation.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AK36NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Refrigerant Type: R-454B
• Cooling Capacity: 33,400 BTU
• Heating Capacity: 40,000 BTU
• Room Capacity: Up to 1,500 sq ft
• Minimum Air Flow: 705 CFM
• Maximum Air Flow: 920 CFM
• Noise Level Cooling: 43-49 dB(A)
• Noise Level Heating: 43-49 dB(A)
• Input Voltage: 208/230 Volts
• Product Dimensions: 46 1/16 x 11 5/8 x 14 3/8 inches
• Product Weight: 46 pounds
• Parts Warranty: 5 Years
• SEER2: 22.1
• EER21: 11.9
• HSPF2: 9.6

Product Description

The Mitsubishi Electric PUZ-AK36NL is an outdoor unit designed for single-zone cooling and heating. It belongs to the P-Series, ideal for commercial applications. This unit uses R454B refrigerant and pairs with a concealed duct indoor unit. It offers both cooling and heating capabilities and operates effectively in low ambient conditions.

• Part of Mitsubishi's P-Series for commercial applications.
• Utilizes R454B refrigerant.
• Designed for single-zone cooling and heating.

Product Highlights

The PUZ-AK36NL maintains performance even in challenging environments, ensuring reliable comfort.

Product Information

Standard Information

• Product Line: P-Series
• Operating Mode: Cooling & Heating

Technical Specifications

• Number of Zones: 1
• Refrigerant Type: R454B
• Unit Capacity: 36,000 BTU
• Cooling Capacity: 36,000 BTU
• Heating Capacity: 40,000 BTU
• SEER2: 22.1
• EER2: 12.5
• HSPF2: 9.6
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 23 F
• Product Weight: 306 Pounds
• Product Height: 52 2/3 Inches
• Product Width: 41 17/48 Inches
• Product Depth: 14 Inches
• Low Ambient Heating: Yes
• AHRI Certified: Yes
• Maximum Line Length: 165 Feet
• Moisture Removal: 4.4 Pints/Hour
• Maximum Air Flow: 1201 CFM
• Minimum Air Flow: 848 CFM
• Minimum Sound Level: 34 dB
• Maximum Sound Level: 42 dB
