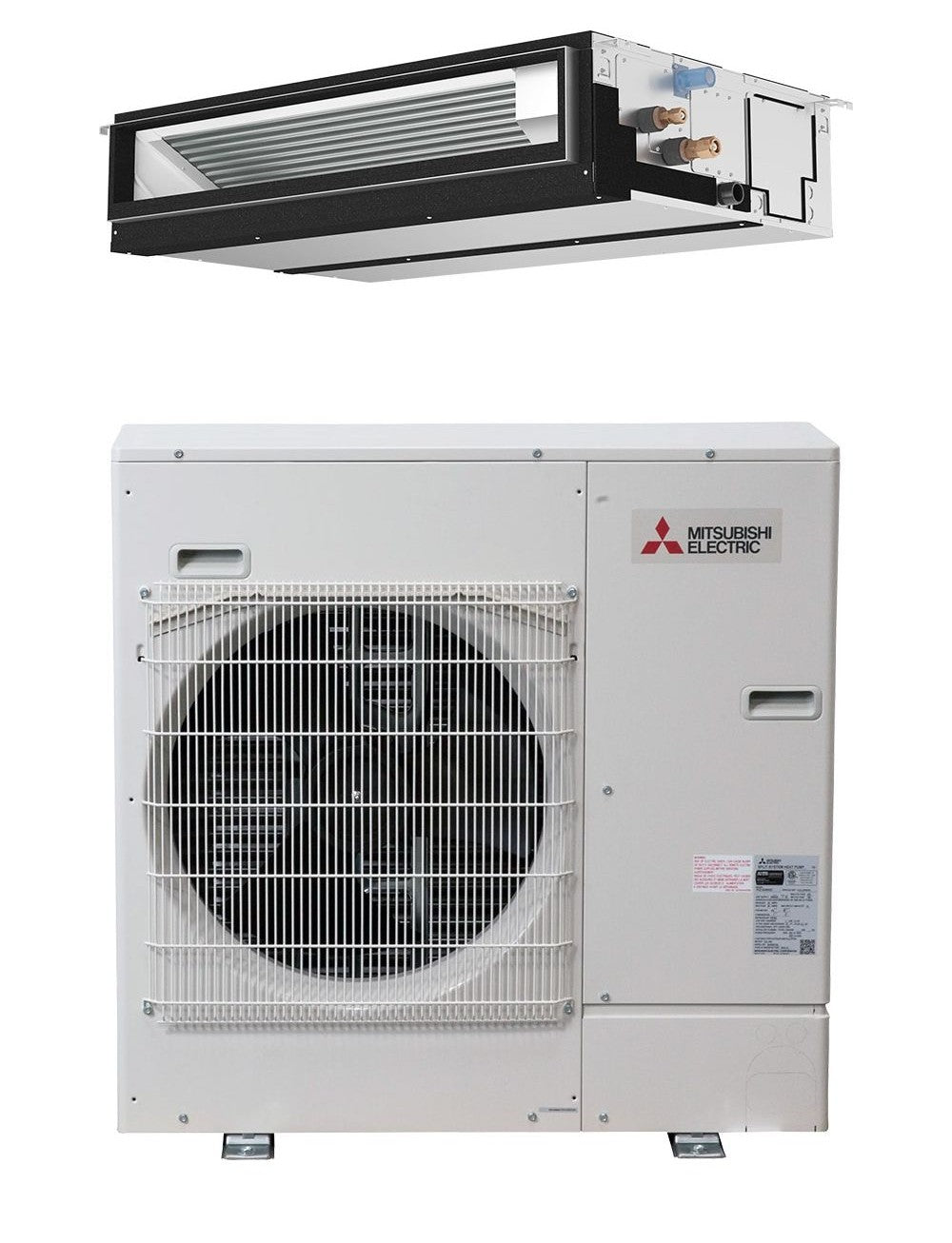

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK36NL+PEAD-AA36NL - BTU 36000 - SEER 20.1 - R454B

Product Description

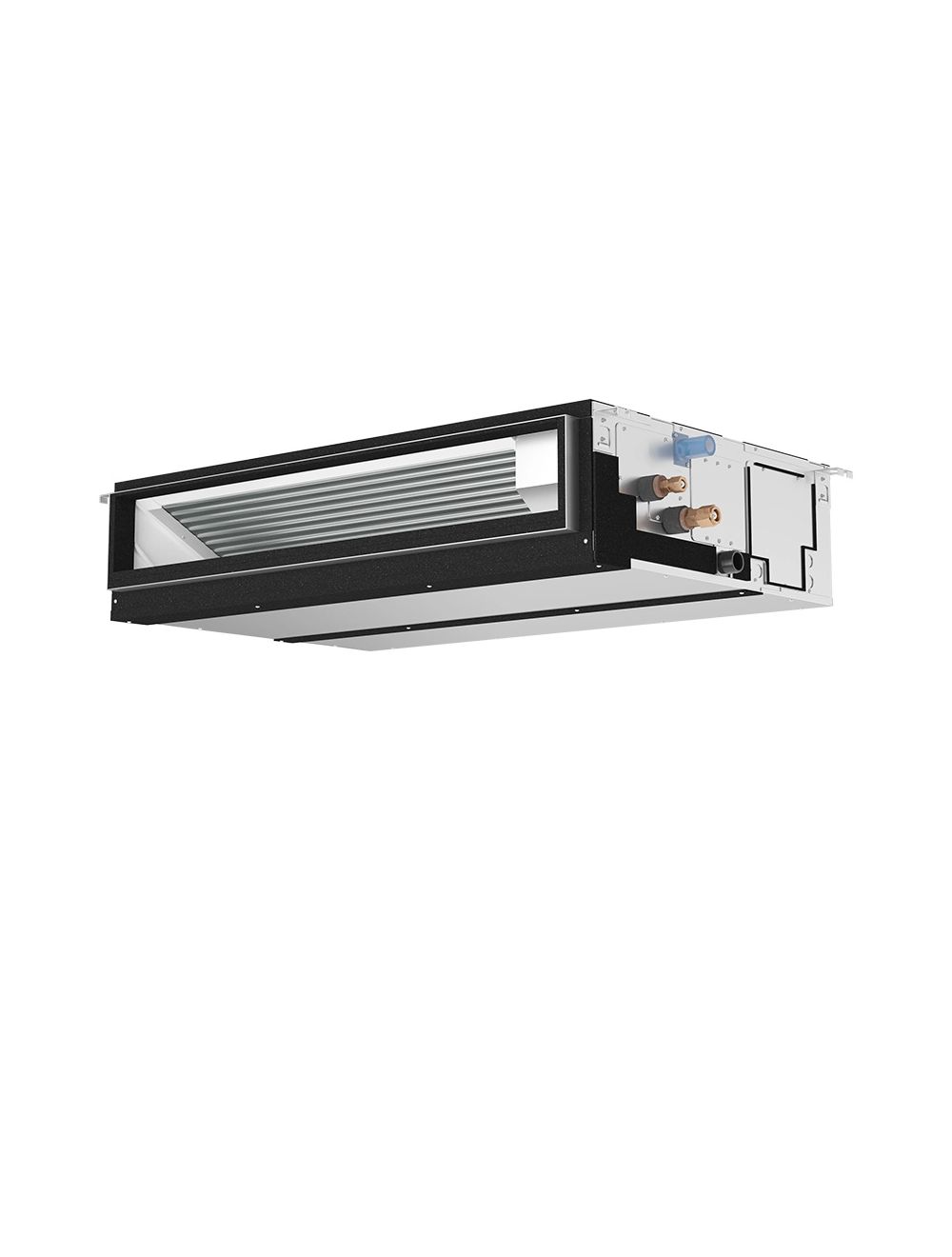

The Mitsubishi Electric PEAD-AA36NL is a concealed duct mini split indoor unit. It is designed for both single-zone and multi-zone configurations. This unit fits in short-run ducting and operates in heating and cooling modes. The PEAD-AA36NL uses R-454B refrigerant and offers multiple fan speeds, making it versatile for various indoor environments.

• Concealed duct design for unobtrusive installation.
• Compatible with both single-zone and multi-zone systems.
• Utilizes R-454B refrigerant.

Product Highlights

This unit offers effective air management for heating and cooling needs.

Product Information

Standard Information

• Product Line: P-Series
• Unit Type: Mid-Static Horizontal Ducted

Technical Specifications

• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 33,000 BTU
• Heating Capacity: 34,000 BTU
• Moisture Removal: 4.4 Pints/Hour
• Maximum Air Flow: 1,201 CFM
• Minimum Air Flow: 848 CFM
• Sound Level: 34 dB to 42 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9 7/8 Inches
• Product Width: 55 1/8 Inches
• Product Depth: 28 7/8 Inches
• Product Weight: 82 Pounds
• Installation Location: Indoor
• ETL Listed: Yes
• AHRI Certified: Yes

Product Description

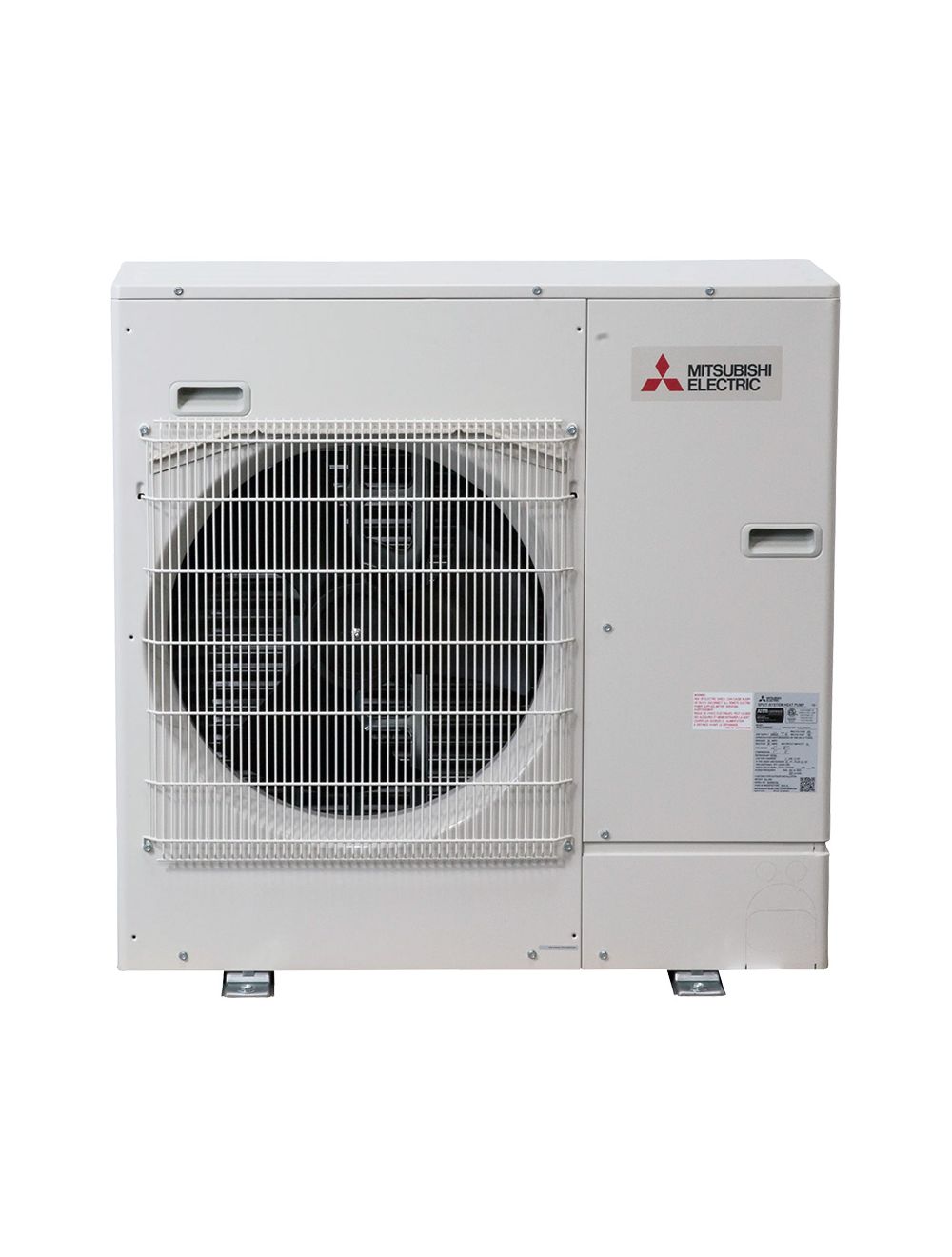

The Mitsubishi Electric PUZ-AK36NL is an outdoor unit designed for single-zone cooling and heating. It belongs to the P-Series, ideal for commercial applications. This unit uses R454B refrigerant and pairs with a concealed duct indoor unit. It offers both cooling and heating capabilities and operates effectively in low ambient conditions.

• Part of Mitsubishi's P-Series for commercial applications.
• Utilizes R454B refrigerant.
• Designed for single-zone cooling and heating.

Product Highlights

The PUZ-AK36NL maintains performance even in challenging environments, ensuring reliable comfort.

Product Information

Standard Information

• Product Line: P-Series
• Operating Mode: Cooling & Heating

Technical Specifications

• Number of Zones: 1
• Refrigerant Type: R454B
• Unit Capacity: 36,000 BTU
• Cooling Capacity: 36,000 BTU
• Heating Capacity: 40,000 BTU
• SEER2: 22.1
• EER2: 12.5
• HSPF2: 9.6
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 23 F
• Product Weight: 306 Pounds
• Product Height: 52 2/3 Inches
• Product Width: 41 17/48 Inches
• Product Depth: 14 Inches
• Low Ambient Heating: Yes
• AHRI Certified: Yes
• Maximum Line Length: 165 Feet
• Moisture Removal: 4.4 Pints/Hour
• Maximum Air Flow: 1201 CFM
• Minimum Air Flow: 848 CFM
• Minimum Sound Level: 34 dB
• Maximum Sound Level: 42 dB
