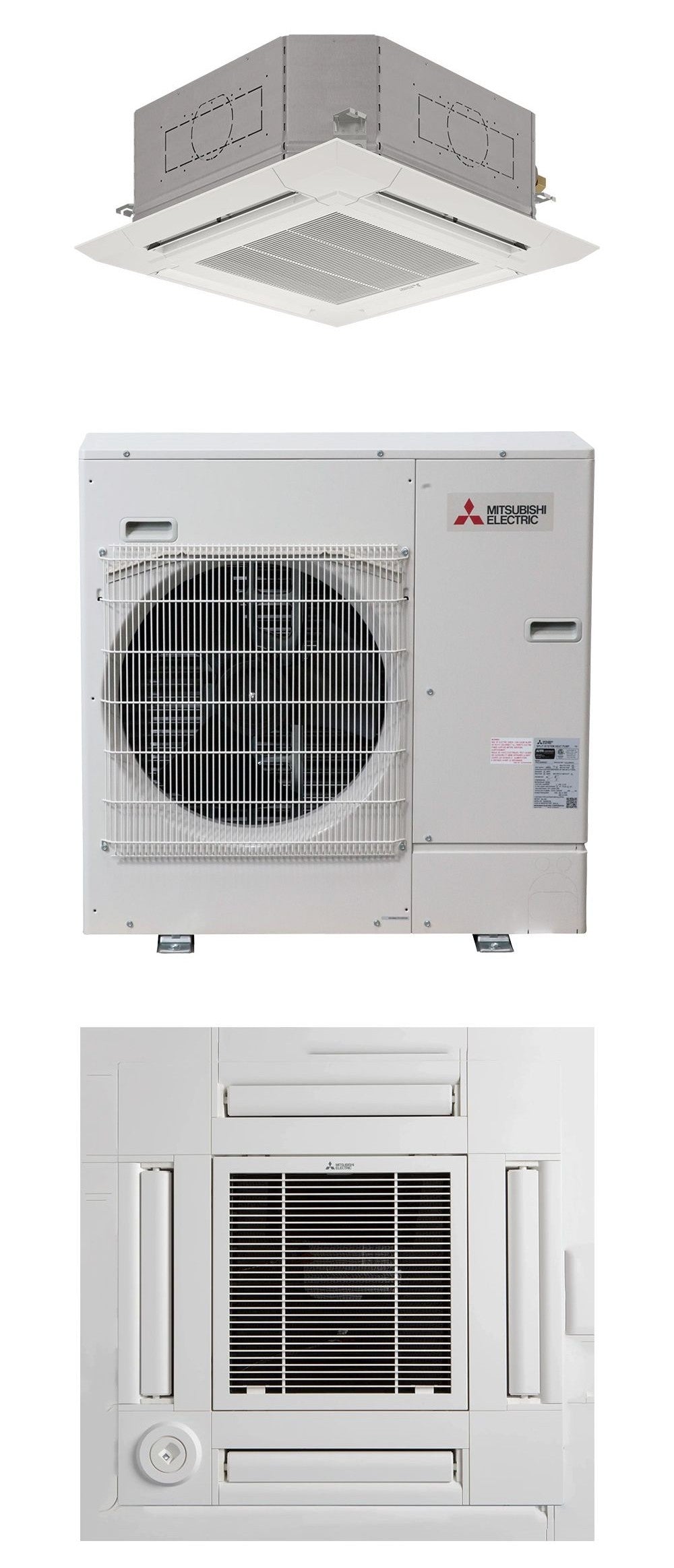

MITSUBISHI ELECTRIC UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS PUZ-AK18NL+PLA-AE18NL+PLP-41EAEU - BTU 18000 - SEER 24.7 - R454B

Product Description

The Mitsubishi Electric PLA-AE18NL is a ceiling cassette unit suitable for mini-split systems. It provides both heating and cooling features and is designed for discreet installation in ceilings. The unit includes a 3D i-see Sensor that adjusts airflow based on room temperature. This makes it ideal for various environments, including commercial and residential spaces.

• Compatible with single or multi-zone systems.
• Equipped with a condensate removal system.
• Heating and cooling functionality.

Product Highlights

The PLA-AE18NL offers flexible installation options and advanced technology for efficient temperature control.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PLA-AE18NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Ceiling Cassette
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 18000 BTU
• Heating Capacity: 23000 BTU
• Moisture Removal: 3.8 Pints/Hour
• Maximum Air Flow: 600 CFM
• Minimum Air Flow: 460 CFM
• Minimum Sound Level: 28 dB
• Maximum Sound Level: 32 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 10 3/16 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 33 1/16 Inches
• Product Weight: 46 Pounds
• Grille: Included
• Required Grille Model: PLP-41EAEU
• ETL Listed: Yes
• AHRI Certified: Yes
• SEER2: 24.7
• EER2: 13.7
• Energy Star Certified: Yes
• Noise Level: Heating: 28-32 dB(A)
• External Finish Color: White Munsell

Product Description

The Mitsubishi Electric PUZ-AK18NL is an outdoor mini-split heat pump condenser designed for single-zone applications. It operates on 208/230V and uses R-454B refrigerant. This unit features an inverter-driven compressor which adjusts capacity to maintain stable temperatures in various conditions.

• Twin rotary compressor for enhanced performance.
• Continuous operation in cooling mode for up to 24 hours.
• Efficient cooling even at low ambient temperatures, down to 0°F.

Product Highlights

This unit is built with Blue Fin coating for corrosion resistance, making it ideal for coastal areas. It is pre-charged with refrigerant, simplifying installation for specified line lengths.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AK18NL

Technical Specifications

• Type: Outdoor Unit
• Series: PUZ-AH-NL
• Voltage: 208/230 V
• Amperage: 16 A
• Frequency: 60 Hz
• Refrigerant: R-454B
• Compressor: Twin Rotary Compressor
• Unit Capacity: 18,000 BTU
• Cooling BTU/hr: 4700 to 18500
• Heating BTU/hr: 4200 to 22000
• Cooling Wattage: 1590 W
• Heating Wattage: 1900 W
• EER Rating: 11.7
• SEER: 20.1
• HSPF: 8.8
• Cooling CFM Rating: 1590 cfm
• Cooling Operating Temperature: 23 to 115 deg F
• Heating Operating Temperature: -4 to 70 deg F
• Dimensions: 34-19/64 W x 11-13/16 D x 24-13/16 H
• Color: Ivory

Product Description

The Mitsubishi PLP-41EAEU is a grille designed for the PLFY-EP and PLA-7 series indoor units. It serves as a crucial component in ensuring proper airflow and maintaining optimal conditions in ductless systems.

• Compatible with PLFY-EP and PLA-7 series indoor units
• Made by Mitsubishi, a trusted brand in HVAC solutions
• Lightweight yet durable construction for long-term use

Product Highlights

This grille is essential for efficient operation and air distribution in Mitsubishi ductless systems.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: PLP-41EAEU

Technical Specifications

• Weight: 15.4 pounds
• Height: 4.7 inches
• Length: 38.2 inches
• Width: 39.4 inches
• Cubic Measurement: 4.0937
• Dimensional Weight: 54
• Country of Origin: Thailand
• Tier: P-Series
