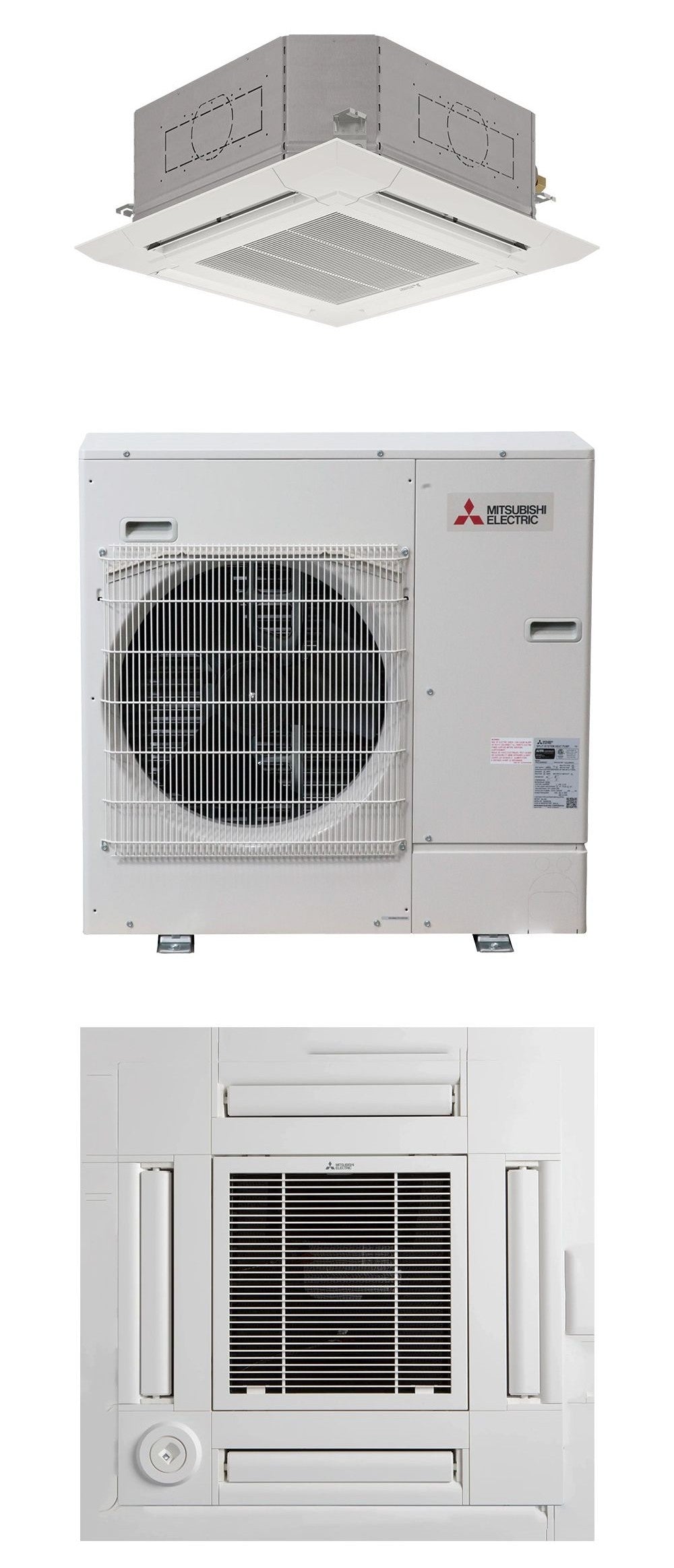

This UNIVERSAL SINGLE-ZONE HEAT-PUMP SYSTEMS includes
PLA-AE18NL & PUZ-AK18NL & PLP-41EAEU
Product Description

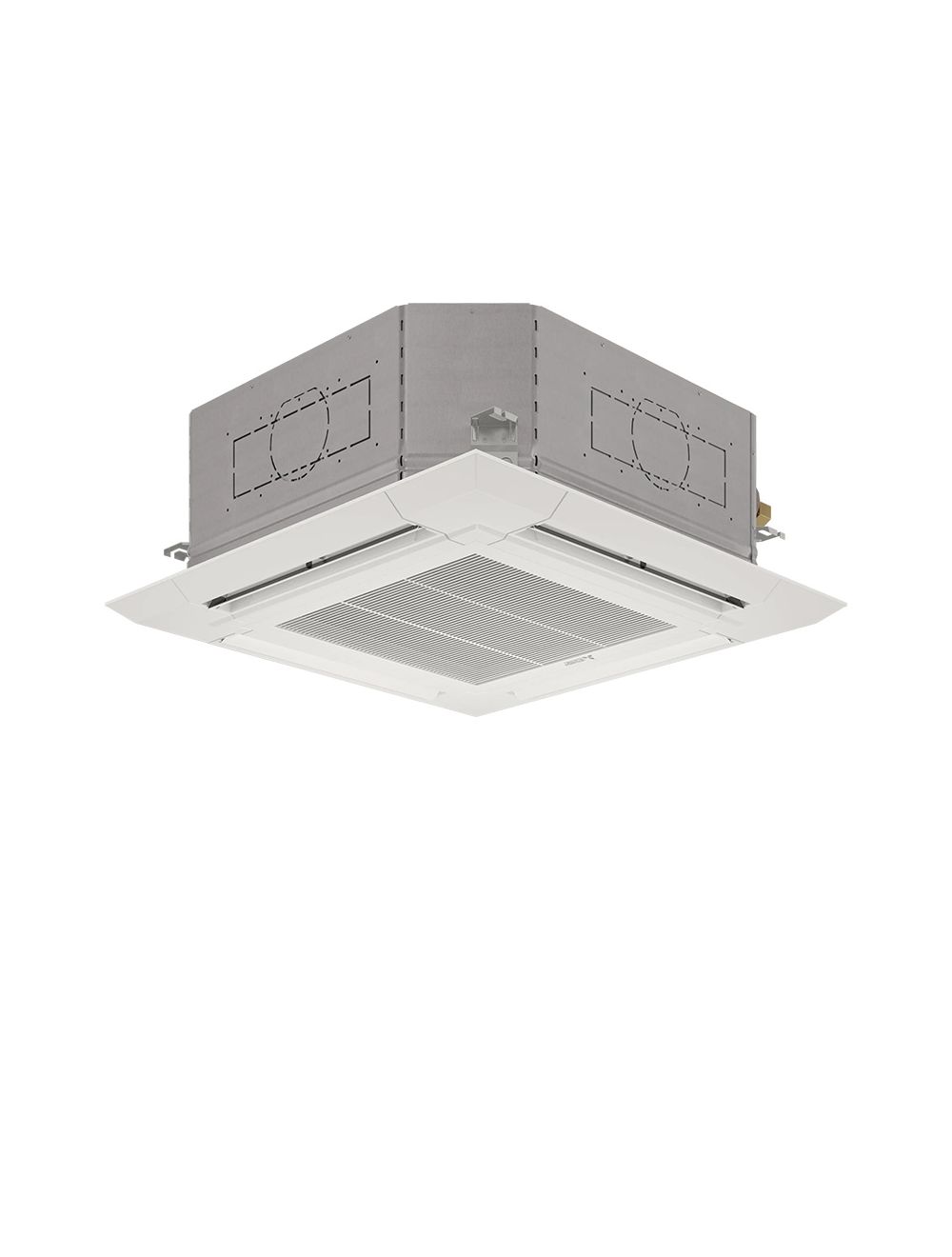

The Mitsubishi Electric PLA-AE18NL is a ceiling cassette unit suitable for mini-split systems. It provides both heating and cooling features and is designed for discreet installation in ceilings. The unit includes a 3D i-see Sensor that adjusts airflow based on room temperature. This makes it ideal for various environments, including commercial and residential spaces.
- Compatible with single or multi-zone systems.
- Equipped with a condensate removal system.
- Heating and cooling functionality.
Product Highlights
The PLA-AE18NL offers flexible installation options and advanced technology for efficient temperature control.
Product Information
Standard Information
-
Brand: Mitsubishi Electric
-
MPN: PLA-AE18NL
Technical Specifications
-
Product Line: P-Series
-
Unit Type: Ceiling Cassette
-
Operating Mode: Heating and Cooling
-
Multi-Zone Compatible: Yes
-
Refrigerant Type: R-454B
-
Cooling Capacity: 18000 BTU
-
Heating Capacity: 23000 BTU
-
Moisture Removal: 3.8 Pints/Hour
-
Maximum Air Flow: 600 CFM
-
Minimum Air Flow: 460 CFM
-
Minimum Sound Level: 28 dB
-
Maximum Sound Level: 32 dB
-
Voltage: 208/230 Volts
-
Phase: 1
-
Frequency: 60 Hz
-
Gas Connection Size: 1/2 Inch
-
Liquid Connection Size: 1/4 Inch
-
Product Height: 10 3/16 Inches
-
Product Width: 33 1/16 Inches
-
Product Depth: 33 1/16 Inches
-
Product Weight: 46 Pounds
-
Grille: Included
-
Required Grille Model: PLP-41EAEU
-
ETL Listed: Yes
-
AHRI Certified: Yes
-
SEER2: 24.7
-
EER2: 13.7
-
Energy Star Certified: Yes
-
Noise Level: Heating: 28-32 dB(A)
-
External Finish Color: White Munsell
Product Description

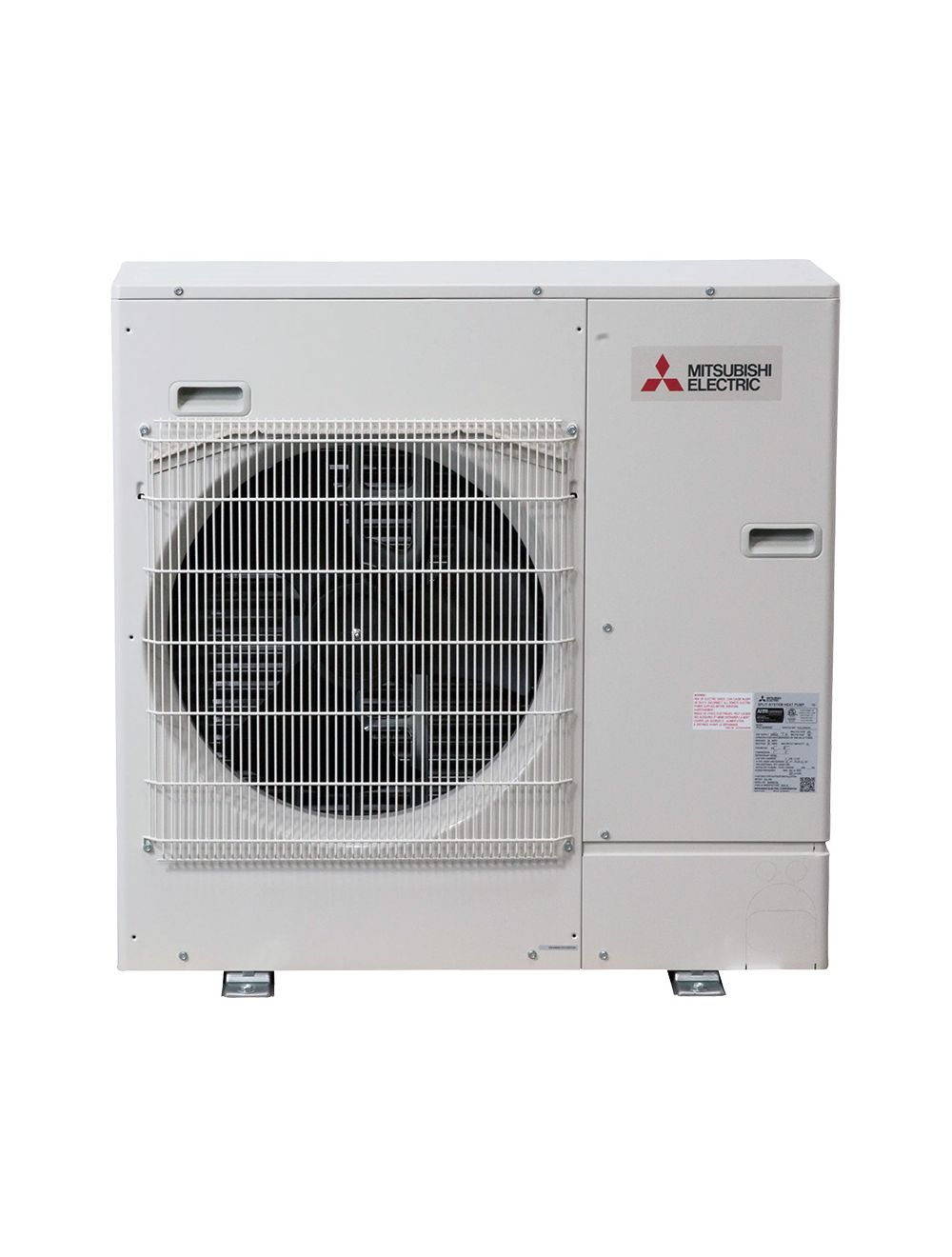

The Mitsubishi Electric PUZ-AK18NL is an outdoor mini-split heat pump condenser designed for single-zone applications. It operates on 208/230V and uses R-454B refrigerant. This unit features an inverter-driven compressor which adjusts capacity to maintain stable temperatures in various conditions.
- Twin rotary compressor for enhanced performance.
- Continuous operation in cooling mode for up to 24 hours.
- Efficient cooling even at low ambient temperatures, down to 0°F.
Product Highlights
This unit is built with Blue Fin coating for corrosion resistance, making it ideal for coastal areas. It is pre-charged with refrigerant, simplifying installation for specified line lengths.
Product Information
Standard Information
-
Brand: Mitsubishi Electric
-
MPN: PUZ-AK18NL
Technical Specifications
-
Type: Outdoor Unit
-
Series: PUZ-AH-NL
-
Voltage: 208/230 V
-
Amperage: 16 A
-
Frequency: 60 Hz
-
Refrigerant: R-454B
-
Compressor: Twin Rotary Compressor
-
Unit Capacity: 18,000 BTU
-
Cooling BTU/hr: 4700 to 18500
-
Heating BTU/hr: 4200 to 22000
-
Cooling Wattage: 1590 W
-
Heating Wattage: 1900 W
-
EER Rating: 11.7
-
SEER: 20.1
-
HSPF: 8.8
-
Cooling CFM Rating: 1590 cfm
-
Cooling Operating Temperature: 23 to 115 deg F
-
Heating Operating Temperature: -4 to 70 deg F
-
Dimensions: 34-19/64 W x 11-13/16 D x 24-13/16 H
-
Color: Ivory
Product Description

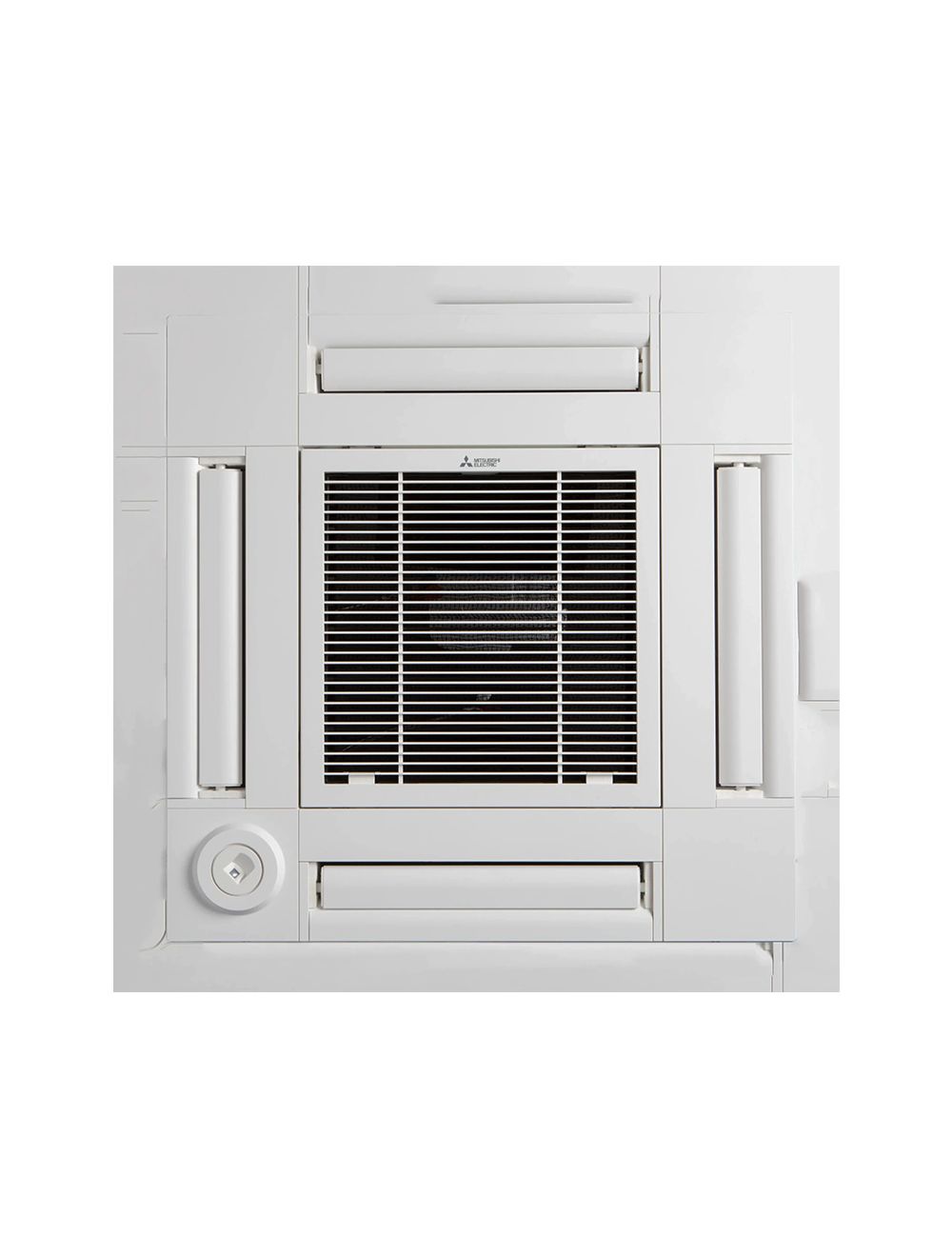

The Mitsubishi PLP-41EAEU is a grille designed for the PLFY-EP and PLA-7 series indoor units. It serves as a crucial component in ensuring proper airflow and maintaining optimal conditions in ductless systems.
- Compatible with PLFY-EP and PLA-7 series indoor units
- Made by Mitsubishi, a trusted brand in HVAC solutions
- Lightweight yet durable construction for long-term use
Product Highlights
This grille is essential for efficient operation and air distribution in Mitsubishi ductless systems.
Product Information
Standard Information
-
Brand: Mitsubishi
-
Part Number: PLP-41EAEU
Technical Specifications
-
Weight: 15.4 pounds
-
Height: 4.7 inches
-
Length: 38.2 inches
-
Width: 39.4 inches
-
Cubic Measurement: 4.0937
-
Dimensional Weight: 54
-
Country of Origin: Thailand
-
Tier: P-Series
